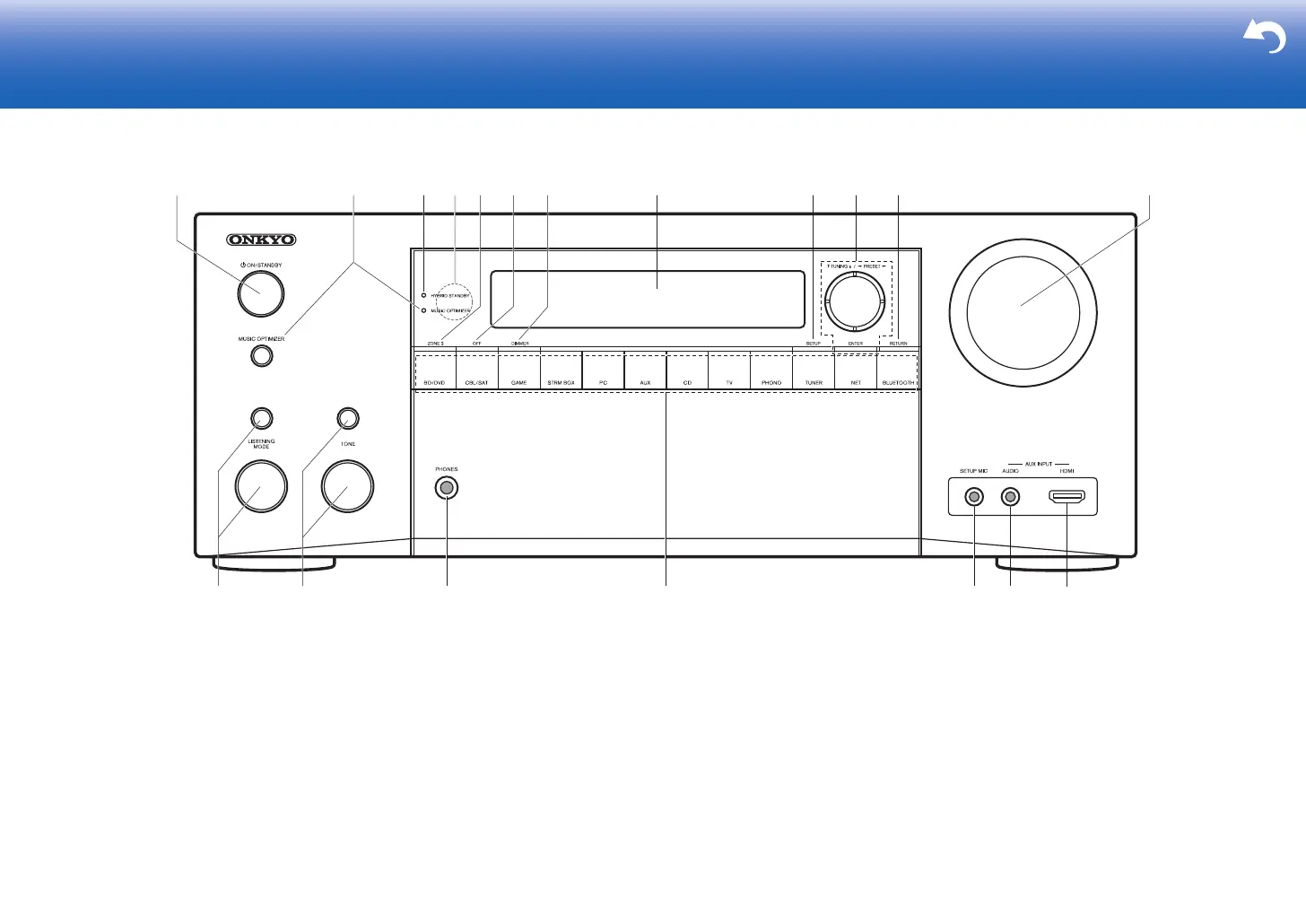

Front Panel
1. Í ON/STANDBY button: Turns the unit on or into
standby mode.
2. MUSIC OPTIMIZER button/indicator (North American
models): Turns on/off the Music Optimizer function that
provides better sound quality for compressed audio.
PURE AUDIO button/indicator (European, Australian and
Asian models): Switches the unit to Pure Audio mode.
(
P14)
3. HYBRID STANDBY indicator: Lights if the unit enters
standby mode when the features are enabled that
continue to work when this unit is in standby, such as
HDMI Standby Through and Network Standby.
4. Remote control sensor
5. ZONE 2 button: Controls the multi-zone function. (
P17)
6. OFF button: Switches the multi-zone function off.
7. DIMMER button: You can adjust the brightness of the
display in three steps. It cannot be turned off completely.
8. Display (
P21)
9. SETUP button: Displays the Setup menu.
10.
Cursor buttons (4 TUNING 3 / 2 PRESET 1 button)
and ENTER button: Select the item with the cursors and
press ENTER to confirm your selection. When using the
TUNER, select the frequency with 4 TUNING 3, or
select preset stations with 2 PRESET 1.
11.
RETURN button: Returns the display to the previous
state.
12.
MASTER VOLUME: Allows you to adjust the volume.
13.
(Up) LISTENING MODE button / (Down) LISTENING
MODE dial: Allows you to select the listening mode.
Press the button repeatedly to select a category from
"Movie/TV", "Music", "Game", then turn the dial to
change the mode. (
P14)
14.
(Up) TONE button / (Down) TONE dial: Adjusts the high
tone and low tone. Press the button repeatedly to select
the item to adjust from "Bass" and "Treble", and turn the
dial to adjust.
15.
PHONES jack: Stereo headphones with a standard plug
(1/4 inch or ø6.3 mm) are connected.
16.
Input selector buttons: Switch the input to be played.
17.
SETUP MIC jack: The supplied speaker setup
microphone is connected.
18.
AUX INPUT AUDIO jack: You can play the audio from an
external player by connecting using a stereo mini plug cable.
19.
AUX INPUT HDMI jack: Connect to a video camera, etc.,
using a HDMI cable.
1 2 106 121157 98
14
13
1816 1715
43
19
