Menu operations
You can quickly adjust the settings you frequently use, such as tone adjustments,
etc.

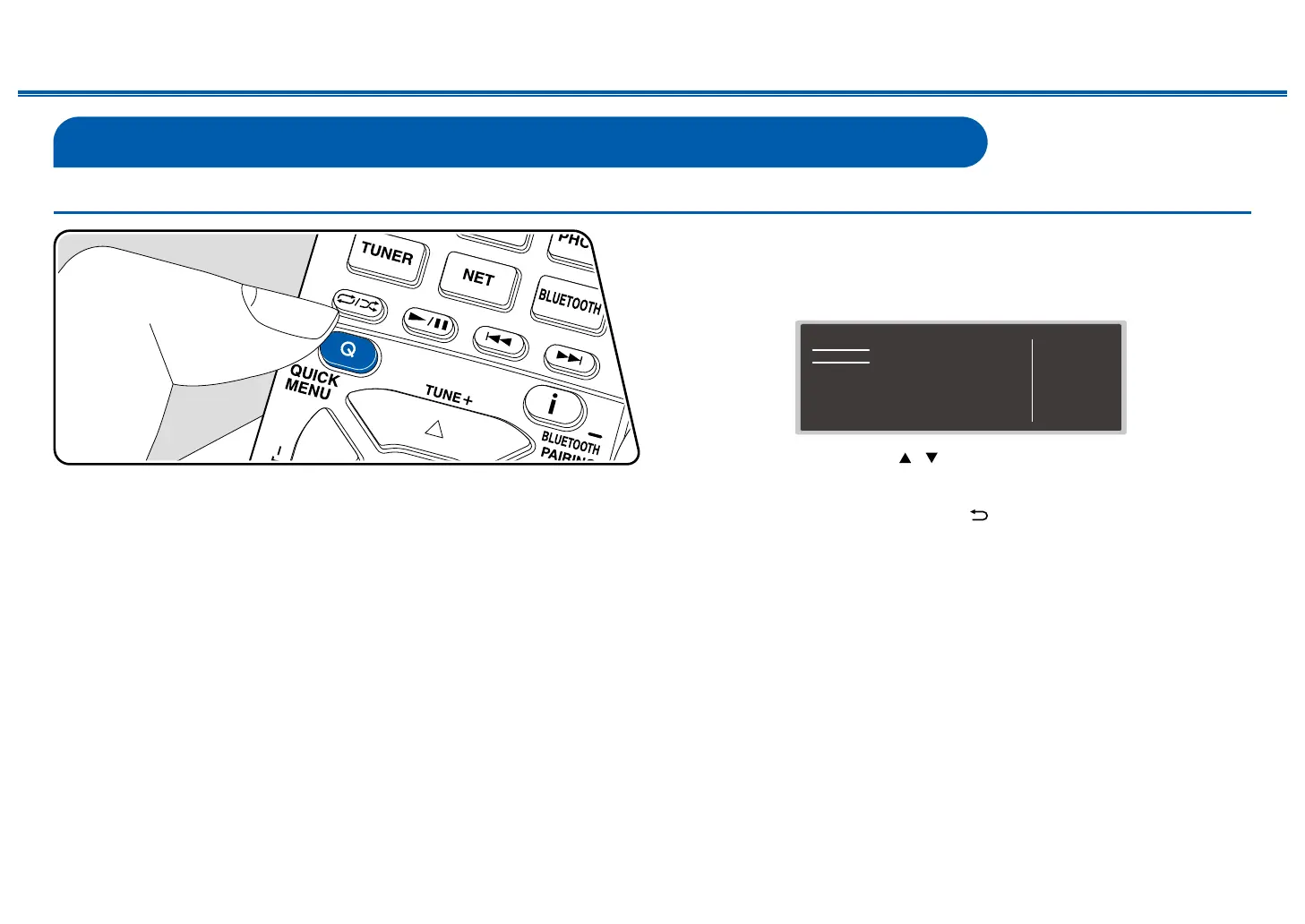

You can make the settings on the TV screen during playback. Press Q on the
remote controller to display the Quick Menu.
Quick Menu
HDMI
Audio
AccuEQ
Level
HDMI Out
A/V Sync
Audio Return Channel
BD/DVD
Select the item with the cursors / of the remote controller, and press the
ENTER button to conrm your selection.
Use the cursors to change the settings.
• To return to the previous screen, press .
• To exit the settings, press Q.
 HDMI
HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN",
"SUB", and "MAIN+SUB".
A/V Sync: If the video is behind the audio, you can delay the audio to o󰀨set the
gap. The setting can be set for each input.
It cannot be set if the listening mode is Direct.
Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC-
compatible TV through the speakers connected to the unit. Select "On" when
listening to the audio of TV using the speakers of this unit. Select "O󰀨" when the
ARC function is not used.
 Audio
Music Optimizer: Improve the quality of the compressed audio. Playback sound
