Onkyo TX-NR696-S User Manual

5
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

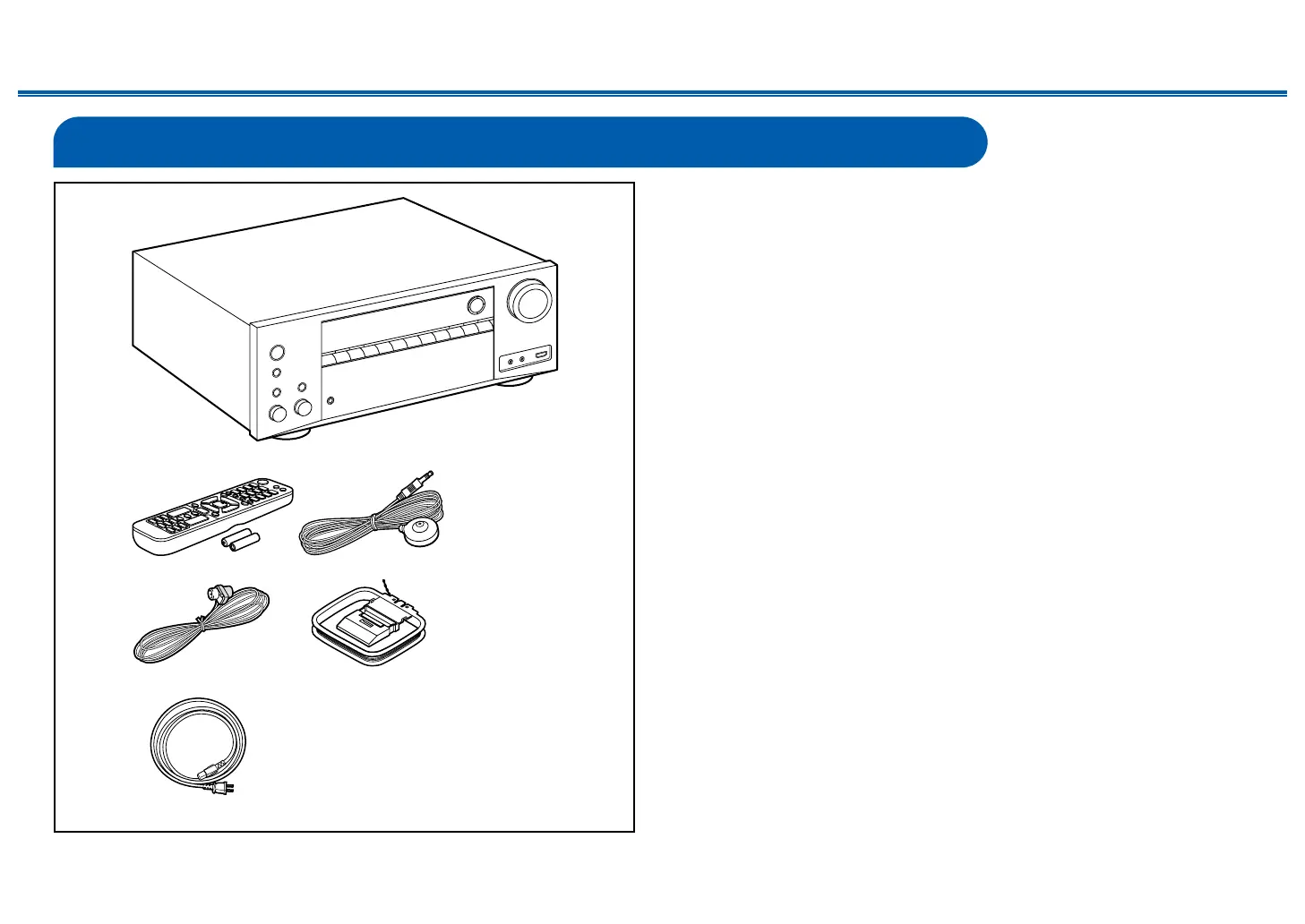

What’s in the box
1. Main unit (1)
2. Remote controller (RC-972R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1)
• Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
6. Power cord (European, Australian, Taiwanese and Asian models) (1)
• Quick Start Guide (1)
*This is an online user manual. This is not supplied with the product.
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may di󰀨er depending on your
area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• The illustrations in this manual use those of North American models unless
otherwise mentioned.
• Specications and appearance are subject to change without prior notice.
1
32
54
6

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
