Onkyo TX-NR696-S User Manual

46
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting ZONE B

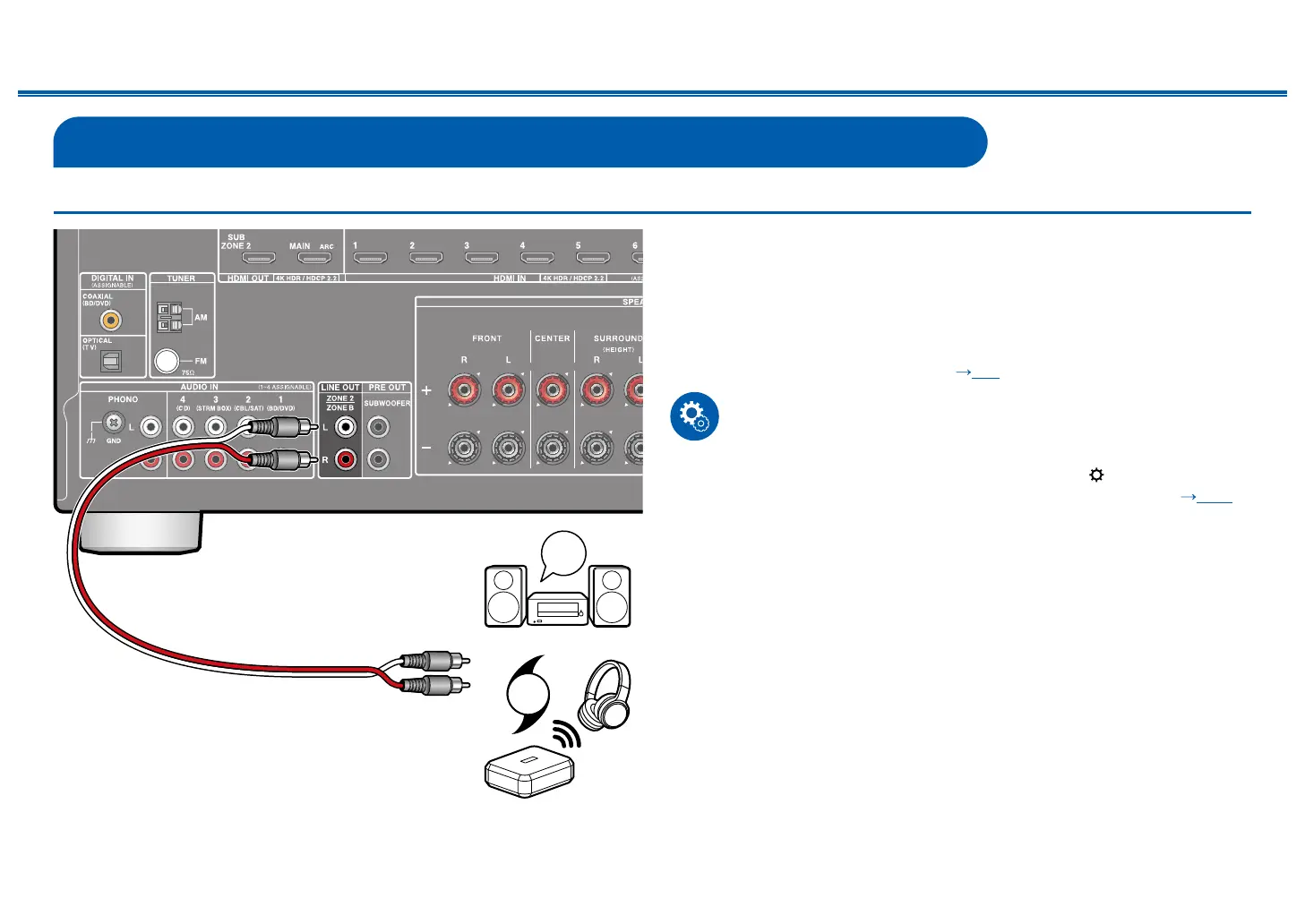

Connecting a Pre-main Amplier, etc. (ZONE B)
While performing playback through speakers (ZONE A) connected to the unit,
you can enjoy the audio of the same source at the same time with the pre-main
amplier or the transmitter of the wireless headphones connected to the ZONE
B LINE OUT jack. Use an analog audio cable to connect the ZONE B LINE OUT
jack of this unit and the LINE IN jack of the pre-main amplier or the transmitter of
the wireless headphones.
Press the Q button on the remote controller for playback, and select the audio
output destination on the Quick menu. ( p81)
Setup
• Settings are required to output audio to ZONE B. Press on the remote
controller, and set "2. Speaker" - "Conguration" - "Zone 2 Lineout" ( p119)
to "Zone B".
LINE
IN
OR
a
Premain Amp.
Transmitter
a Analog audio cable

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
