Onkyo TX-NR696-S User Manual

41
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting Playback Devices

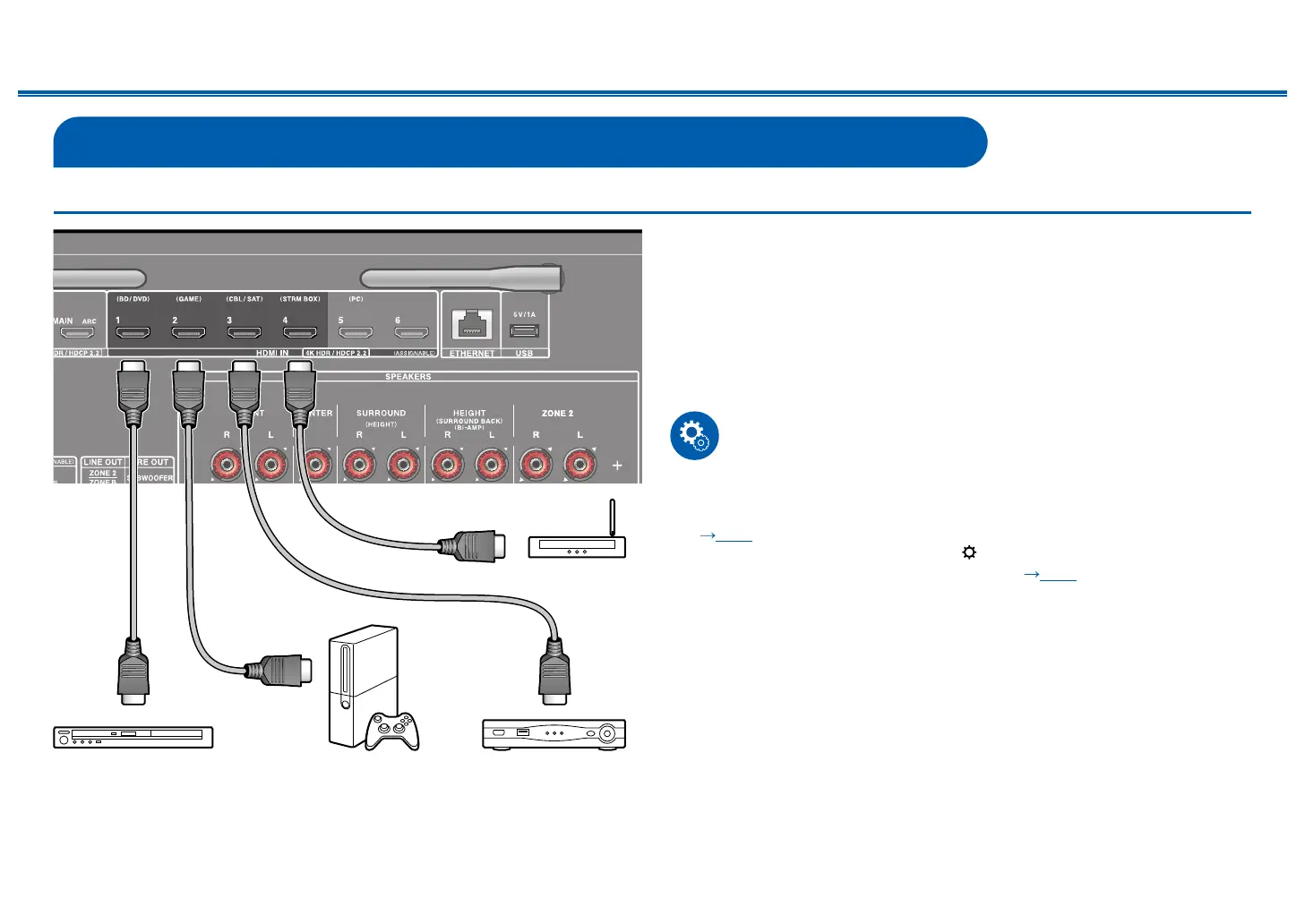

Connecting an AV Component with HDMI Jack Mounted
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has a
"PREMIUM Certied Cable" label.
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "4. ARC Setup" in Initial Setup
( p138). If "No, Skip" is selected, settings are required in the Setup menu
after Initial Setup is completed. Press on the remote controller, and select
"5. Hardware" - "HDMI" to make the settings. ( p127)
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*) The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned o󰀨.
a
Streaming media
player
GAMEBD/DVD Cable/Satellite
set-top box
a HDMI cable

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
