Onkyo TX-NR696-S User Manual

24
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
❏ Dolby Enabled Speakers (Dolby Speakers)

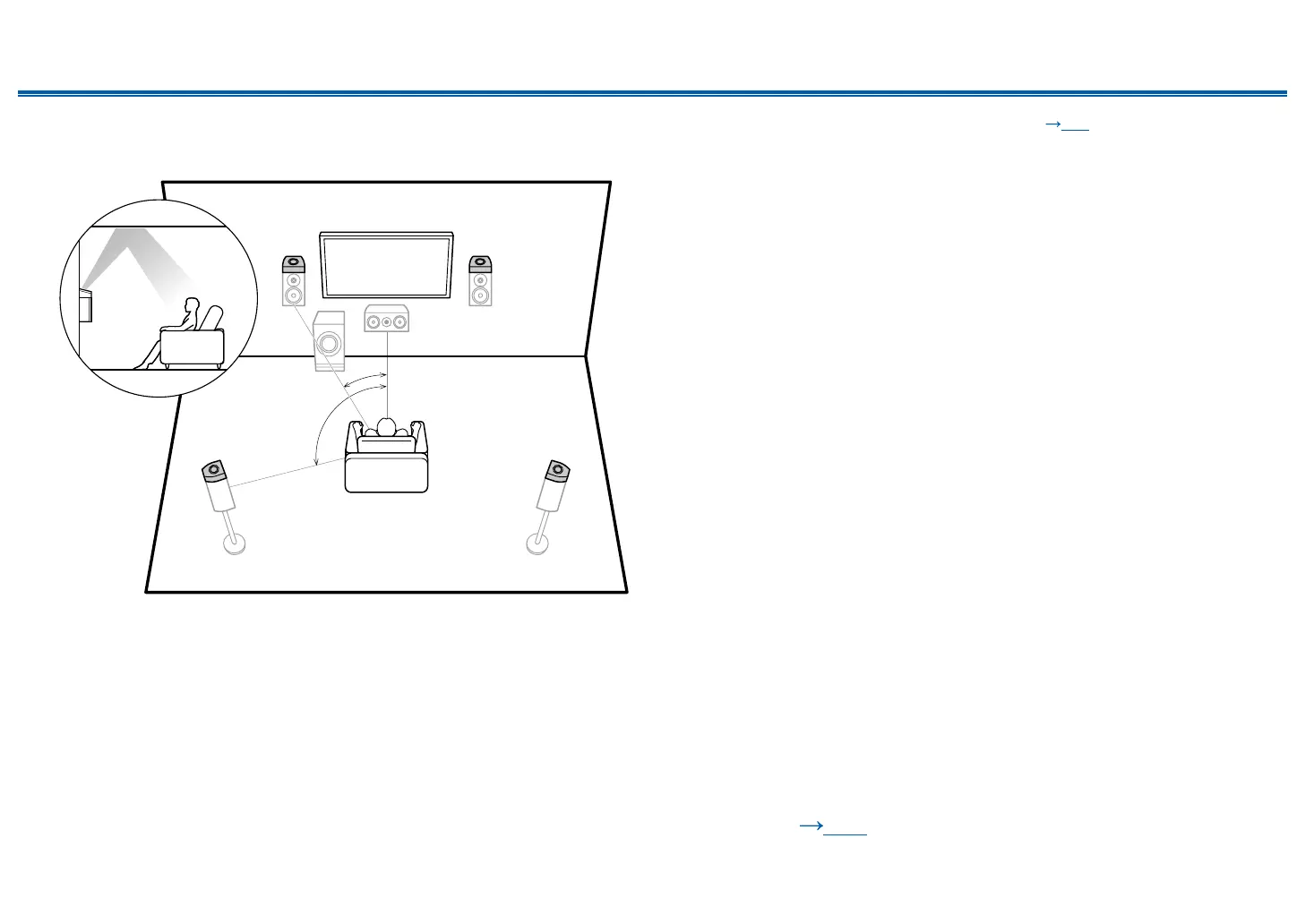

Installation Example
a
b
78
78
a: 22° to 30°, b: 120°
This is a system with the basic 5.1 channel system ( p19) consisting of front
speakers, a center speaker, surround speakers and a powered subwoofer, and
added Dolby enabled speakers (front) or Dolby enabled speakers (surround)
combined. Dolby enabled speakers are special speakers designed to face the
ceiling, so that the sound is heard from overhead by bouncing the sound o󰀨 the
ceiling. Installing the height speakers will enrich the sound eld feeling in the
upper space.
Install them either on the front speakers or on the surround speakers.
7,8 Height Speakers
Choose one of the following:
• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)
❏ Speaker Layouts and Selectable Listening
Modes ( p87)

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
