Listening To the AM/FM Radio
You can receive AM and FM radio stations on this unit with the built-in tuner.
Tuning into a Radio Station
Perform the following procedure when this unit is on.
Tuning Automatically

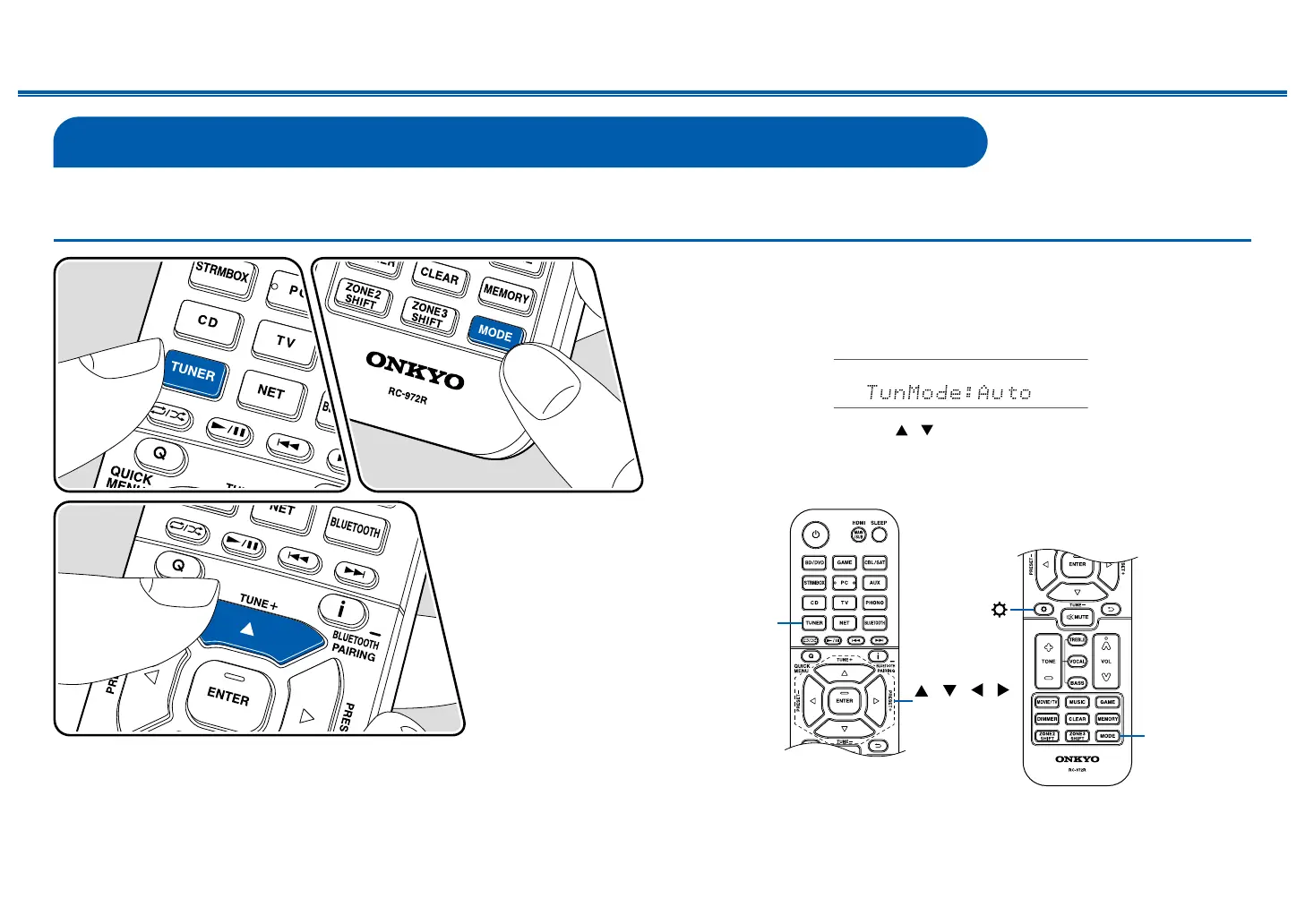

1. Press TUNER repeatedly to select either "AM" or "FM".
2. Press MODE repeatedly to display "TunMode: Auto" on the display.
3. When you press the cursors / , automatic tuning starts, and searching
stops when a station is found. When tuned in to a radio station, the "TUNED"
indicator on the display lights up. When tuned in to an FM radio station, the
"FM ST" indicator lights up.
/ / /
ENTER
MODE
TUNER

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
