Step3: Connect the TV
TV
1
HDMI IN (ARC)
1 HDMI cable
if you have:
ARC TV

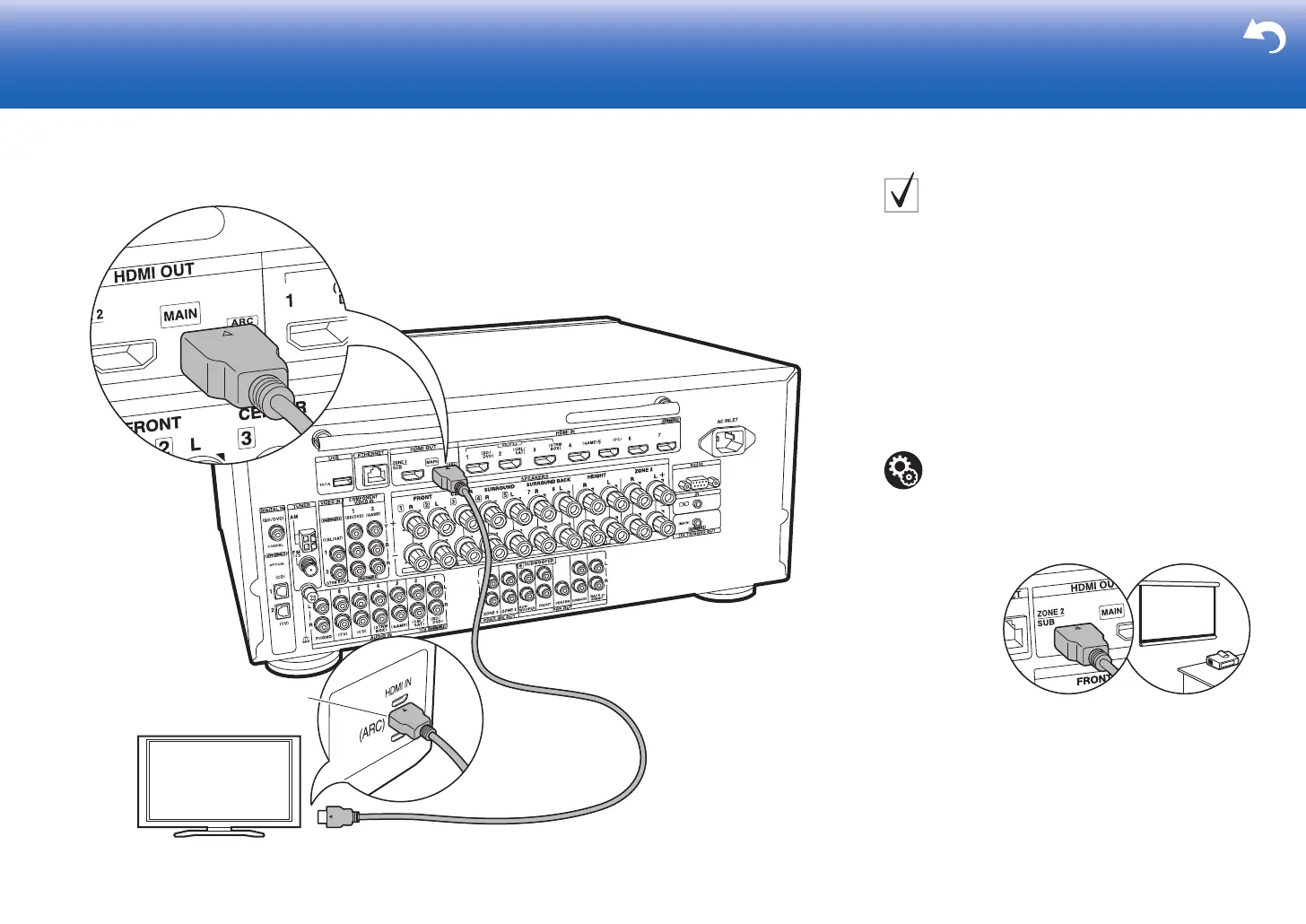

This unit is connected between your TV and AV
components. If you connect two or more AV components,
you can select the video displayed on the TV and the
audio output from this unit by changing the input selector.

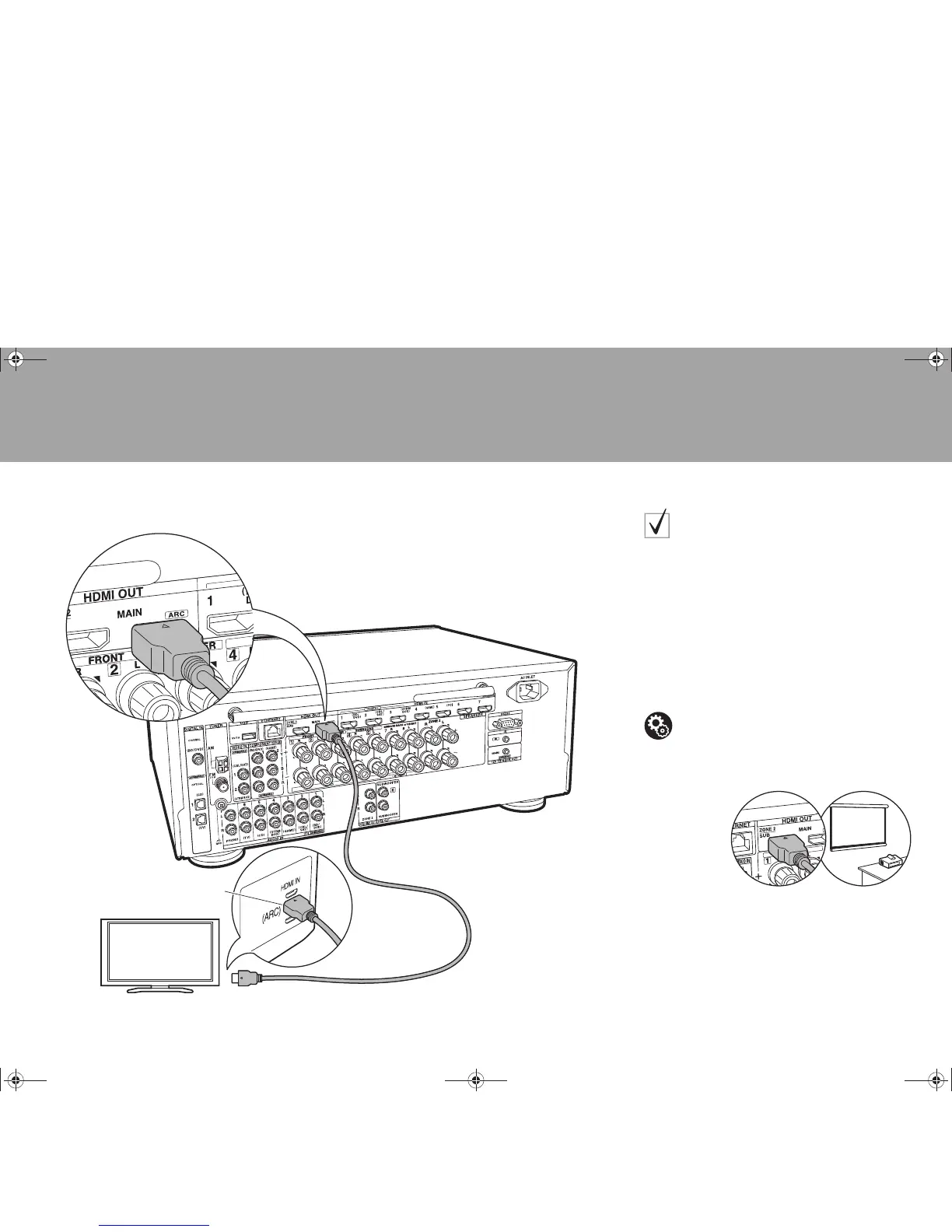

Shown here are the connections for a TV that supports
the ARC (Audio Return Channel) feature. By connecting
with a single HDMI cable, you can not only output the
video input to this unit to the TV, but you can also play the
sound from the TV through this unit.
Choose an HDMI IN jack on the TV that supports ARC
when connecting.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (P22)
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (
 P21)
in the Initial Setup.
0 Please refer to the TV's operation manual for
directions on connections and setup for the TV.

Onkyo TX-RZ710 Specifications

General

Impedance	6 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Power output per channel (20-20KHz@8 Ohm)	130 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Internet radio	Yes
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
Optical drive included	No
Display	LCD
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
RS-232 ports	1
Speakers connectivity type	Clamp terminals
THX-certified	THX Select2 Plus
Package depth	468 mm
Package width	570 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	600 W
Bluetooth version	4.1
HDMI in	8
Headphone connectivity	3.5 mm

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	288 mm
Weight	10500 g
