Onkyo TX-RZ710 User Manual

13
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix

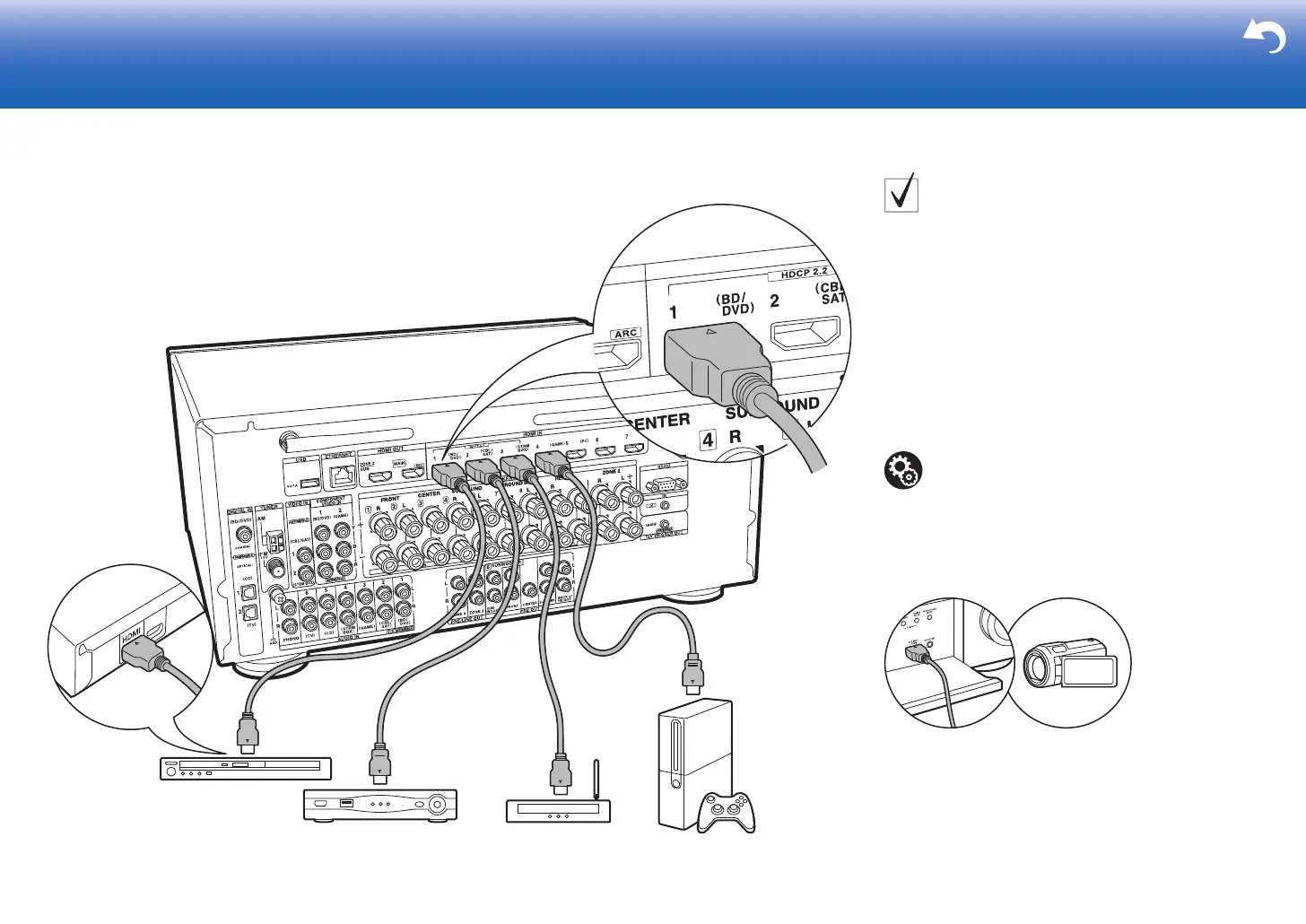

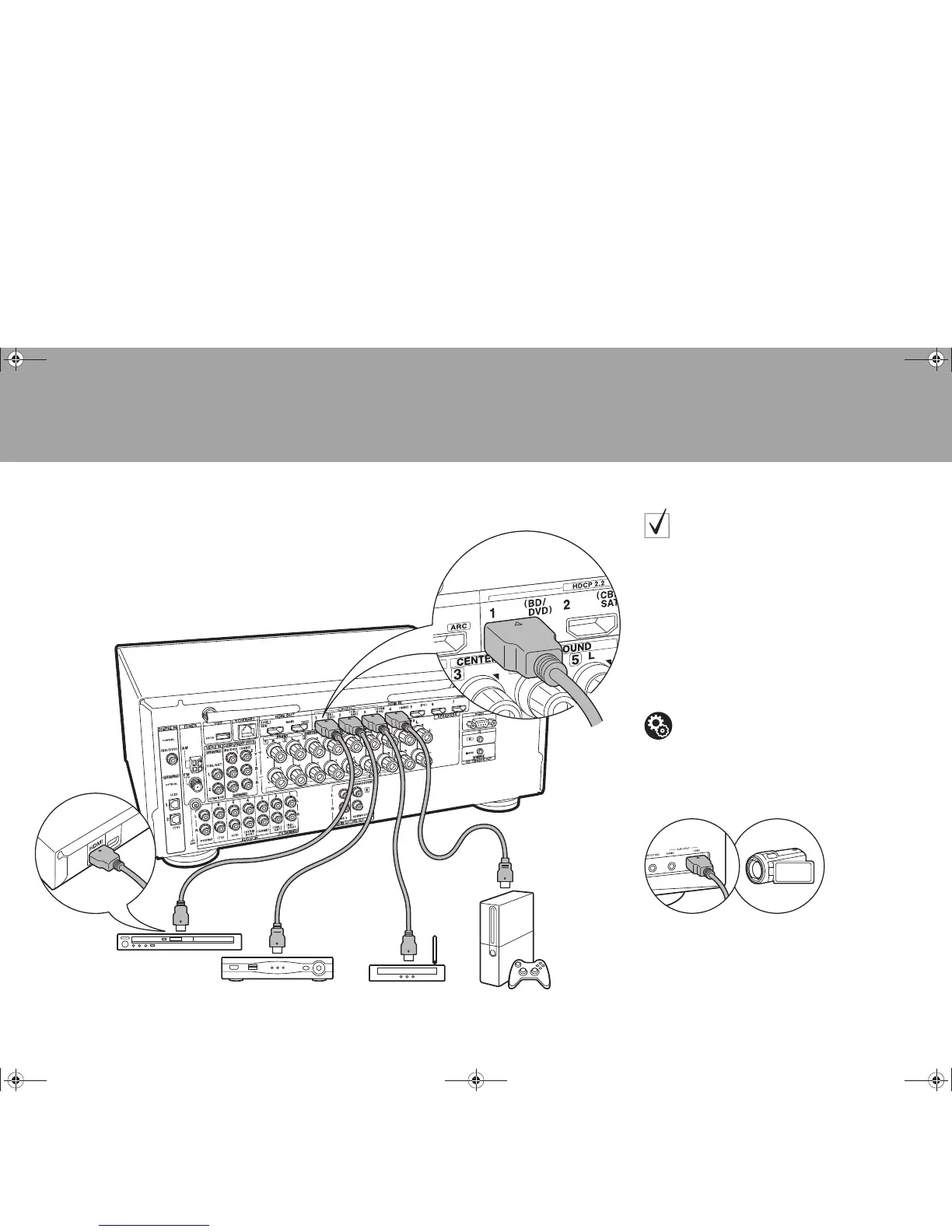

Step4: Connect the AV Components
BD/DVD
GAME
1
Cable/Satellite set-top
box
Streaming media
player
1 HDMI cable
if you have:
HDMI AV Components
This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such
as the HDMI CEC feature that links with the input selector,
and the HDMI Standby Through feature which allows you
to play video and audio from AV components on the TV
even when this unit is in standby mode.
0 To play 4K or 1080p video, use a high speed HDMI
cable. Further, to enjoy HDCP2.2 compatible video,
connect to the HDMI IN1 to IN3 jacks.
You can connect a device such as a video camera to the AUX
INPUT HDMI jack on the front panel.
Setup
0 HDMI setup (
 P21) is required to use the HDMI
CEC and HDMI Standby Through features. Make
settings after all connections are complete.
0 To enjoy digital surround sound including Dolby
Digital, audio output should be set to "Bitstream
output" on the connected Blu-ray Disc player or
other device.
