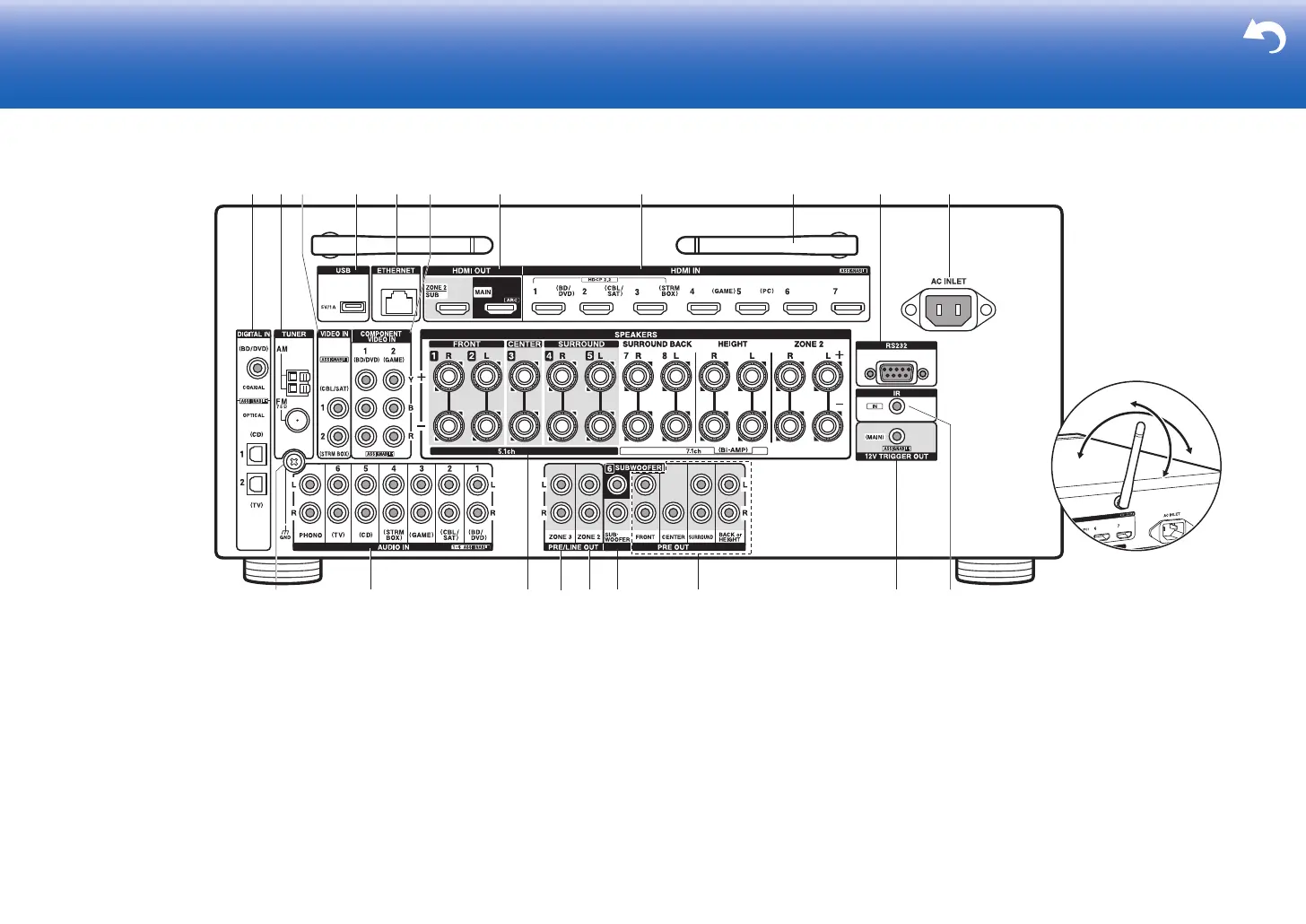

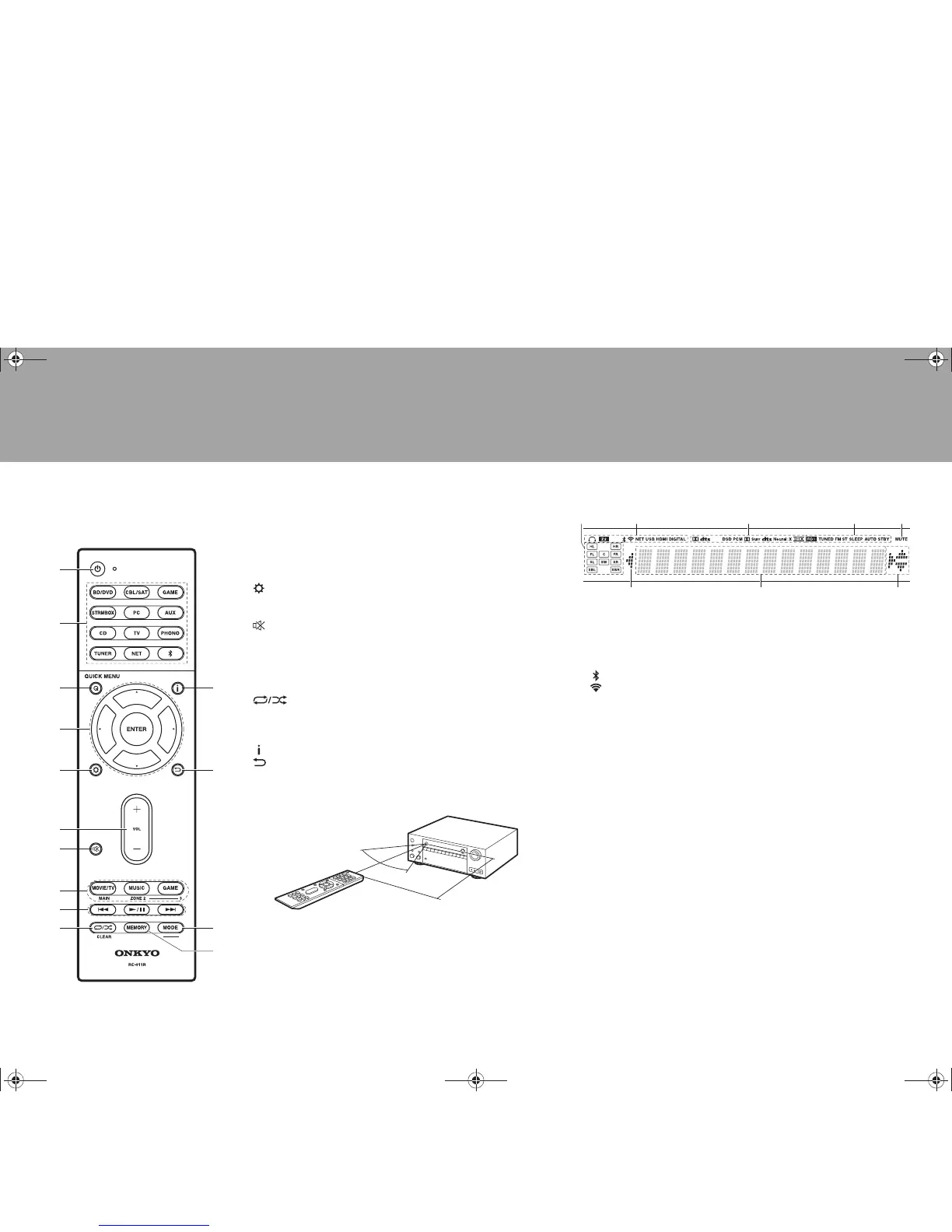

Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV
component digital audio signals with a digital optical
cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminal: The supplied antennas
are connected.
3. VIDEO IN jacks: Input the video signals from AV
components with an analog video cable.
4. USB port: A USB storage device is connected so that
music files stored in it can be played. You can also
supply power (maximum 5V/1A) to USB devices with a
USB cable.
5. ETHERNET port: Connect to the network with an
Ethernet cable.
6. COMPONENT VIDEO IN jacks: Input the video signals
from AV components with a component video cable.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a monitor such
as a TV or projector.
8. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
9. Wireless antenna: Used for Wi-Fi connection or when
using a BLUETOOTH enabled device. Adjust their
angles according to the connection status.
10. RS232 port: For connection to the home control system.
11. AC INLET: The supplied power cord is connected.
12. GND terminal: The ground wire of the turntable is connected.
13. AUDIO IN jacks: Input TV or AV component audio
signals with an analog audio cable.
14. SPEAKERS terminals: Connect speakers with speaker
cables. You can connect the multichannel speakers for the
main room and the speakers for a separate room (ZONE 2).
(North American models are compatible with banana plugs.)
15. ZONE 3 PRE/LINE OUT jacks: Output audio signals with
an analog audio cable to a pre-main amplifier or power
amplifier in a separate room (ZONE 3). (
 P17)
16. ZONE 2 PRE/LINE OUT jacks: Output audio signals with
an analog audio cable to a pre-main amplifier or power
amplifier in a separate room (ZONE 2). (
 P17)
17. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a
subwoofer cable. Up to two powered subwoofers can be connected. The
same signal is output from each of the SUBWOOFER PRE OUT jacks.
18. PRE OUT jacks: Connect a power amplifier.
19. 12V TRIGGER OUT jack: Allows you to connect a device with 12V trigger
input jack to enable link operation between the device and the unit.
20. IR IN port: Allows you to connect a multiroom remote control kit.
9
9
11108
1 2
3 5 764
1312 1614
15
17 18 19 20
180°
90°

Onkyo TX-RZ710 Specifications

General

Impedance	6 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	250 W
Dynamic power per channel (4 Ohm)	220 W
Power output per channel (20-20KHz@8 Ohm)	130 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Internet radio	Yes
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
Optical drive included	No
Display	LCD
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
RS-232 ports	1
Speakers connectivity type	Clamp terminals
THX-certified	THX Select2 Plus
Package depth	468 mm
Package width	570 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	600 W
Bluetooth version	4.1
HDMI in	8
Headphone connectivity	3.5 mm

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	288 mm
Weight	10500 g
