Onkyo TX-SR606 User Manual

32
Connecting Your Components —Continued

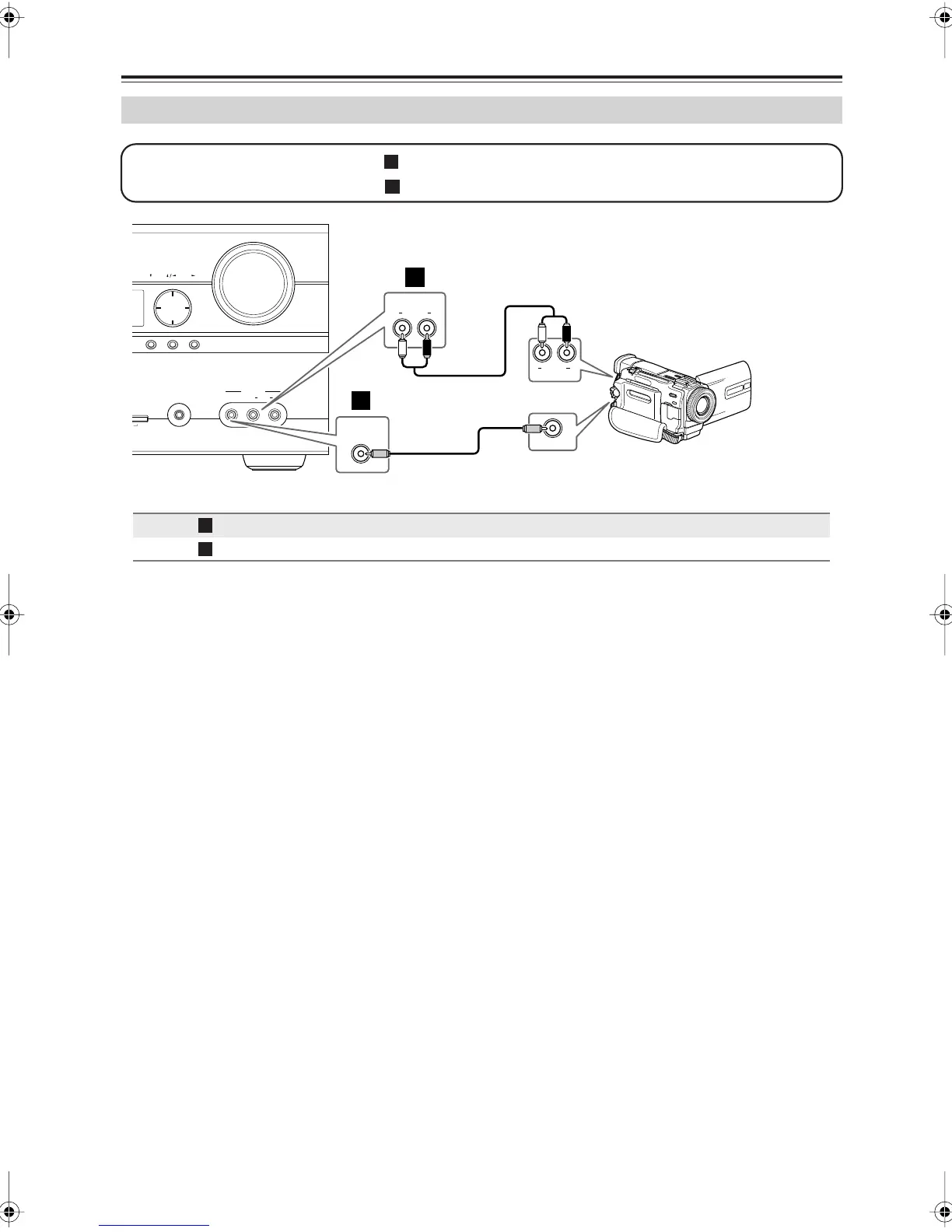

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L-AUDIO-R
⇐
Analog audio L/R output
TUNING MODE
SETUP
SETUP MIC VIDEO
L AUDIO R
AUX INPUT
ENTER RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER TX-SR606
VIDEO OUT
AUDIO
AUX INPUT
LR
AUDIO
OUT
LR
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder, etc.
A
a
TX-SR606En.book Page 32 Friday, May 9, 2008 1:28 PM

Onkyo TX-SR606 Specifications

General

Frequency range	50 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Connectivity technology	Wired
Product color	Silver
Dimensions (WxDxH)	435 x 374.7 x 174.3 mm
Power consumption (typical)	550 W

Weight and Dimensions

Weight	11400 g
