9
Getting to Know the AV Receiver
—Continued
For detailed information, see the pages in parentheses.
I
RETURN button
Selects the previously displayed setup menu.
J
MASTER VOLUME control (47)
Sets the volume of the AV receiver to Min, 1
through 79, or Max.
K
PHONES jack (49)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
L
ZONE 2 and OFF buttons (85)
The ZONE 2 button is used when setting Zone 2.
The OFF button is used to turn off Zone 2.
M
ZONE 2 LEVEL button (86)
Used when adjusting the volume level of Zone 2.
N
TONE, –, and + buttons (69)
Used to adjust the tone (bass and treble).
O
MOVIE/TV button (57)
Selects the listening modes intended for use with
movies and TV.
P
MUSIC button (57)
Selects the listening modes intended for use with
music.
Q
GAME button (57)
Selects the listening modes intended for use with
video games.
R
DISPLAY button (49)
Displays various information about the currently
selected input source.
S
DIGITAL INPUT button (46)
Selects the options for automatic audio input selec-
tion setup.
T
DIMMER (RT/PTY/TP) button (48, 56)
Adjusts the display brightness.
On the European modes, this is the RT/PTY/TP but-
ton, and it’s used with RDS (Radio Data System).
See “Using RDS (European models only)” on
page 55.
U
MEMORY button (54)
Used when storing or deleting radio presets.
V
TUNING MODE button (52)
Selects the Auto or Manual tuning mode for AM
and FM radio.
W
SETUP MIC (38)
The automatic speaker setup microphone connects
here.
X
AUX INPUT (32, 66)
Used to connect a camcorder, game console, and so
on. There are input jacks for composite video and
analog audio.
Y
PURE AUDIO button (57)
On models other than the North American model,
selects the Pure Audio listening mode. The indicator
lights up when this mode is selected. Pressing this
button again selects the previous listening mode.
For detailed information, see the pages in parentheses.
1
SLEEP indicator (48)
Lights up when the Sleep function has been set.
2
MUTING indicator (48)
Flashes while the AV receiver is muted.
3
Listening mode and format indicators (57)
Show the selected listening mode and audio input
signal format.
4
Tuning indicators (52)
FM STEREO (52):
Lights up when tuned to a ste-
reo FM station.
RDS (55):
Lights up when tuned to a radio station
that supports RDS (Radio Data System).
AUTO (52):
Lights up when Auto Tuning mode is
selected for AM or FM radio. Goes off when Man-
ual Tuning mode is selected.
TUNED (52):
Lights up when tuned to a radio sta-
tion.
5
Message area
Displays various information.
6
Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: MULTI CH, or HDMI.
7
Audyssey indicator
Flashes during automatic speaker setup.

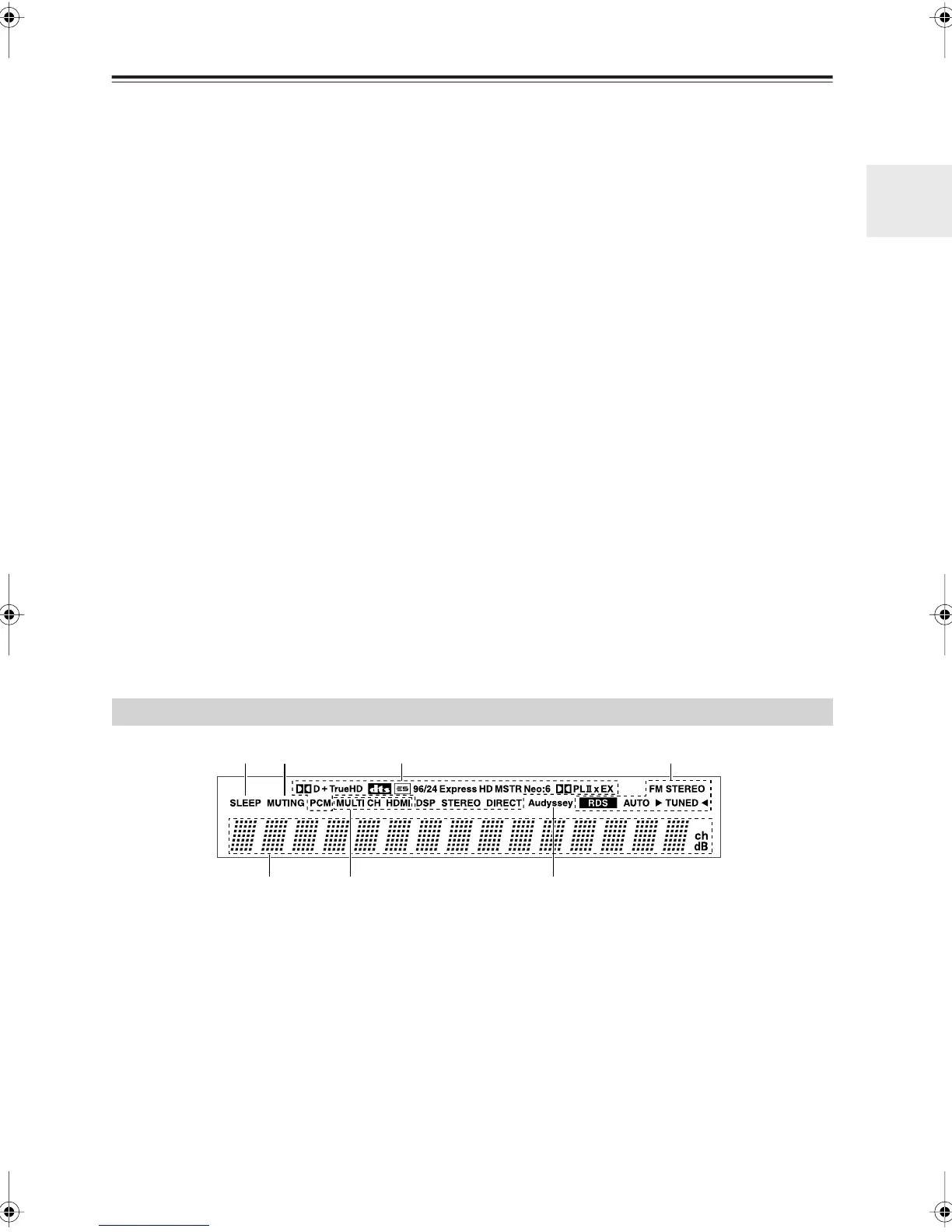

Display
1 23 4
57
6
TX-SR606En.book Page 9 Friday, May 9, 2008 1:28 PM
