Optex FTN-R - 2-3 BEFORE WALL MOUNTING

3

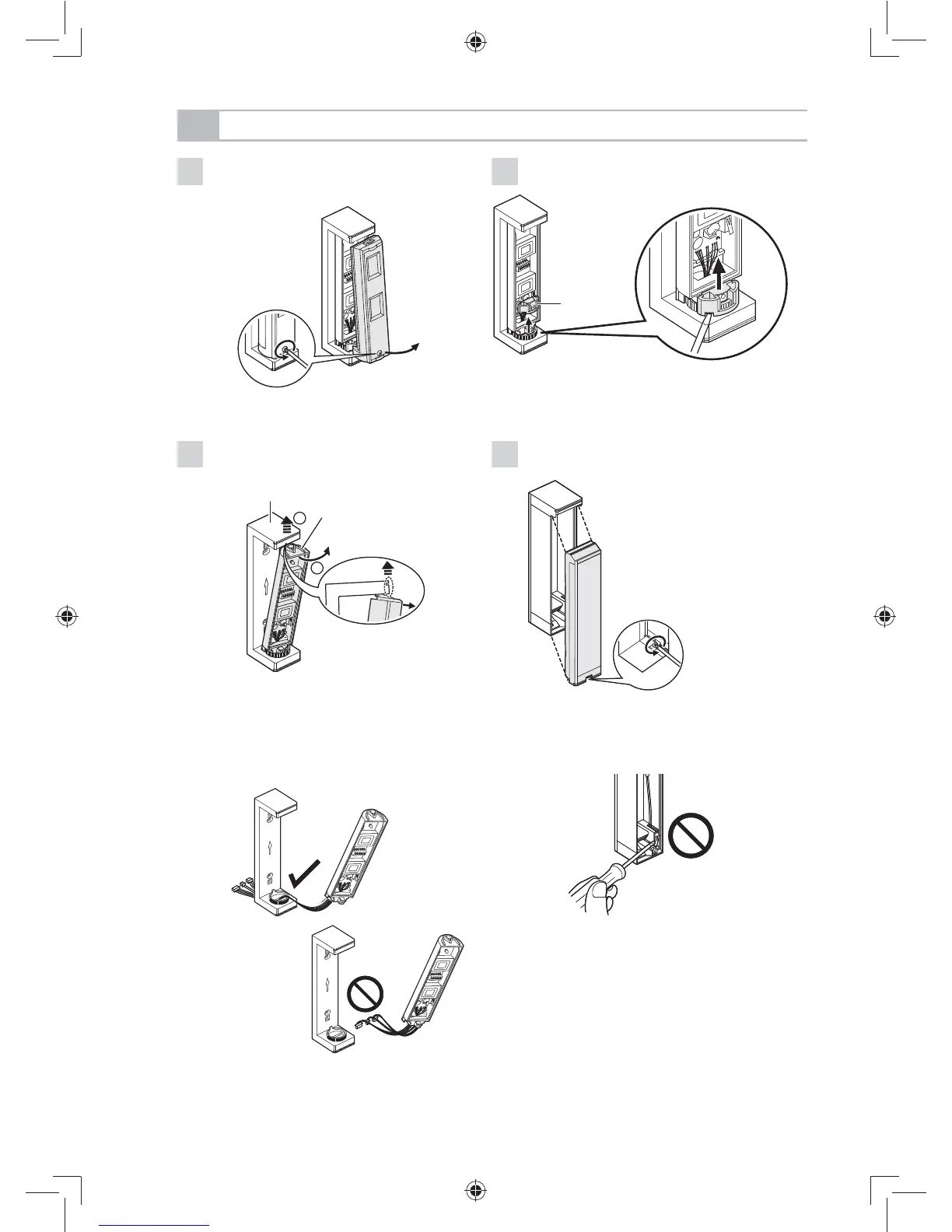

Hold the top of the bracket and
remove the main unit.
Note>>
Be sure to keep connectors installed
through the bottom part of bracket after
main unit is removed.
•
Bracket
Main unit
2
1
Bracket
Main unit
2
1
2-3 BEFORE WALL MOUNTING
1
Open the main unit cover.
2
Remove the fixture.
FixtureFixture
4
Open the separate box.
Note>>
Do not remove the separate box
tamper.
•
