Appendices
Power LED on: 
No signal; OSD
menu appears
and signal had
been detected.
Power LED off: 
Signal had been
detected but OSD
menu disappears.
HDMI 1 HDMI 2
VGA YPbPr
Y G Pb B Pr R
VIDEO SERVICE RS-232
12V Trigger
3D SYNC
Out (5V)
POWER
HDMI 1 HDMI 2
VGA YPbPr
Y G Pb B Pr R
VIDEO SERVICE RS-232
12V Trigger
3D SYNC
Out (5V)
POWER

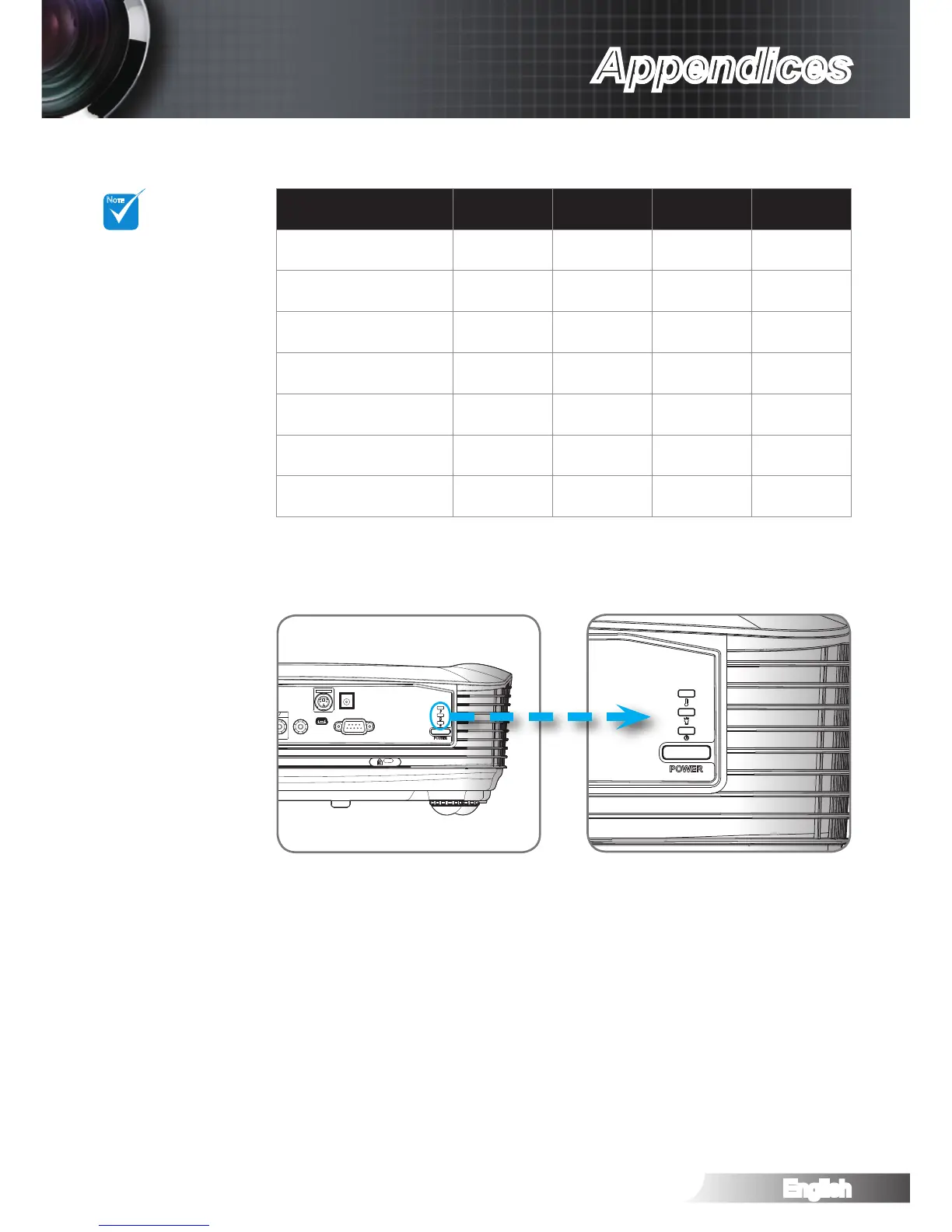

LED Lighting Messages
NOTE
Message
Power LED
(Red)
Power LED
(Blue)
Temp LED
(Red)
Lamp LED
(Orange)
Standby State
(Input power cord)
Steady light Off Off Off
Power on (Warming) Off Flashing Off Off
Power on and Lamp lighting Off Steady light * Off Off
Power off (Cooling) Off Flashing Off Off
Error (Lamp fail) Flashing Off Off Steady light
Error (Fan fail) Flashing Off Flashing Off
Error (Over Temp.) Flashing Off Steady light Off
