Optoma Projector User Manual

English
9
Introduction

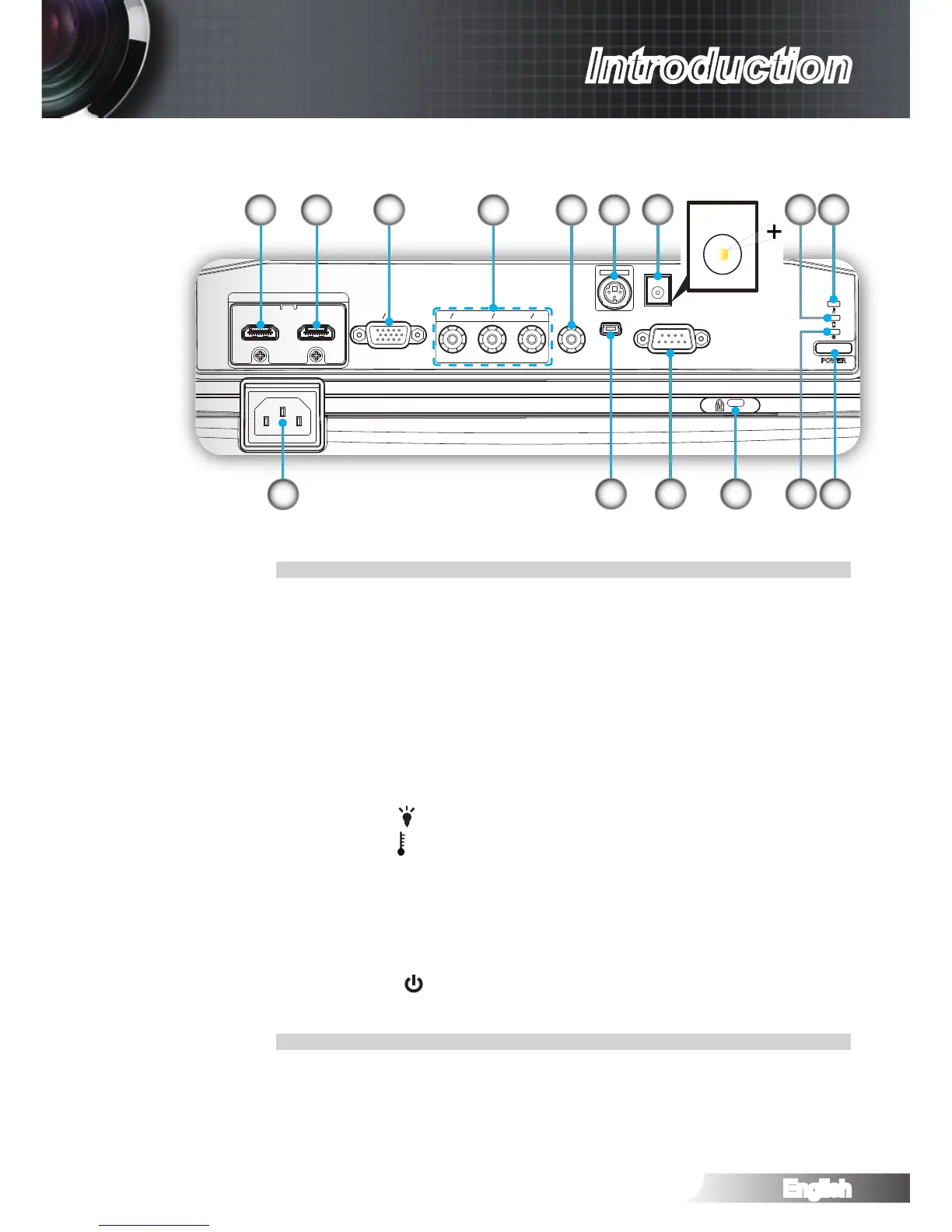

Connection Ports
HDMI1 Input Connector1.
HDMI2 Input Connector2.
VGA-In/YPbPr Connector 3.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
Component Video Input Connector4.
Composite Video Input Connector5.
3D Sync Out (5V) Connector6.
12V Trigger Relay (12V, 250mA)7.
Lamp LED 8. (Indicates the projector’s lamp status)
Temp LED 9. (Indicates the projector’s temperature status)
Power Socket 10.
USB Service11.
RS-232 Connector (9-pin)12.
Kensington13.
TM
Lock Port
Power LED 14. (Indicates the projector’s status)
Power Button15.
HDMI 1 HDMI 2
VGA YPbPr
Y G Pb B Pr R
VIDEO SERVICE RS-232
12V Trigger
3D SYNC
Out (5V)
POWER
5
93
10
12 13
6
7
1 4
11
8
15
12V OUT
14
2
