User
’
Guide
71

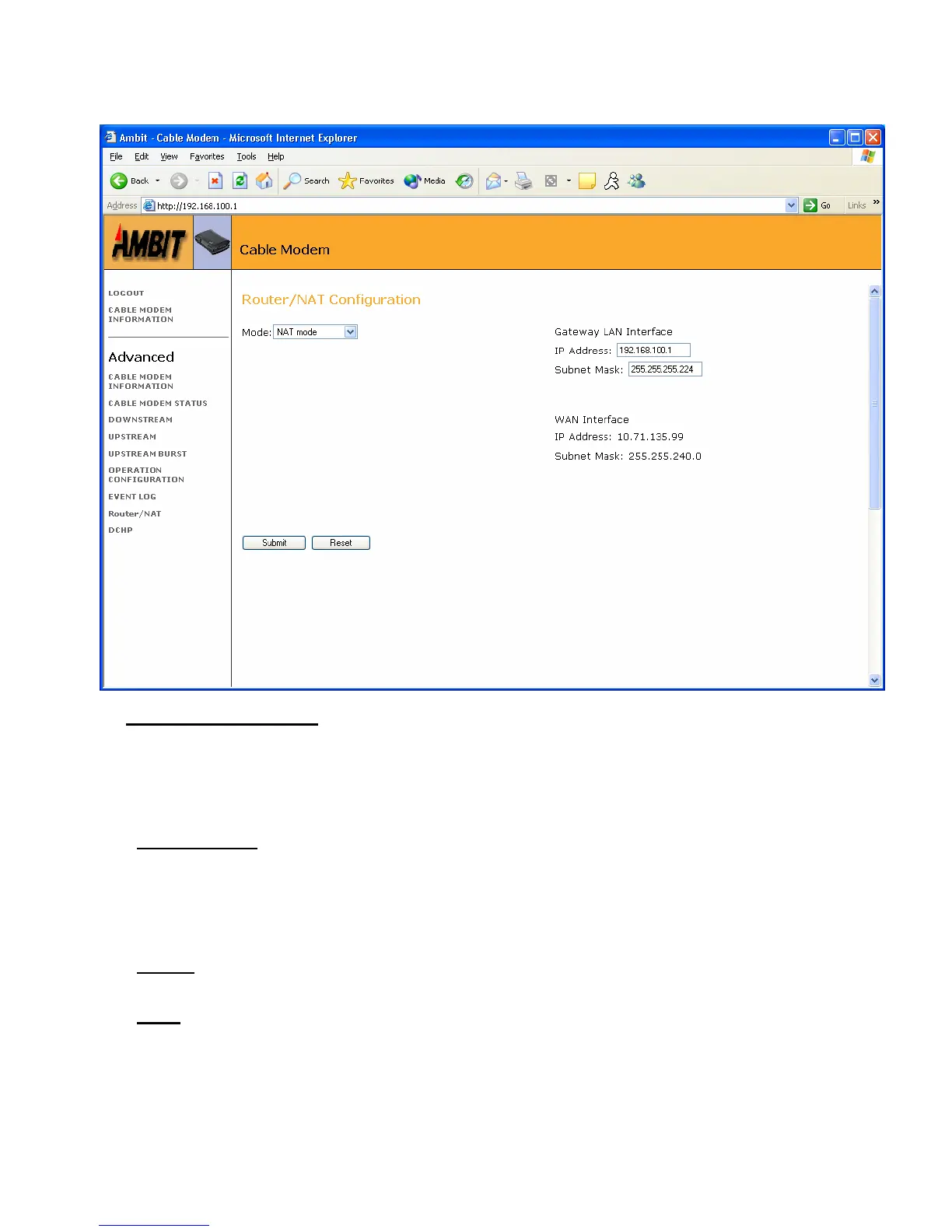

NAT Mode
Gateway LAN Interface
•
IP Address
Gateway private NAT IP address
•
Subnet
Gateway private NAT subnet mask
W
AN Interface
•
IP Address
Cable Modem IP address (private Cable RF network)
•
Subnet
Cable Modem IP subnet mask
Submit
•
Click “
Submit
” to change displayed parameters
Reset
•
Click “
Reset
” to use displayed param
eters, cable modem wi
ll reset.
70
72
Table of Contents
Default Chapter
2
Table of Contents
2
1 Before You Begin
5
Understand the Cable Modem's Features
5
Contact Your Local Cable Operator
5
Prepare Your Area for Cable Modem Installation
6
Gather Supplied and Required Items
6
2 Installing the Cable Modem Using the Usb Port
7
Installing the Hardware
10
Installing the Software Drivers
10
Installing the Software Drivers in Windows 98 SE Operating System
10
Installing the Software Drivers in Windows Me Operating System
16
Installing the Software Drivers in Windows 2000 Operating System
19
Installing the Software Drivers in Windows XP Operating System
23
Troubleshooting the USB Installation
25
Uninstalling the USB Driver
26
3 Installing the Modem Using the Ethernet Port
27
Installing the Hardware
27
Troubleshooting the Ethernet Installation
28
4 Cable Modem Leds and Connectors
30
Leds on the Front of the Modem
30
Connectors on the Back of the Modem
31
5 Telnet Commands
32
Debug
34
Undebug
34
35
Ping
35
Tracert
36
Password
36
User-Level
36
Show
37
Nvram
45
Tftp
45
Host-Name
45
Dhcp
46
Nat
48
One to One Mapping
48
Port Forwarding Setting
49
NAT Static Ip
50
NAT Static Gateway
50
Interfaces
51
Rip
54
Web-Access
55
Telnet-Access
56
Access-List
56
Pppoe-Forwarding
57
Copy
57
Clear
57
CPE-Limit
57
Snmp
58
Nsa
58
Line
58
Wirte
58
Reset
58
Quit
58
6 Mode of Operation
59
Bridge Mode
59
NAT Mode
59
Routing Mode
60
Nat/Routing Mode
61
7 Web User Interface
62
Accessing the Web User Interface
62
Web User Interface Home Page
62
Cable Modem Information
63
Cable Modem Status
64
Downstream
65
Upstream
66
Upstream Burst
67
Operation Parameters
68
Event Log
69
Router/Nat Configuration
70
Bridge Mode
70
NAT Mode
71
Router Mode
72
NAT Router Mode
75
Dhcp
79
9 Docsis Configuration File Vsif Tag Support
81
