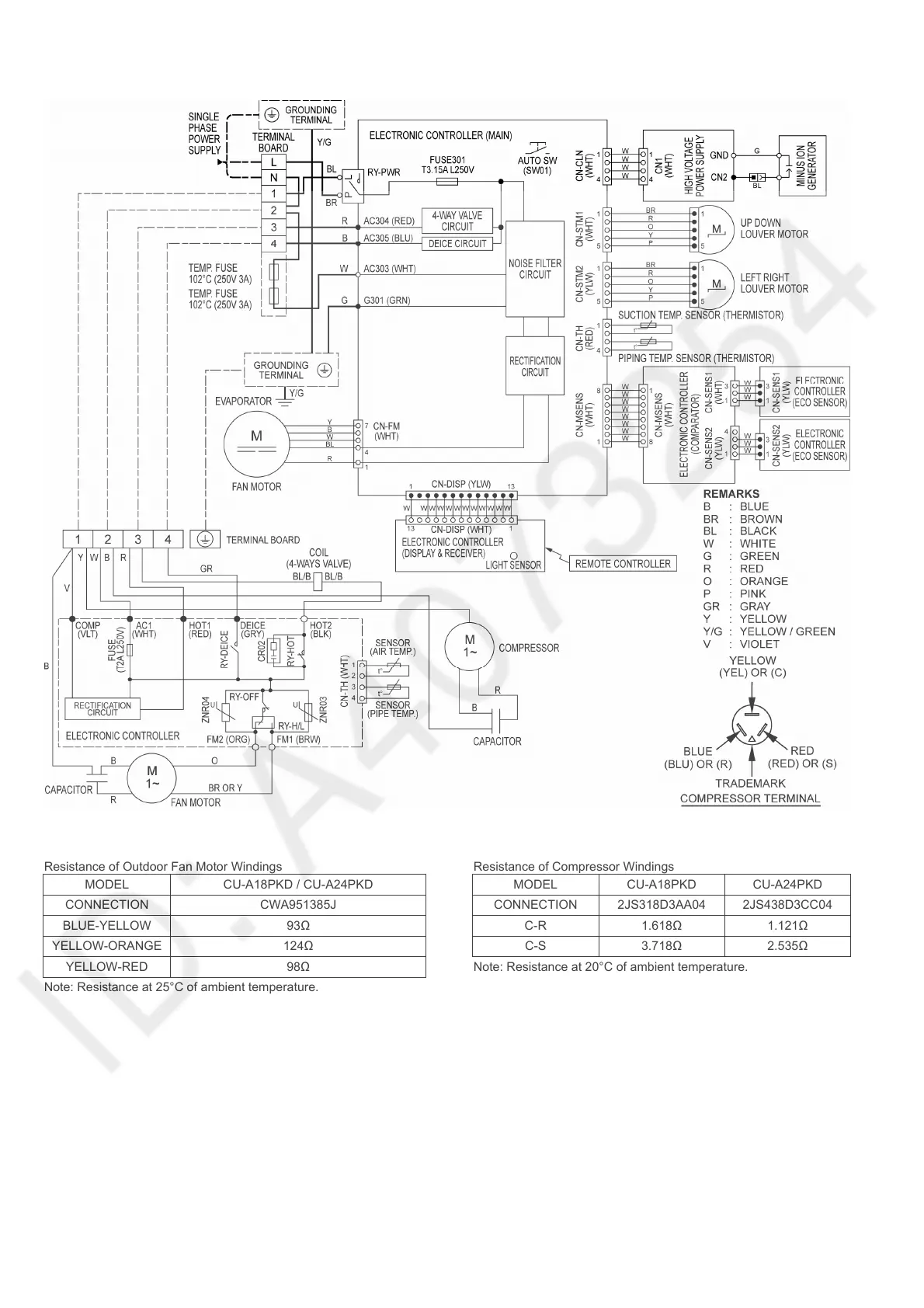

8.3 CS-A18PKD CU-A18PKD CS-A24PKD CU-A24PKD
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-A18PKD / CU-A24PKD MODEL CU-A18PKD CU-A24PKD
CONNECTION CWA951385J CONNECTION 2JS318D3AA04 2JS438D3CC04
BLUE-YELLOW 93Ω C-R 1.618Ω 1.121Ω
YELLOW-ORANGE 124Ω C-S 3.718Ω 2.535Ω
YELLOW-RED 98Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 25°C of ambient temperature.
