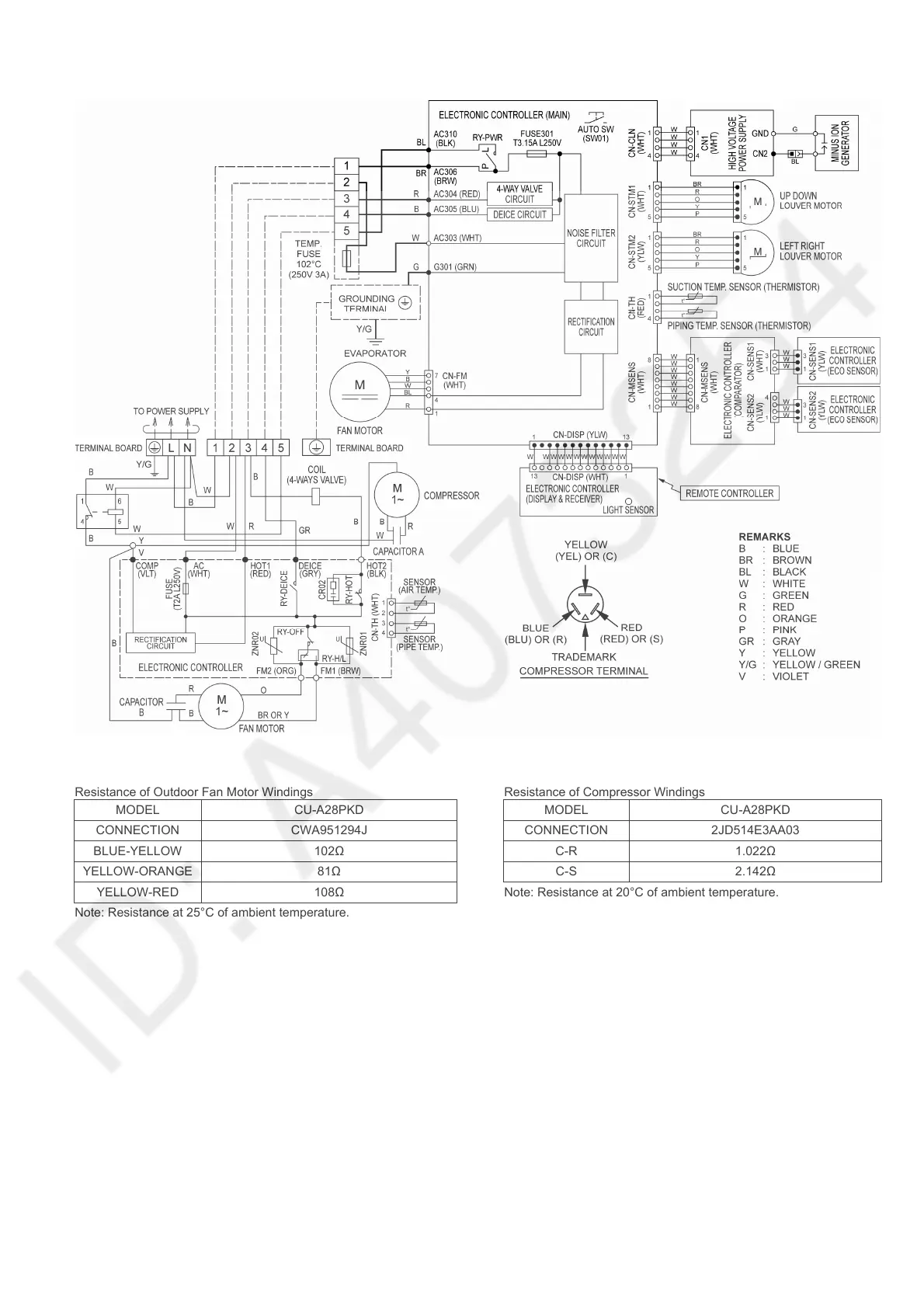

8.4 CS-A28PKD CU-A28PKD
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-A28PKD MODEL CU-A28PKD
CONNECTION CWA951294J CONNECTION 2JD514E3AA03
BLUE-YELLOW 102Ω C-R 1.022Ω
YELLOW-ORANGE 81Ω C-S 2.142Ω
YELLOW-RED 108Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 25°C of ambient temperature.
