Panasonic CS-A9PKD Service Manual

66
For CS-A18PK, CS-A24PK and CS-A28PK

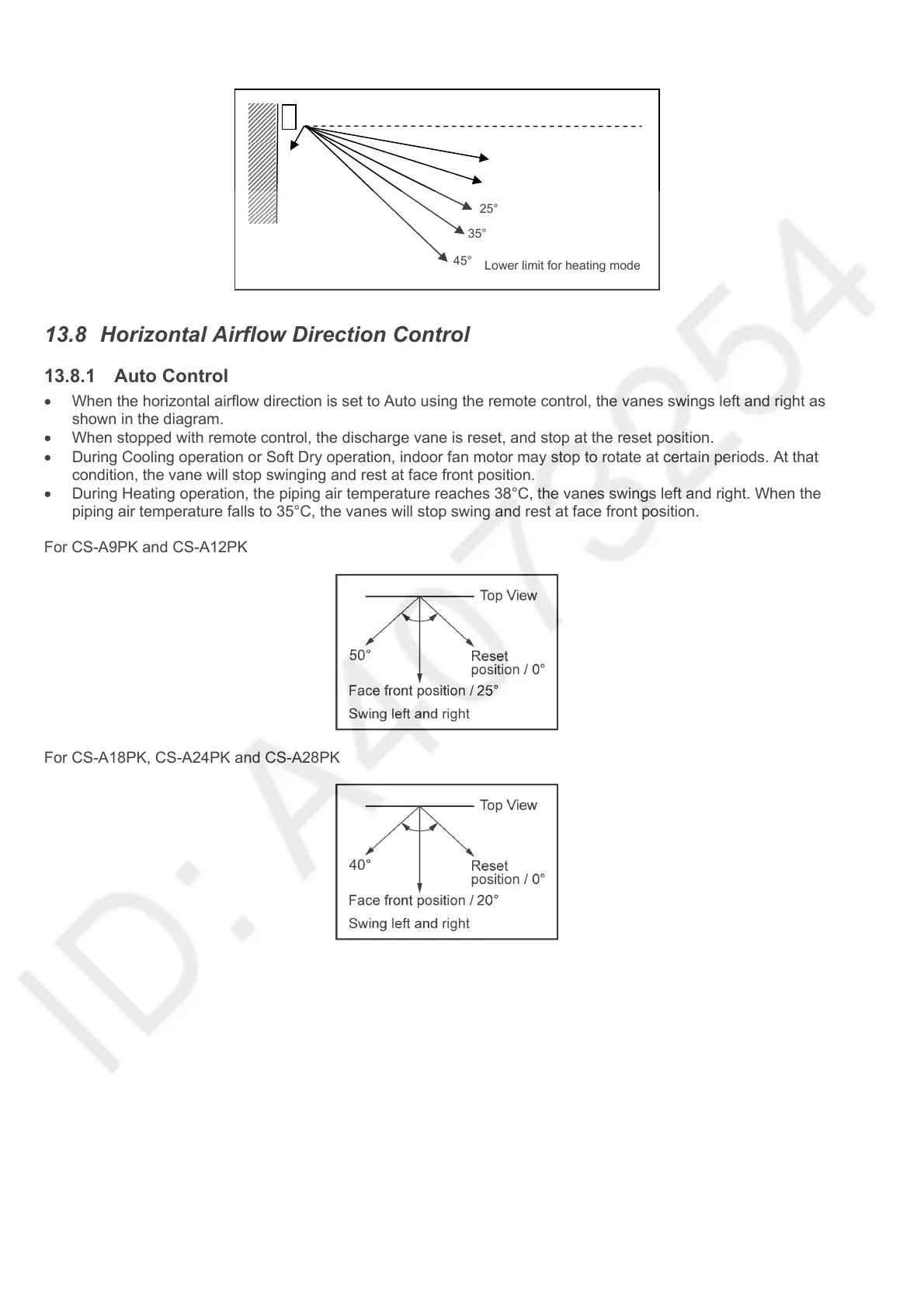

13.8 Horizontal Airflow Direction Control
13.8.1 Auto Control
• When the horizontal airflow direction is set to Auto using the remote control, the vanes swings left and right as
shown in the diagram.
• When stopped with remote control, the discharge vane is reset, and stop at the reset position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the vane will stop swinging and rest at face front position.
• During Heating operation, the piping air temperature reaches 38°C, the vanes swings left and right. When the
piping air temperature falls to 35°C, the vanes will stop swing and rest at face front position.
For CS-A9PK and CS-A12PK
For CS-A18PK, CS-A24PK and CS-A28PK
Closing
position
/ 140°
Lower limit for heating mode
Horizontal
5°
15°
35°
25°
45°
Upper limit for
heating mode
