Panasonic CS-A9PKD Service Manual

5

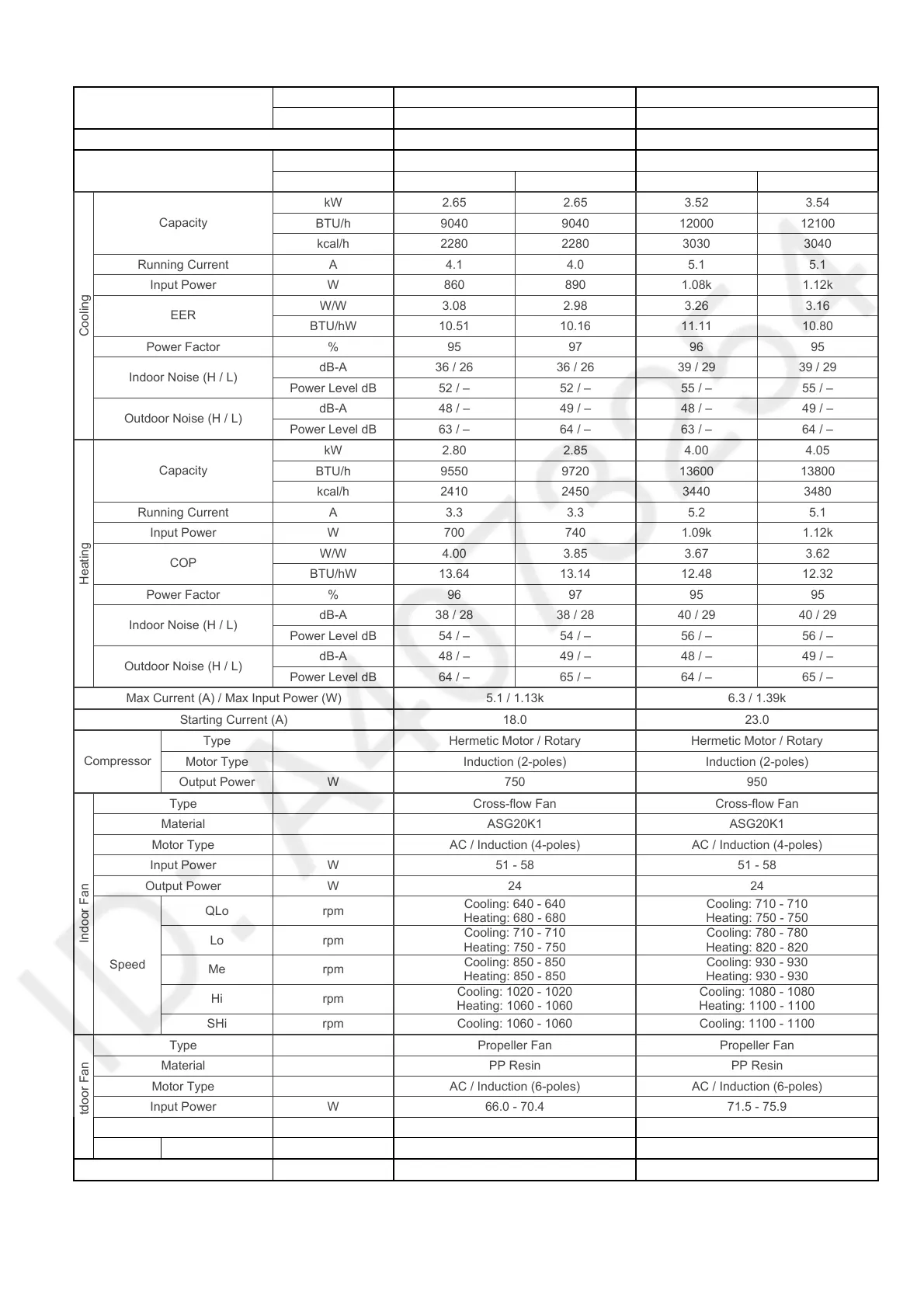

2. Specification
Indoor CS-A9PKD CS-A12PKD
Model
Outdoor CU-A9PKD CU-A12PKD
Performance Test Condition NEW JIS NEW JIS
Phase, Hz Single, 50 Single, 50
Power Supply
V 220 230 220 230
kW 2.65 2.65 3.52 3.54
BTU/h 9040 9040 12000 12100
Capacity
kcal/h 2280 2280 3030 3040
Running Current A 4.1 4.0 5.1 5.1
Input Power W 860 890 1.08k 1.12k
W/W 3.08 2.98 3.26 3.16
EER
BTU/hW 10.51 10.16 11.11 10.80
Power Factor % 95 97 96 95
dB-A 36 / 26 36 / 26 39 / 29 39 / 29
Indoor Noise (H / L)
Power Level dB 52 / – 52 / – 55 / – 55 / –
dB-A 48 / – 49 / – 48 / – 49 / –
Cooling
Outdoor Noise (H / L)
Power Level dB 63 / – 64 / – 63 / – 64 / –
kW 2.80 2.85 4.00 4.05
BTU/h 9550 9720 13600 13800
Capacity
kcal/h 2410 2450 3440 3480
Running Current A 3.3 3.3 5.2 5.1
Input Power W 700 740 1.09k 1.12k
W/W 4.00 3.85 3.67 3.62
COP
BTU/hW 13.64 13.14 12.48 12.32
Power Factor % 96 97 95 95
dB-A 38 / 28 38 / 28 40 / 29 40 / 29
Indoor Noise (H / L)
Power Level dB 54 / – 54 / – 56 / – 56 / –
dB-A 48 / – 49 / – 48 / – 49 / –
Heating
Outdoor Noise (H / L)
Power Level dB 64 / – 65 / – 64 / – 65 / –
Max Current (A) / Max Input Power (W) 5.1 / 1.13k 6.3 / 1.39k
Starting Current (A) 18.0 23.0
Type Hermetic Motor / Rotary Hermetic Motor / Rotary
Motor Type Induction (2-poles) Induction (2-poles)
Compressor
Output Power W 750 950
Type Cross-flow Fan Cross-flow Fan
Material ASG20K1 ASG20K1
Motor Type AC / Induction (4-poles) AC / Induction (4-poles)
Input Power W 51 - 58 51 - 58
Output Power W 24 24
QLo rpm
Cooling: 640 - 640
Heating: 680 - 680
Cooling: 710 - 710
Heating: 750 - 750
Lo rpm
Cooling: 710 - 710
Heating: 750 - 750
Cooling: 780 - 780
Heating: 820 - 820
Me rpm
Cooling: 850 - 850
Heating: 850 - 850
Cooling: 930 - 930
Heating: 930 - 930
Hi rpm
Cooling: 1020 - 1020
Heating: 1060 - 1060
Cooling: 1080 - 1080
Heating: 1100 - 1100
Indoor Fan
Speed
SHi rpm Cooling: 1060 - 1060 Cooling: 1100 - 1100
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Motor Type AC / Induction (6-poles) AC / Induction (6-poles)
Input Power W 66.0 - 70.4 71.5 - 75.9
Output Power W 30 38
Outdoor Fan
Speed Hi rpm 800 - 815 830 - 840
Moisture Removal L/h (Pt/h) 1.6 (3.4) 2.0 (4.2)
