13.7 Vertical Airflow Direction Control
13.7.1 Auto Control
(Cooling and Soft Dry Operation Condition)
• When the vertical airflow direction is set to Auto using the remote control, the louver swings up and down as
shown in the diagram.
• When stops operation using the remote control, the discharge vent is reset and stops at the closing position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the louver will stop swinging.

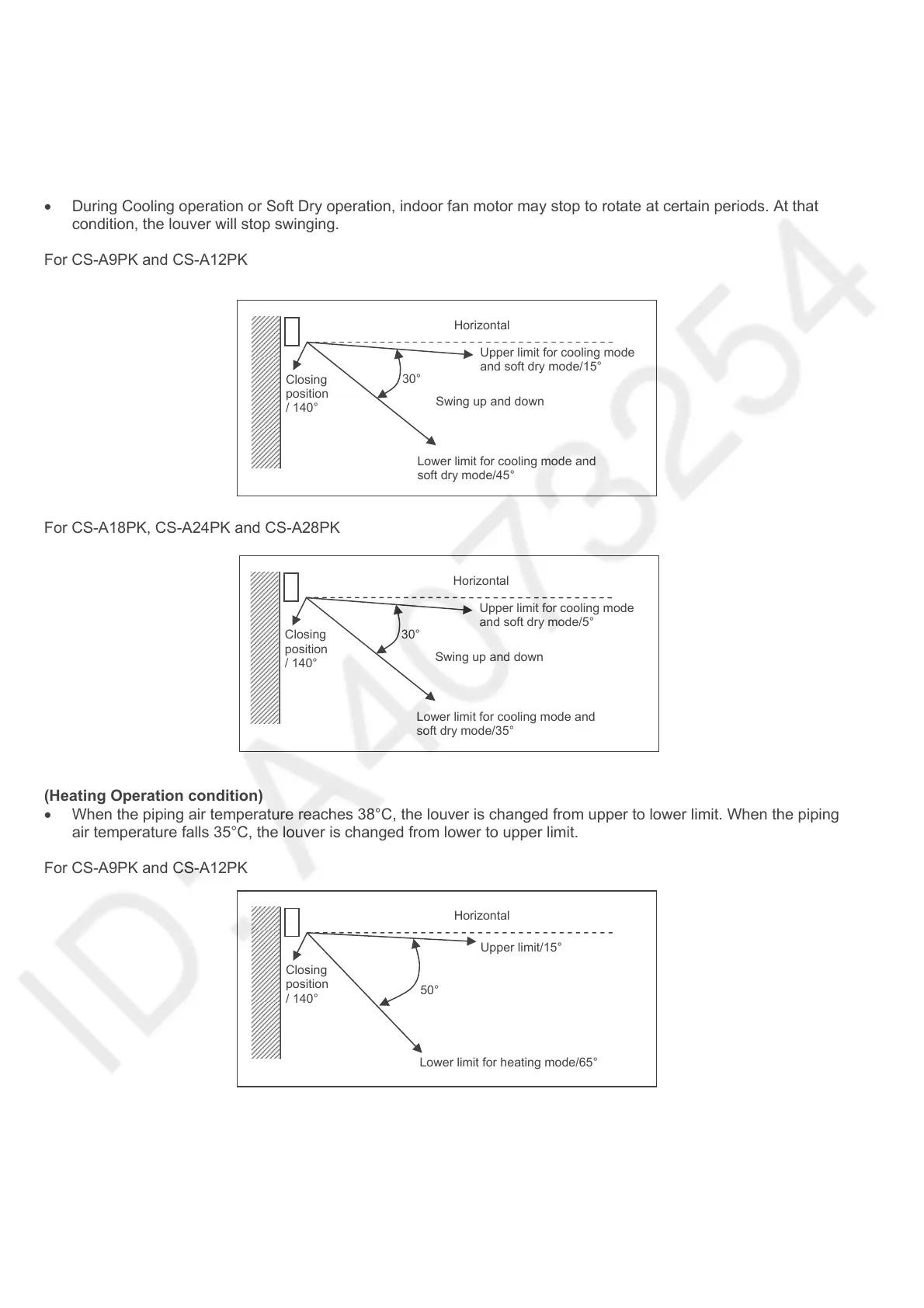

For CS-A9PK and CS-A12PK
For CS-A18PK, CS-A24PK and CS-A28PK
(Heating Operation condition)
• When the piping air temperature reaches 38°C, the louver is changed from upper to lower limit. When the piping
air temperature falls 35°C, the louver is changed from lower to upper limit.
For CS-A9PK and CS-A12PK
Upper limit for cooling mode
and soft dry mode/15°
30°
Closing
position
/ 140°
Swing up and down
Lower limit for cooling mode and
soft dry mode/45°
Horizontal
50°
Closing
position
/ 140°
Lower limit for heating mode/65°
Horizontal
Upper limit/15°
Upper limit for cooling mode
and soft dry mode/5°
30°
Closing
position
/ 140°
Swing up and down
Lower limit for cooling mode and
soft dry mode/35°
Horizontal
