Panasonic CS-Z20TKR User Manual

88
43°C
40°C
0° Top View
2
3
1
4
5
B: fix front
A: swing
Indoor Heat Exchanger
Temperature

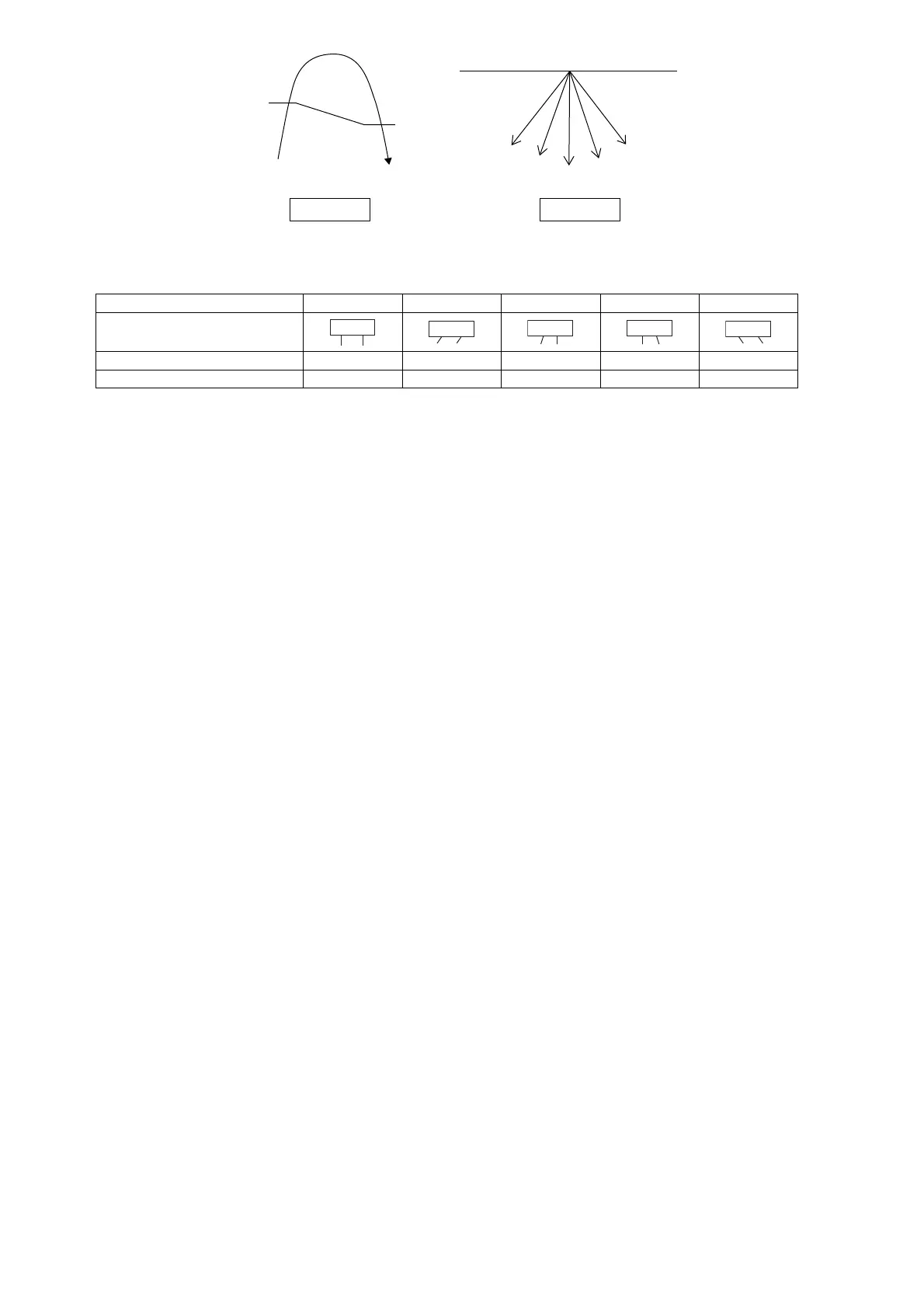

Figure 1 Figure 2
 Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below
and the positions of the vane are as Figure 2 above.
Pattern 1 2 3 4 5
Airflow Direction Patterns at
Remote Control
Vane Angle (°) (Z20/25/35/42TK) 90 65 77.5 102.5 115
Vane Angle (°) (Z50/60/71/80TK) 90 70 80 100 110
* The vertical vane angle tolerance is within +/- 5 degree.
14.5 Quiet Operation (Cooling Mode/Cooling Area of Dry Mode)
 Purpose
o To provide quiet cooling operation compare to normal operation.
 Control condition
o Quiet operation start condition
 When “QUIET” button at remote control is pressed.
o Quiet operation stop condition
 When one of the following conditions is satisfied, quiet operation stops:
 POWERFUL/QUIET button is pressed again.
 Stop by OFF/ON switch.
 Timer “off” activates.
 Mild Dry button is pressed.
 ECONAVI button is pressed.
 iAUTO-X button is pressed.
 When quiet operation is stopped, operation is shifted to normal operation with previous setting.
 When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.
 When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.
 During quiet operation, if timer “on” activates, quiet operation maintains.
 After off, when on back, quiet operation is not memorized.
 Control contents
o Fan speed is changed from normal setting to quiet setting of respective fan speed.
o Fan speed for quiet operation is reduced from setting fan speed.
14.6 Quiet Operation (Heating)
 Purpose
o To provide quiet heating operation compare to normal operation.
 Control condition
o Quiet operation start condition
 When “QUIET” button at remote control is pressed.
o Quiet operation stop condition
 When one of the following conditions is satisfied, quiet operation stops:
 POWERFUL/QUIET button is pressed again.
 Stop by OFF/ON switch.
 Timer “off” activates.
