Panasonic KX-NS500 Sales Guide

Introduction

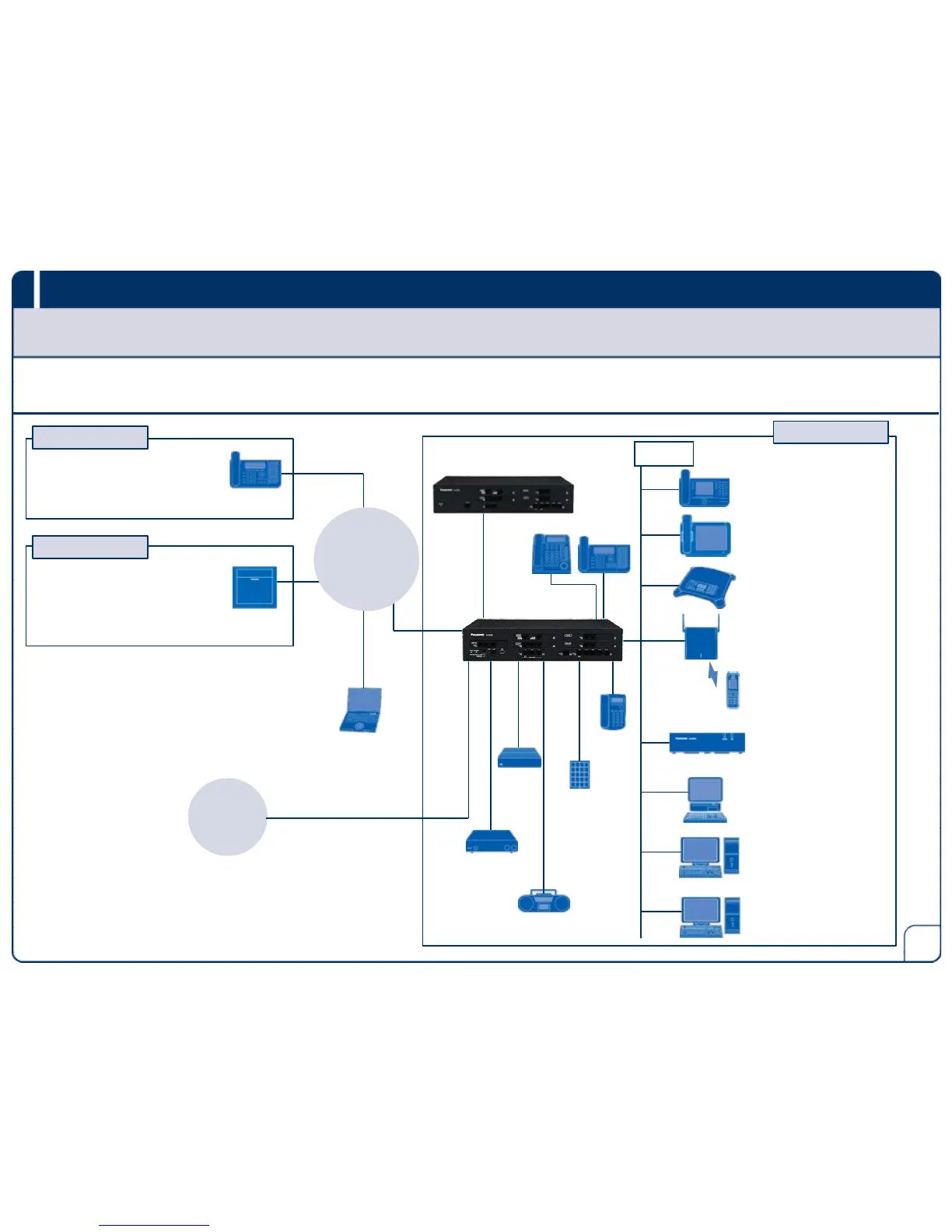

System Connection Diagram
Analogue Line/
E1/PRI (30 ch)
UPS
BGM/
music on hold
Doorphone/
door opener
SLT/
FAX
IP proprietary phones
SIP phones
IP conferencing phones
IP cell stations/
SIP cell stations
Portable stations/
SIP portable stations
PC (client)
-CA client
-IP softphones
IP proprietary phones/
SIP phones etc.
QSIG Networking
-KX-NS series
-KX-NCP series
-KX-TDE series
-KX-TDA100D
Remote maintenance PC
Head Office
Branch Office
Branch Office
Amplifier/
pager/
speaker
E1/PRI Trunk Adaptor
Smart Hybrid PBX
KX-NS500
14
SIP Trunk/
PSTN/
ISDN
Web maintenance
console
CTI server
IP Network/
ITSP
Expansion cabinet
DPT
KX-NS520
SIP
LAN
Existing equipment from Panasonic and trunks can continue to be used, and the legacy capacity can easily
be expanded simply by connecting an expansion cabinet.
APT

Panasonic KX-NS500 Specifications

General

Analog Extensions	Up to 64
VoIP Support	Yes
System Type	Hybrid IP-PBX
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)
Maximum Extensions	288
IP Extensions	128
VoIP Channels	64
SIP Trunks	64
Networking	Yes, supports networking
Built-in Applications	Call Center
Expandability	Yes, via expansion cards and cabinets
Supported Protocols	SIP, H.323, MGCP
Dimensions	430 x 88 x 367 mm
