Panasonic KX-NS500 Sales Guide

Appendix
Product Lineup - Hardware
Option Unit in Main Unit
Component Model Description Installed in
DSP
DSP S (63 resources) KX-NS5110
VoIP DSP Card (S Type)
DSP Card Slot
DSP M (127 resources) KX-NS5111
VoIP DSP Card (M Type)
DSP L (254 resources) KX-NS5112
VoIP DSP Card (L Type)
Storage Memory
For VM,
ACD Report, SMDR
expansion
XS (40 hours) KX-NS5134 Storage Memory (XS Type)
Storage Memory Card Slot
S (200 hours) KX-NS5135 Storage Memory (S Type)
M (400 hours) KX-NS5136 Storage Memory (M Type)
Trunk
LCOT6 KX-NS5180 6-Port Analogue Trunk Card
Trunk Slot
PRI30/E1 KX-NS5290CE
PRI30 / E1 Trunk Card
DPH2 KX-NS5162 Doorphone Interface Card
Extension
DHLC4 KX-NS5170 4-Port Digital Hybrid Extension Card
Extension Slot
DLC8 KX-NS5171 8-Port Digital Hybrid Extension Card
DLC16 KX-NS5172 16-Port Digital Hybrid Extension Card
MCSLC8 KX-NS5173 8-Port SLT Card
MCSLC16 KX-NS5174 16-Port SLT Card
Expansion Master Card EXP-M KX-NS5130 3-ports Expansion Master Card
EXP-M Slot
Remote Modem RMT KX-TDA0196 Remote Modem Card
RMT Slot
50

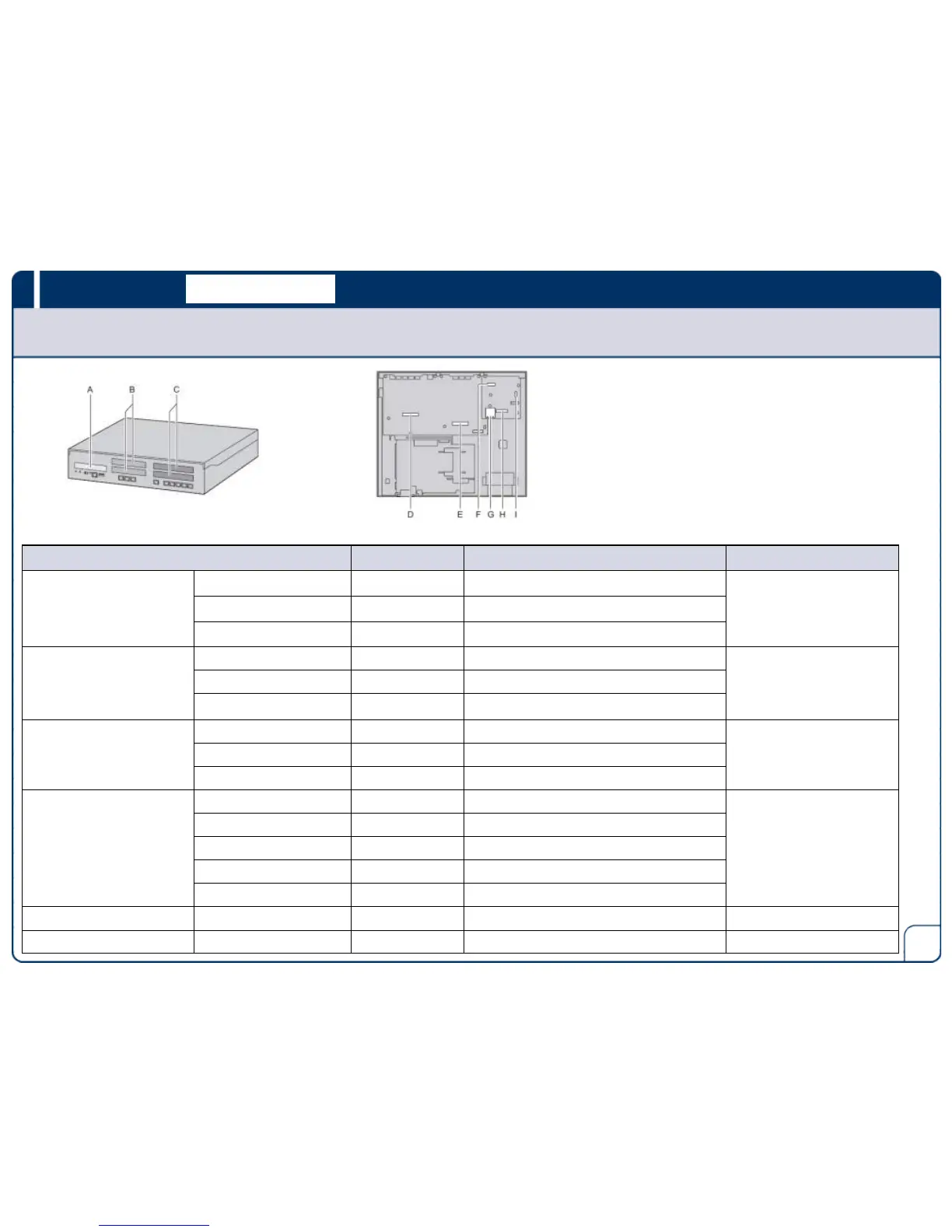

Main Unit KX-NS500
A. Front cover plate for the EXP-M Slot
B. Front cover plates for Trunk/Doorphone Card Slots
C. Front cover plates for the Extension Card Slots
D. Extension Card Slot
E. Trunk/Doorphone Card Slot
F. EXP-M Card Slot
G. SD Card Slot
H. DSP Card Slot
I. RMT Card Slot
Specifications

Panasonic KX-NS500 Specifications

General

Analog Extensions	Up to 64
VoIP Support	Yes
System Type	Hybrid IP-PBX
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)
Maximum Extensions	288
IP Extensions	128
VoIP Channels	64
SIP Trunks	64
Networking	Yes, supports networking
Built-in Applications	Call Center
Expandability	Yes, via expansion cards and cabinets
Supported Protocols	SIP, H.323, MGCP
Dimensions	430 x 88 x 367 mm
