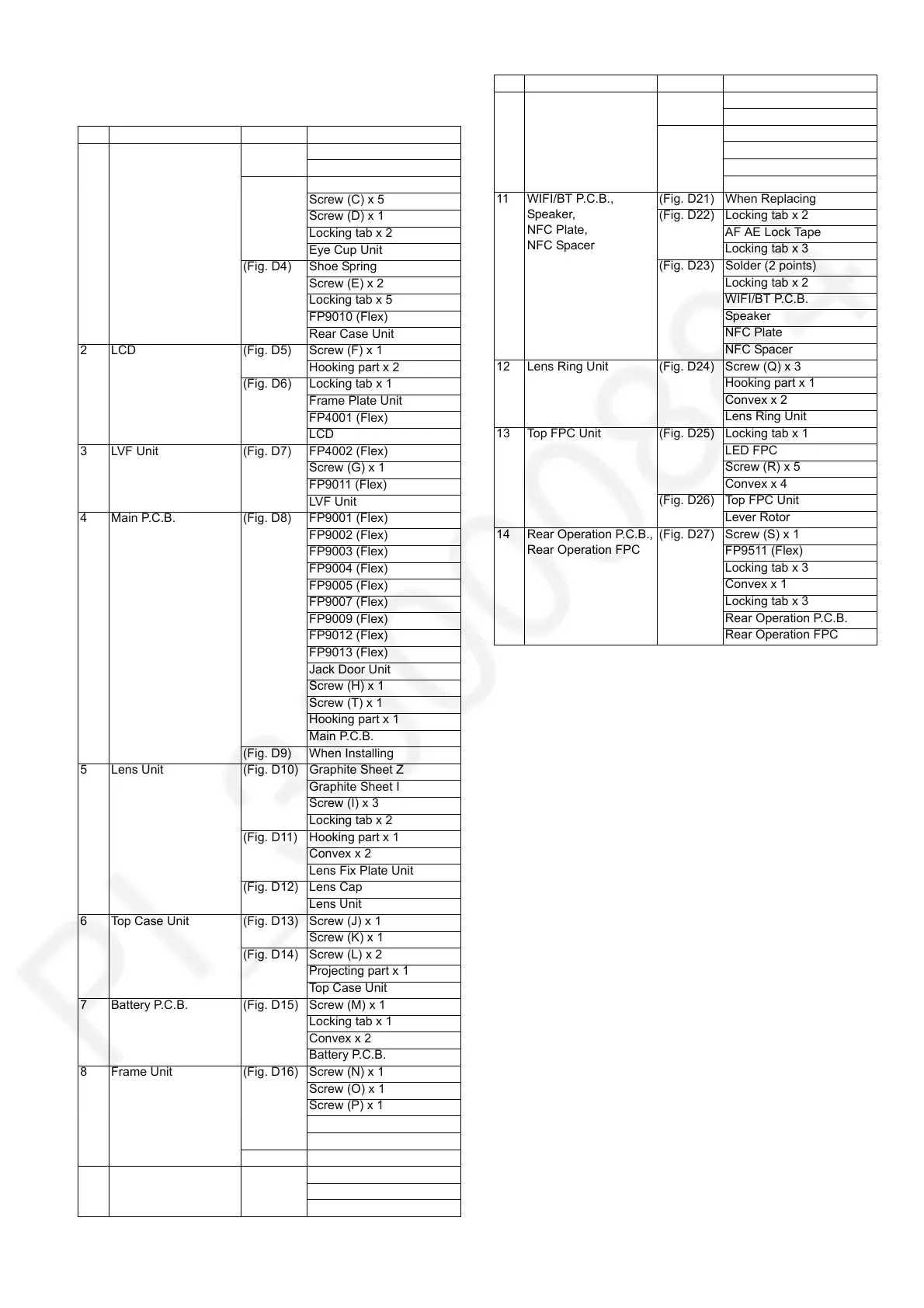

9.3. Disassembly Procedure
No. Item Fig. Removal
1 Rear Case Unit (Fig. D2) Locking tab x 1
Screw (A) x 1
(Fig. D3) Screw (B) x 1
Screw (C) x 5
Screw (D) x 1
Locking tab x 2
Eye Cup Unit
(Fig. D4) Shoe Spring
Screw (E) x 2
Locking tab x 5
FP9010 (Flex)
Rear Case Unit
2 LCD (Fig. D5) Screw (F) x 1
Hooking part x 2
(Fig. D6) Locking tab x 1
Frame Plate Unit
FP4001 (Flex)
LCD
3 LVF Unit (Fig. D7) FP4002 (Flex)
Screw (G) x 1
FP9011 (Flex)
LVF Unit
4 Main P.C.B. (Fig. D8) FP9001 (Flex)
FP9002 (Flex)
FP9003 (Flex)
FP9004 (Flex)
FP9005 (Flex)
FP9007 (Flex)
FP9009 (Flex)
FP9012 (Flex)
FP9013 (Flex)
Jack Door Unit
Screw (H) x 1
Screw (T) x 1
Hooking part x 1
Main P.C.B.
(Fig. D9) When Installing
5 Lens Unit (Fig. D10) Graphite Sheet Z
Graphite Sheet I
Screw (I) x 3
Locking tab x 2
(Fig. D11) Hooking part x 1
Convex x 2
Lens Fix Plate Unit
(Fig. D12) Lens Cap
Lens Unit
6 Top Case Unit (Fig. D13) Screw (J) x 1
Screw (K) x 1
(Fig. D14) Screw (L) x 2
Projecting part x 1
Top Case Unit
7 Battery P.C.B. (Fig. D15) Screw (M) x 1
Locking tab x 1
Convex x 2
Battery P.C.B.
8 Frame Unit (Fig. D16) Screw (N) x 1
Screw (O) x 1
Screw (P) x 1
Strap Holder (L)
Locking tab x 2
(Fig. D17) Frame Unit
9 Battery Door Unit (Fig. D18) Battery Door Shaft
Battery Door Spring
Battery Door Unit
10 Battery Case (Fig. D19) Graphite Sheet Z
Locking tab x 4
(Fig. D20) Battery Out Spring
Battery Lock Knob
Battery Lock Spring
Battery Case
11 WIFI/BT P.C.B.,
Speaker,
NFC Plate,
NFC Spacer
(Fig. D21) When Replacing
(Fig. D22) Locking tab x 2
AF AE Lock Tape
Locking tab x 3
(Fig. D23) Solder (2 points)
Locking tab x 2
WIFI/BT P.C.B.
Speaker
NFC Plate
NFC Spacer
12 Lens Ring Unit (Fig. D24) Screw (Q) x 3
Hooking part x 1
Convex x 2
Lens Ring Unit
13 Top FPC Unit (Fig. D25) Locking tab x 1
LED FPC
Screw (R) x 5
Convex x 4
(Fig. D26) Top FPC Unit
Lever Rotor
14 Rear Operation P.C.B.,
Rear Operation FPC
(Fig. D27) Screw (S) x 1
FP9511 (Flex)
Locking tab x 3
Convex x 1
Locking tab x 3
Rear Operation P.C.B.
Rear Operation FPC
No. Item Fig. Removal
