3.5. How to Define the Model Suffix (NTSC or PAL model)
There are several types of DC-LX100M2 regardless of the colours.
• a) DC-LX100M2 (Japan domestic model)
• b) DC-LX100M2P/PP
• c) DC-LX100M2EB/EF/EG/EP
• d) DC-LX100M2EE
• e) DC-LX100M2GN
• f) DC-LX100M2GD
• g) DC-LX100M2GT
• h) DC-LX100M2GK
• i) DC-LX100M2GA/GC/GH
What is the difference is that the “Initial Settings” data which is stored in Flash-ROM mounted on Main P.C.B..

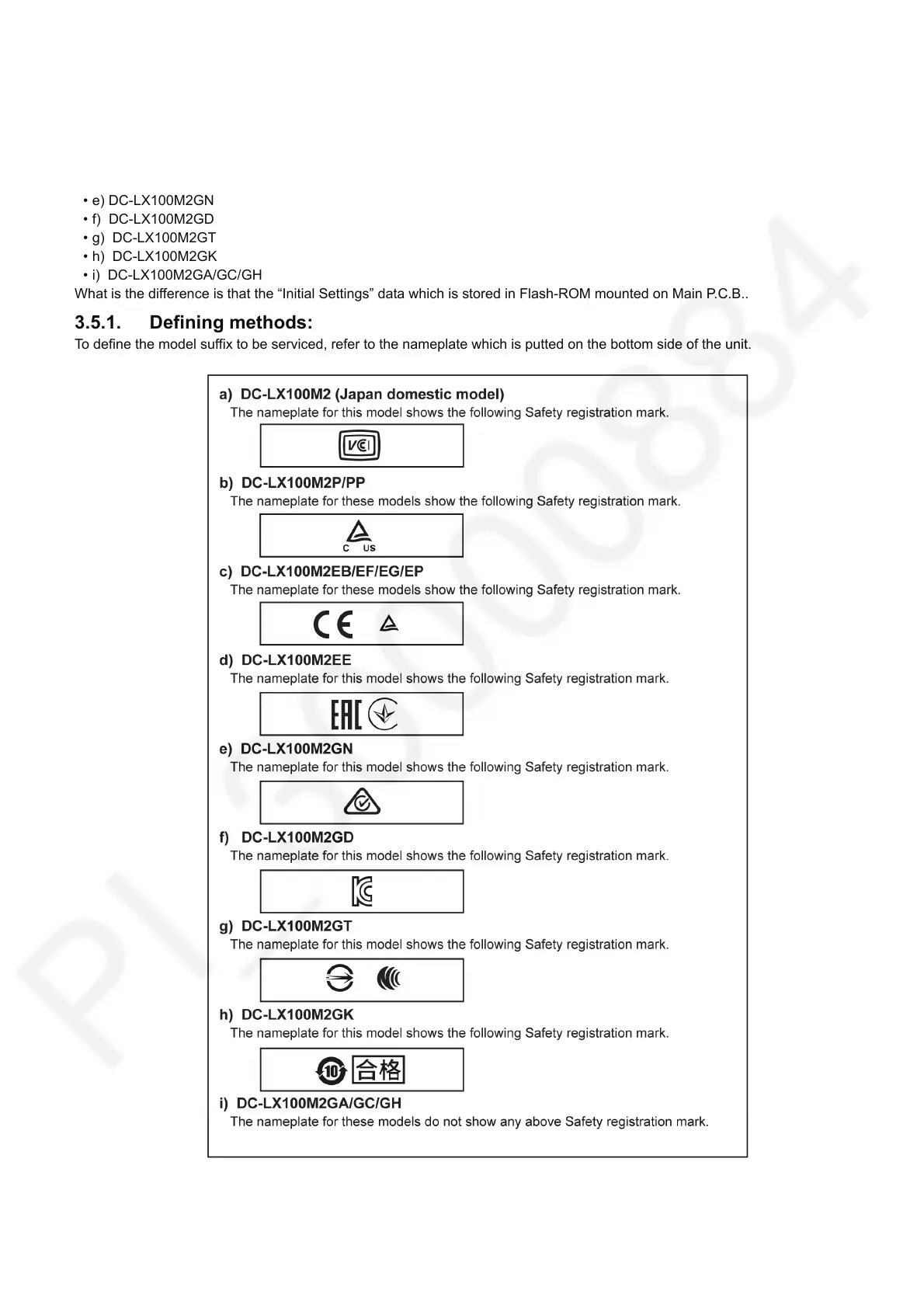

3.5.1. Defining methods:
To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the unit.
NOTE:
After replacing the Main P.C.B., be sure to achieve adjustment.
