20

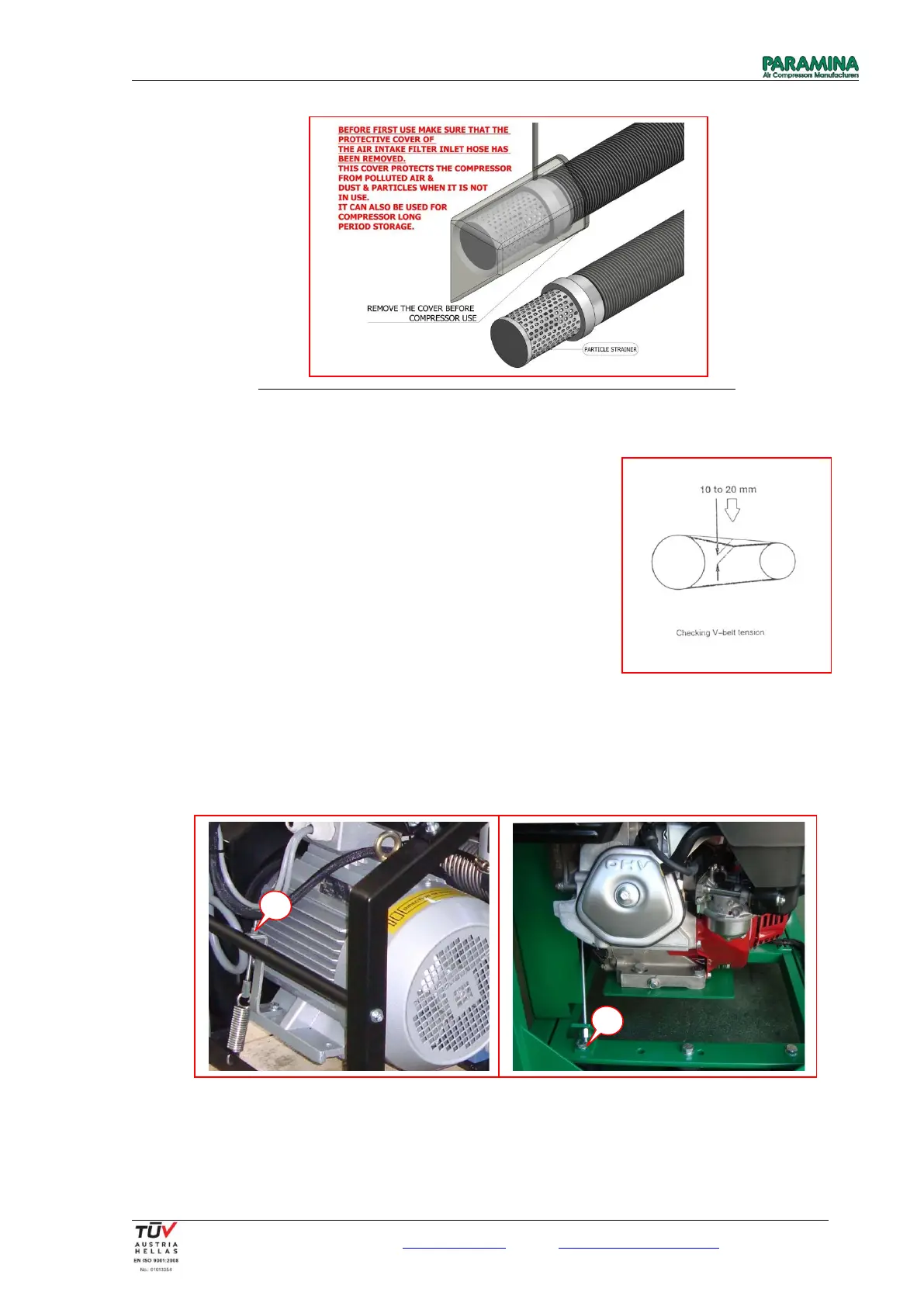

Protective cover for air intake filter inlet hose of petrol and diesel models.
Belt adjustment
Check tension of belts after the first 20 hours of operation and
then every 100 hours. Pressing in the center of the belt’s length
applying 5 Kg of force, it should not give way more than 20 mm.
In order to adjust the belts, screw the bolt (1) so as to adjust the spring until the belt reaches proper tension as per
drawing above.
