Option 3 concerns standard equipment of Typhoon 18 compressors – Ø110x495 BA Filter:
Ø110 x 495 (max. working pressure 480 bar)
Replacement of active carbon – molecular sieve cartridge
1. Unscrew the filter head counter clockwise.
2. Remove the filter head and the spring.
3. Place the special handle on top of the A.C.-M.S cartridge.
4. Remove the A.C.-M.S. cartridge by pulling upwards with the special handle. Before throwing away the
used cartridge, do not forget to remove the cartridge connector.
5. Clean the inside of the filter housing with a clean cloth.
6. Remove the new A.C.-M.S. cartridge from their protective case. Be sure that packaging is not punctured. If
it is damaged do not use it.
7. Lay a small amount of silicone grease on the o-ring of the new A.C.-M.S. cartridge.
8. Replace the o-ring of the cartridge connector, lay a small amount of silicone grease on the new o-ring and
then screw the connector on the new A.C.-M.S. cartridge.
9. Place the new A.C.-M.S. cartridge in the filter housing and fasten it down by hand on the coalescing

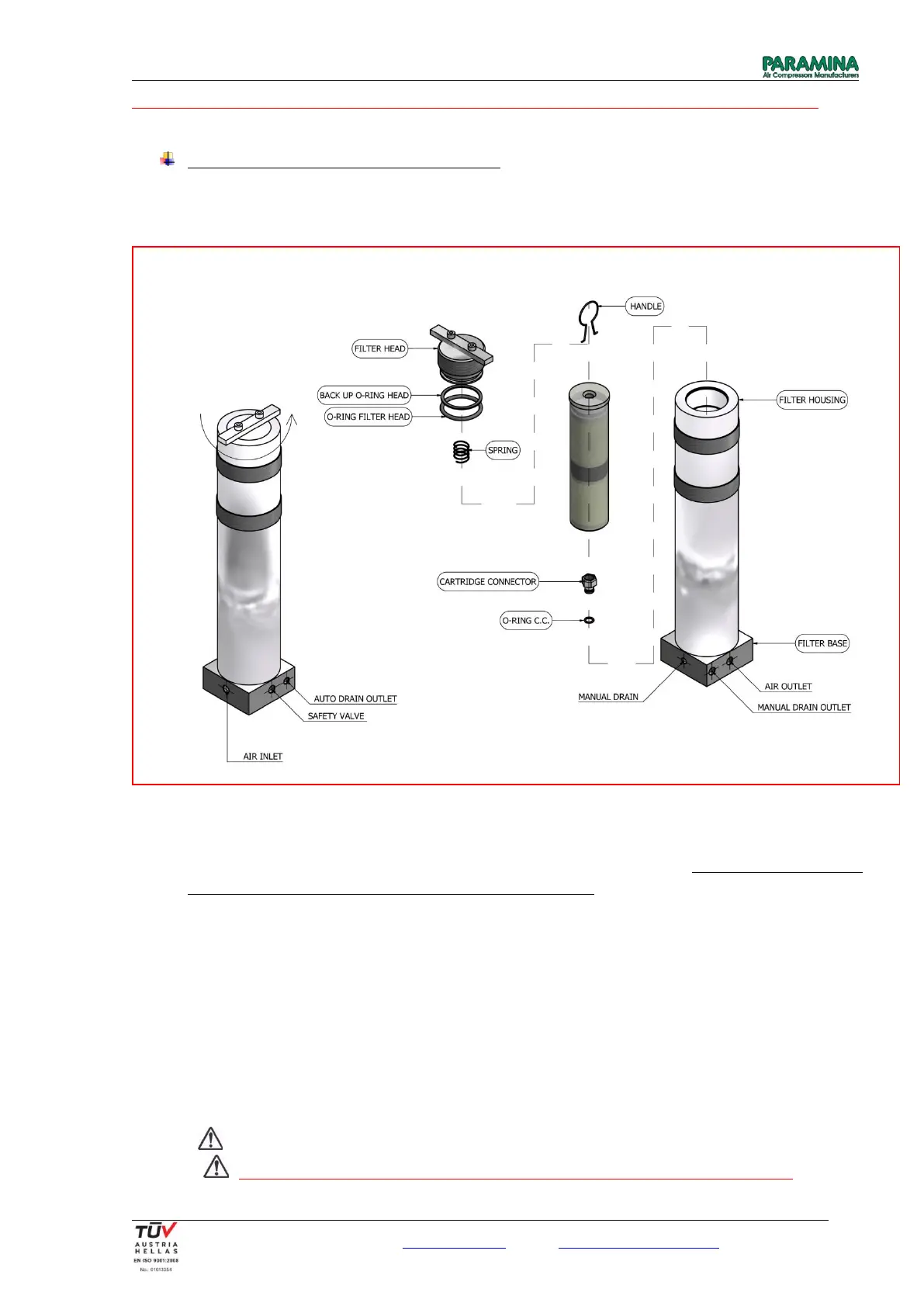

connector (see also drawing nr. B).
10. Lay a small amount of silicone grease on the o-rings of the filter head. If there is a trace of damage on the
o-rings, replace.
11. Install the spring in between the filter head and the cartridge.
12. Screw the filter head carefully by hand with light pressure until it fits evenly to the filter housing.
Do not screw really tight, while screwing cartridges or connectors inside filter’s housing.
FILTER HEAD & FILTER HOUSING SHOULD BE ADJOINED ON TOP WHEN REINSTALLING.
