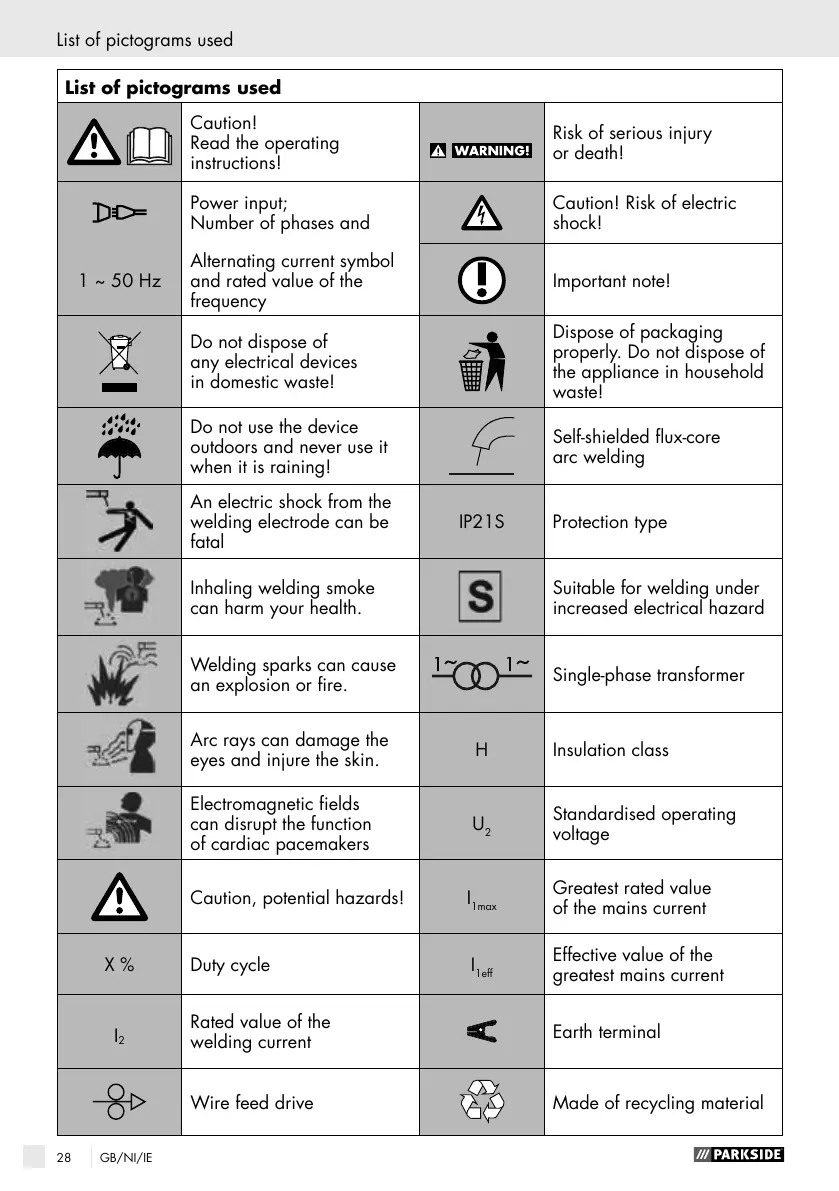

List of pictograms used
List of pictograms used
Caution!
Read the operating
instructions!
Risk of serious injury
or death!
Power input;
Number of phases and
Caution! Risk of electric
shock!
1 ~ 50 Hz
Alternating current symbol
and rated value of the
frequency
Important note!
Do not dispose of
any electrical devices
in domestic waste!
Dispose of packaging
properly. Do not dispose of
the appliance in household
waste!
Do not use the device
outdoors and never use it
when it is raining!
Self-shielded flux-core
arc welding
An electric shock from the
welding electrode can be
fatal
IP21S Protection type
Inhaling welding smoke
can harm your health.
Suitable for welding under
increased electrical hazard
Welding sparks can cause
an explosion or fire.
Single-phase transformer
Arc rays can damage the
eyes and injure the skin.
H Insulation class
Electromagnetic fields
can disrupt the function
of cardiac pacemakers
U
2
Standardised operating
voltage
Caution, potential hazards! I
1max
Greatest rated value
of the mains current
X % Duty cycle I
1eff
Effective value of the
greatest mains current
I
2
Rated value of the
welding current
Earth terminal
Wire feed drive Made of recycling material
