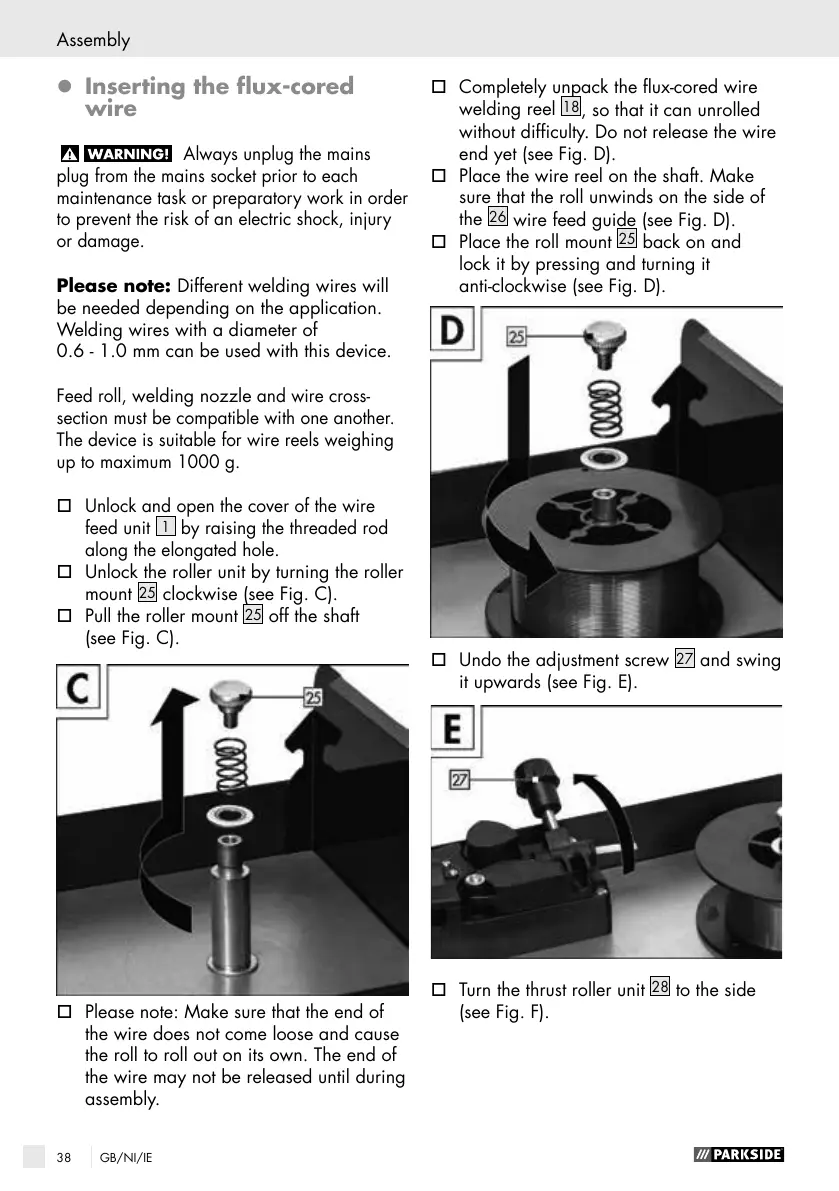

Assembly
z Inserting the flux-cored
wire
Always unplug the mains
plug from the mains socket prior to each
maintenance task or preparatory work in order
to prevent the risk of an electric shock, injury
or damage.
Please note: Different welding wires will
be needed depending on the application.
Welding wires with a diameter of
0.6 - 1.0 mm can be used with this device.
Feed roll, welding nozzle and wire cross-
section must be compatible with one another.
The device is suitable for wire reels weighing
up to maximum 1000 g.
 Unlock and open the cover of the wire
feed unit
1
by raising the threaded rod
along the elongated hole.
 Unlock the roller unit by turning the roller
mount
25
clockwise (see Fig. C).
 Pull the roller mount
25
off the shaft
(see Fig. C).
 Please note: Make sure that the end of
the wire does not come loose and cause
the roll to roll out on its own. The end of
the wire may not be released until during
assembly.
 Completely unpack the flux-cored wire
welding reel
18
, so that it can unrolled
without difficulty. Do not release the wire
end yet (see Fig. D).
 Place the wire reel on the shaft. Make
sure that the roll unwinds on the side of
the
26
wire feed guide (see Fig. D).
 Place the roll mount
25
back on and
lock it by pressing and turning it
anti-clockwise (see Fig. D).
 Undo the adjustment screw
27
and swing
it upwards (see Fig. E).
 Turn the thrust roller unit
28
to the side
(see Fig. F).
