4
IntelliFlo Installation and User’s Guide
IntelliFlo Drive Assembly and Control Panel
The IntelliFlo drive assembly consists of an operator control panel and the system electronics that drive the
230 VAC single phase (260 VAC~170 VAC) motor. The drive microprocessor controls the motor by
changing the frequency of the current it receives together with changing the voltage to control the rotational
speed.
Operator Control Panel Features
• Backwash and Rinse — Informs the user when and how to backwash filter media
• Vacuum — Can be preset using duration and flow parameters to save energy
• Filter — Allows pump to run at peak efficiency, saving users up to 90% in energy cost, based on a
pool size up to 15,000 gallons, one turn per day with a 24 hour cycle
• Feature — Ten feature modes can be programmed to control filtration duration, start and stop time,
and frequency for cleaners, water features, spas, and waterfalls
• Manual — Allows the user to override all programming and run the pump using RPM or flow
(GPM) control parameters

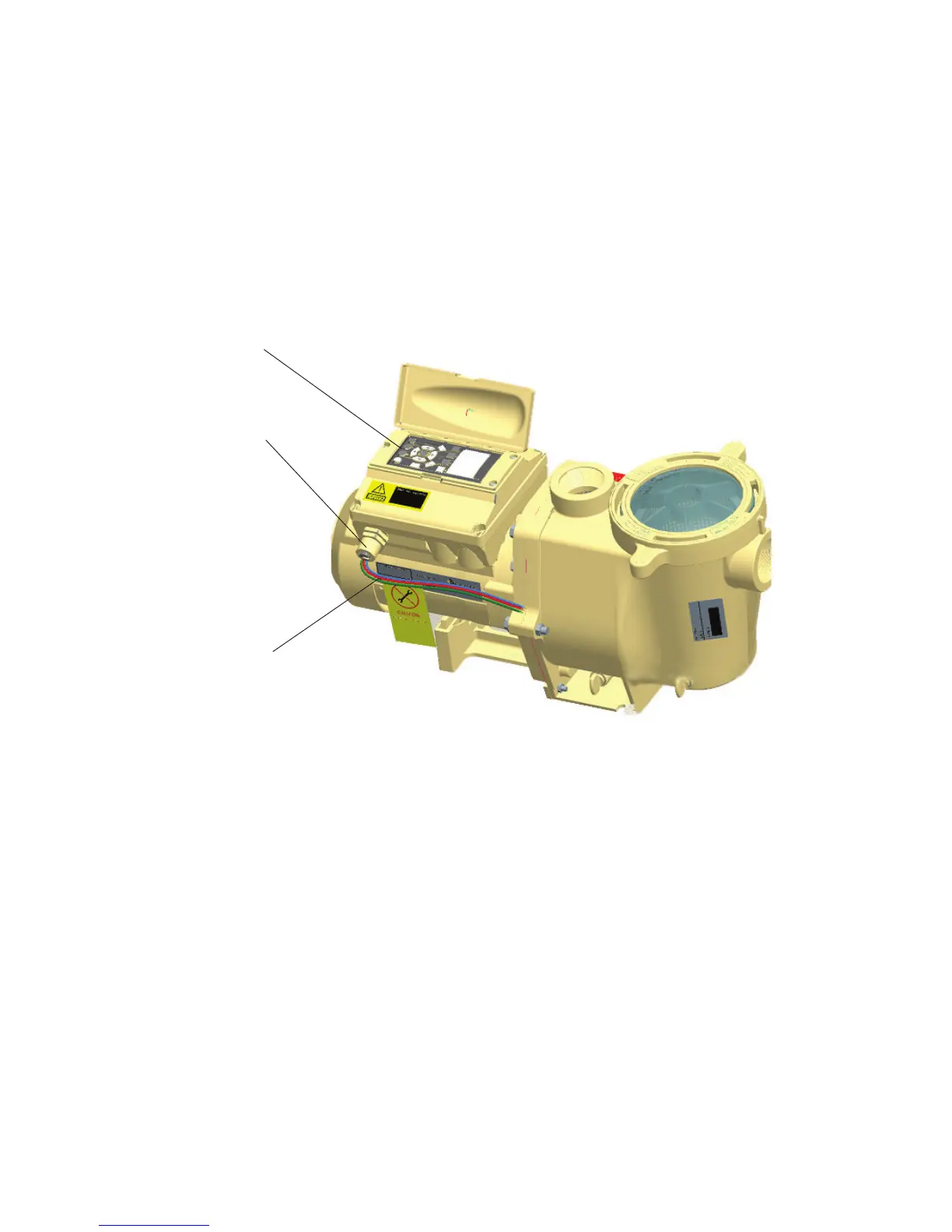

Three Wire Harness
Hot (Red), Hot (Red)
Ground (Green / Yellow)
+/- 20% of 230 Volt
¾” NPT male nipple
Operator Control
Panel, buttons and
Liquid Crystal Display
(LCD)
IntelliFlo Drive Assembly
