IntelliFlo Installation and User’s Guide

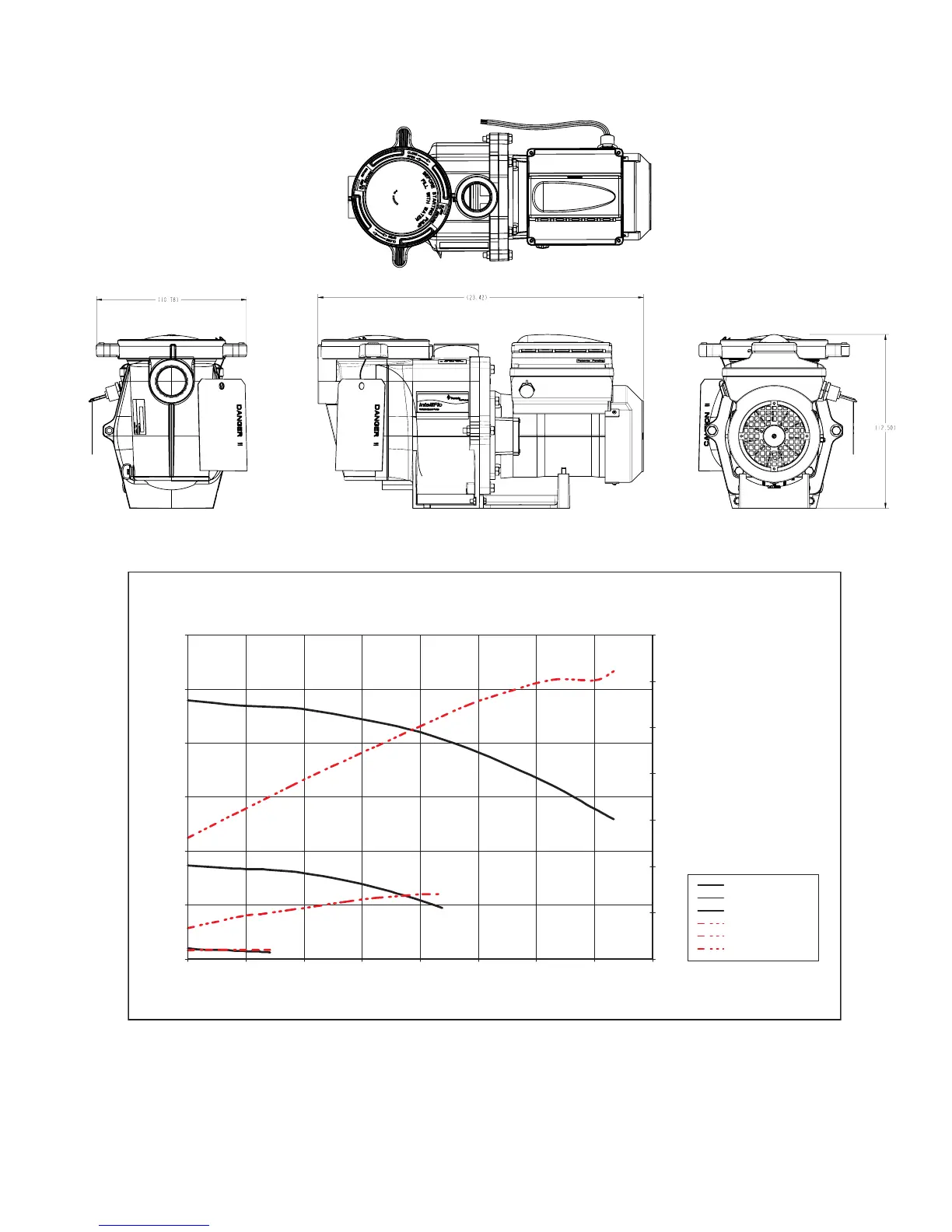

IntelliFlo Pump Dimensions
IntelliFlo Electrical Specifications
Circuit Protection: Two-pole 20 AMP device at the Electrical Panel.
Input: 230 VAC, 50/60 Hz, 3200 Watts
Intelliflo Flow and Power vs Flow Pump Curve
IntelliFlo
®
Flow and Power vs. Flow
0
20
40
60
80
100
120
0 20 40 60 80 100 120 140 160
Flow (GPM)
Head (Feet of Water)
0
0.5
1
1.5
2
2.5
3
3.5
kW
Head @ 690 RPM
Head @ 2070 RPM
Head @ 2070 RPM
Head @ 3450 RPM
Head @ 690 RPM
Power @ 690 RPM
Power @ 2070 RPM
Power @
3450
3450
RPM
Head @ 2070 RPM
Head @ 3450 RPM
Head @ 3450 RPM
Power @ 690 RPM
Head @ 690 RPM
Power @ 690 RPM
Power @ 2070 RPM
Power @ 2070 RPM
Power @ 3450 RPM
Power @ 3450 RPM
