IntelliFlo Installation and User’s Guide
IntelliFlo Motor Features
• Permanent Magnet Synchronous Motor (PMSM)
• High efficiency (3450 RPM 92% and 400 RPM 90%)
• Superior speed control
• Operates at lower temperatures due to high efficiency
• Same technology as deployed in hybrid electric vehicles
• Designed to withstand outdoor environment
• Totally Enclosed Fan Cooled
• Three-phase motor
• 56 Square Flange
• Six-Pole
• Low noise
Drive assembly and
electronics enclosure

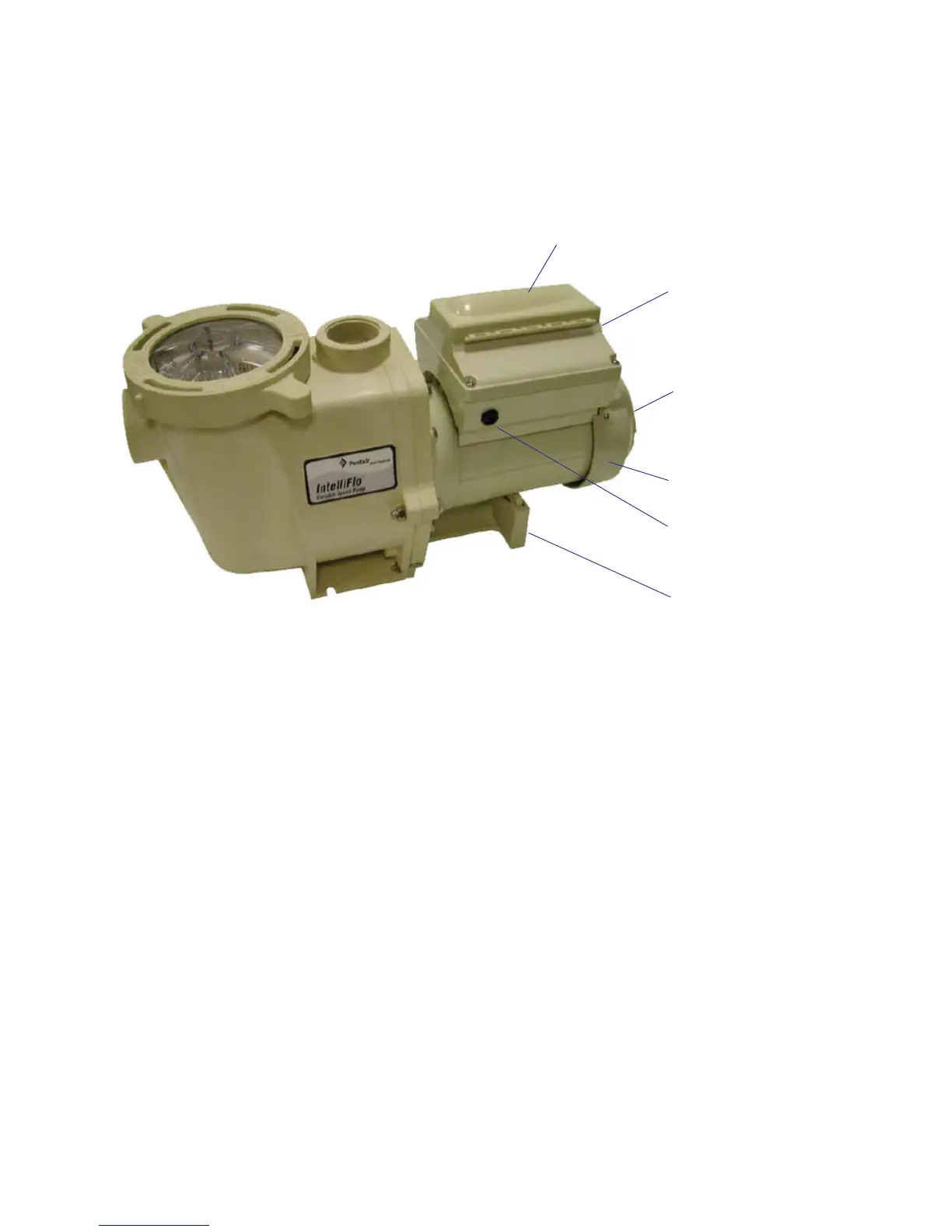

IntelliFlo Motor Assembly
Motor fan cover
Operator control panel cover
Communication Port for RS-485
(IntelliTouch and IntelliComm)
Motor stand
Motor assembly
