INTELLIFLO
®
Variable Speed Pump Installation and User’s GuideINTELLIFLO
®
Variable Speed Pump Installation and User’s Guide
PUMP OVERVIEW
The IntelliFlo
®
Variable Speed Pump can be
programmed to run at specific speeds and time
intervals for maximum operating efficiency and energy
conservation for a variety of inground pools.
External Control
Pentair Automation Systems and Communication
Centers can remotely control the IntelliFlo pump. The
pump’s communications address and other functions are
accessible from the pump’s control panel.
• The pump can operate from 450 RPM to 3450 RPM
with four preset speeds of 750, 1500, 2350 and 3110
RPM
• The pump can be adjusted from the control panel to
run at any speed between 450 RPM to 3450 RPM
for different applications
• Up to 8 programmable speeds
• Pump control panel alarm LED and error messages
warn the user against under and over voltage, high
temperature, over current and freezing
• Communicates with Pentair Automation Systems or
Communication Center via a two-wire RS-485 cable
connection
• Programmable priming mode with automatic
detection of prime for easy start-up
• Compatible with most cleaning systems, filters, and
jet action spas
• UL/CUL/NSF
• WEF Values
011028: WEF 6.1 THP 3.95
011059: WEF 7.5 THP 3.95
011060: WEF 6.9 THP 3.95
Drive Assembly and Control Panel
The IntelliFlo pump drive is designed to produce
maximum motor operational efficiency. The drive controls
the motor’s rotational speed by controlling the frequency
of the supplied current. It also protects the motor and
pump from operating outside of their intended operating
parameters.
The control panel can be mounted on the pump in four
different directions in order to provide the user the best
access. The control panel can also be mounted in a more
convenient location with the help of the keypad relocation
kit (P/N 356904Z).
Motor Features
• High-Efficiency Permanent Magnet Synchronous
Motor (PMSM)
• Superior speed control
• Operates at lower temperatures due to high
efficiency
• Designed to withstand outdoor environment
• Totally Enclosed Fan Cooled (TEFC) Motor
• 56 Square Flange
• Low noise
• RS-485 communication cable included
• IntelliComm
®
Communication Centers control
one IntelliFlo pump using the 4 External Control
programs.
• Refer to your automation system manual for
further details on how to connect and use a Pentair
Automation System with your variable speed
pump(s).
Drive Features
• Active Power Factor Correction
• UL 60730 Compliant
• Rotatable Keypad
• Easy Overhead Wiring
• High Drive Operational Efficiency

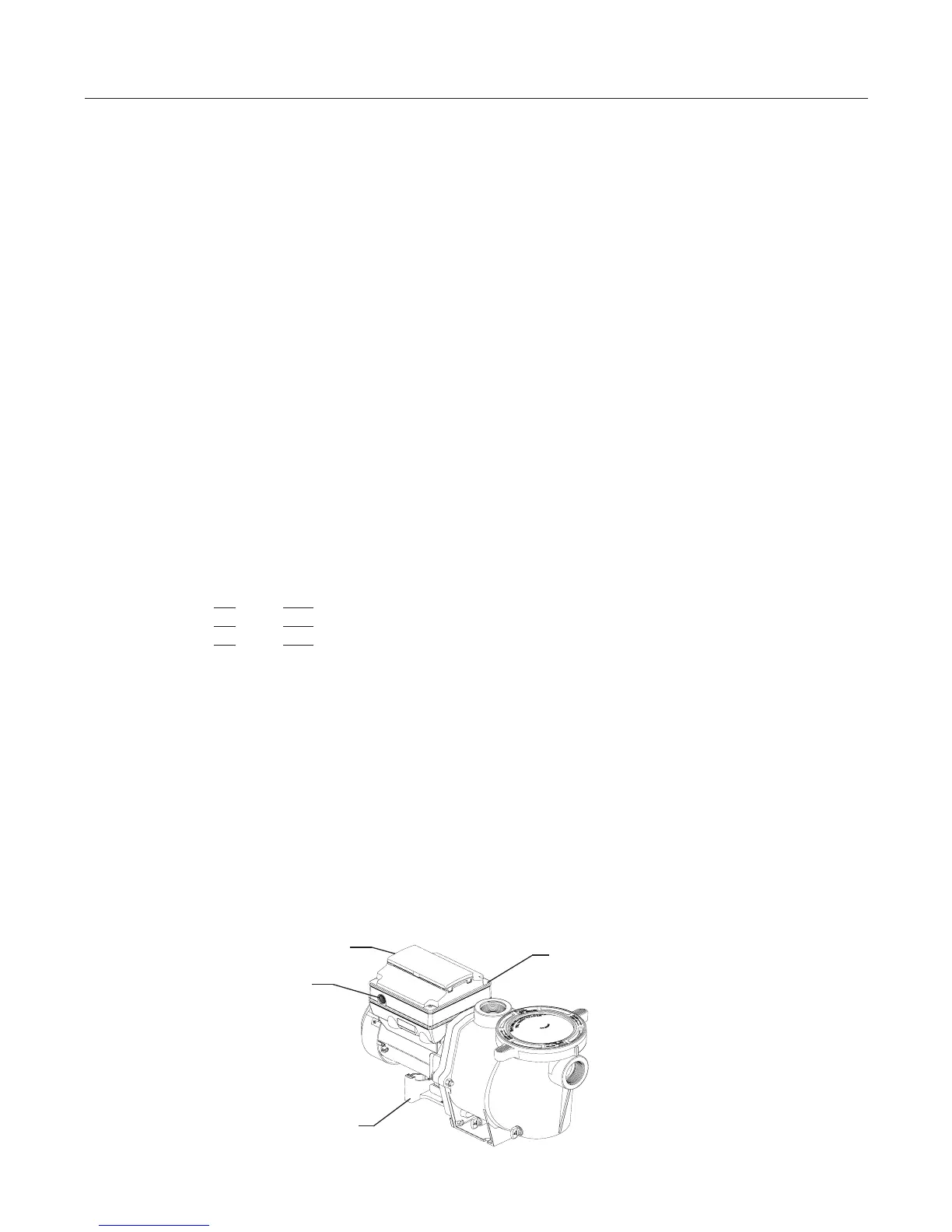

Variable Speed Drive Assembly
Communication port for connection to
automation systems or communication
centers via two-wire RS-485 cable
(not shown)
Operator Control Panel Cover
Buttons and LED (Beneath)
Strain Relief Port
for Incoming AC Power
Motor Stand
