PerkinElmer Lambda 365 User Manual

Interface Setup . 39

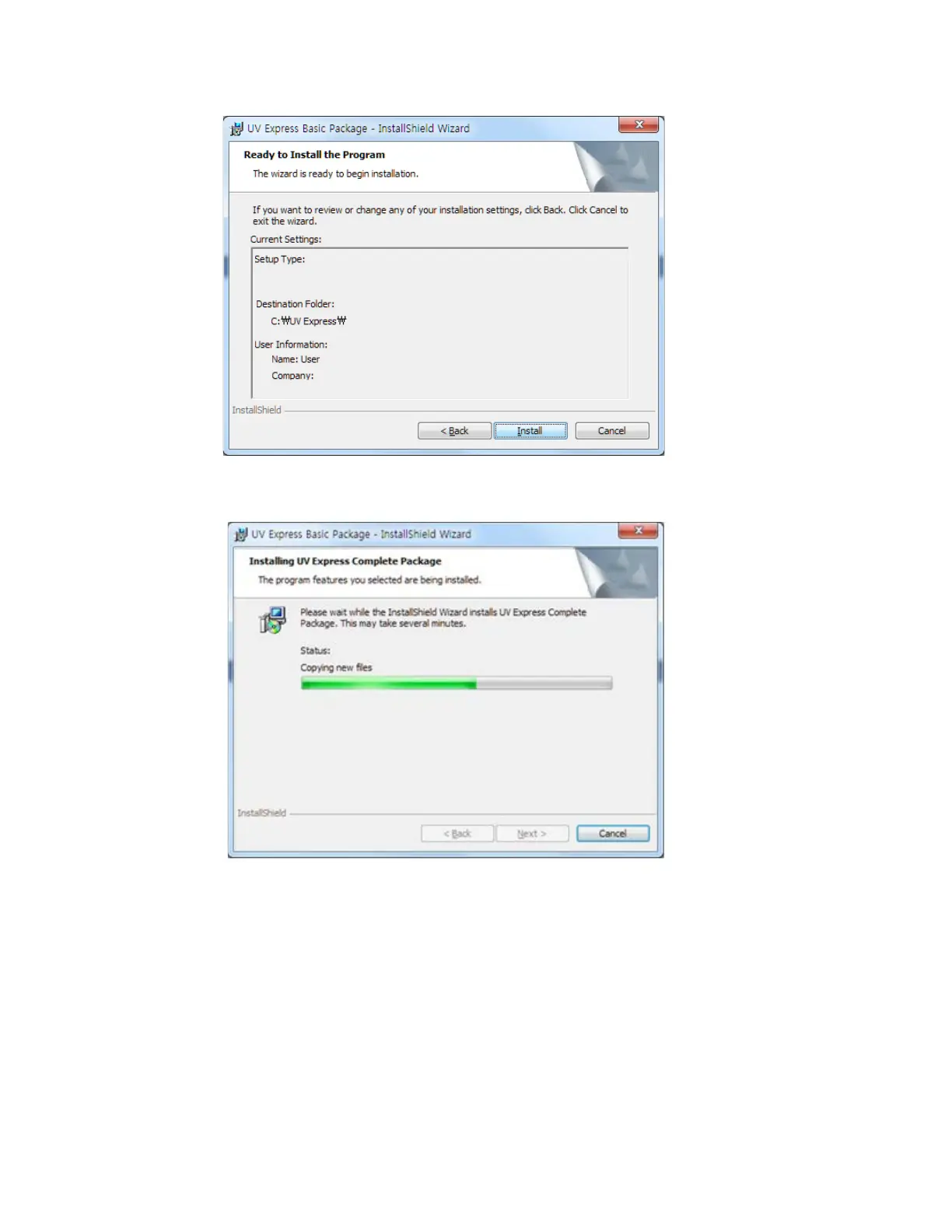

6. Verify the current settings and select Install.
7. The following window shows the status of the UV Express installation.

PerkinElmer Lambda 365 Specifications

General

Wavelength Range	190 - 1100 nm
Power Requirements	100-240 V AC, 50/60 Hz
Wavelength Accuracy	±0.3 nm
Wavelength Repeatability	±0.1 nm
Wavelength Reproducibility	±0.1 nm
Photometric Repeatability	±0.001 Abs
Baseline Flatness	±0.0005 Abs
Baseline Stability	<0.0003 Abs/hour (after warm-up)
Data Interval	0.1 - 5 nm
Light Source	Tungsten halogen lamp and deuterium lamp
Sample Compartment	Standard 10 mm cell holder
Detector	Silicon Photodiode
