Pfaff 1243 User Manual

Set-up and Initial Commissioning
24

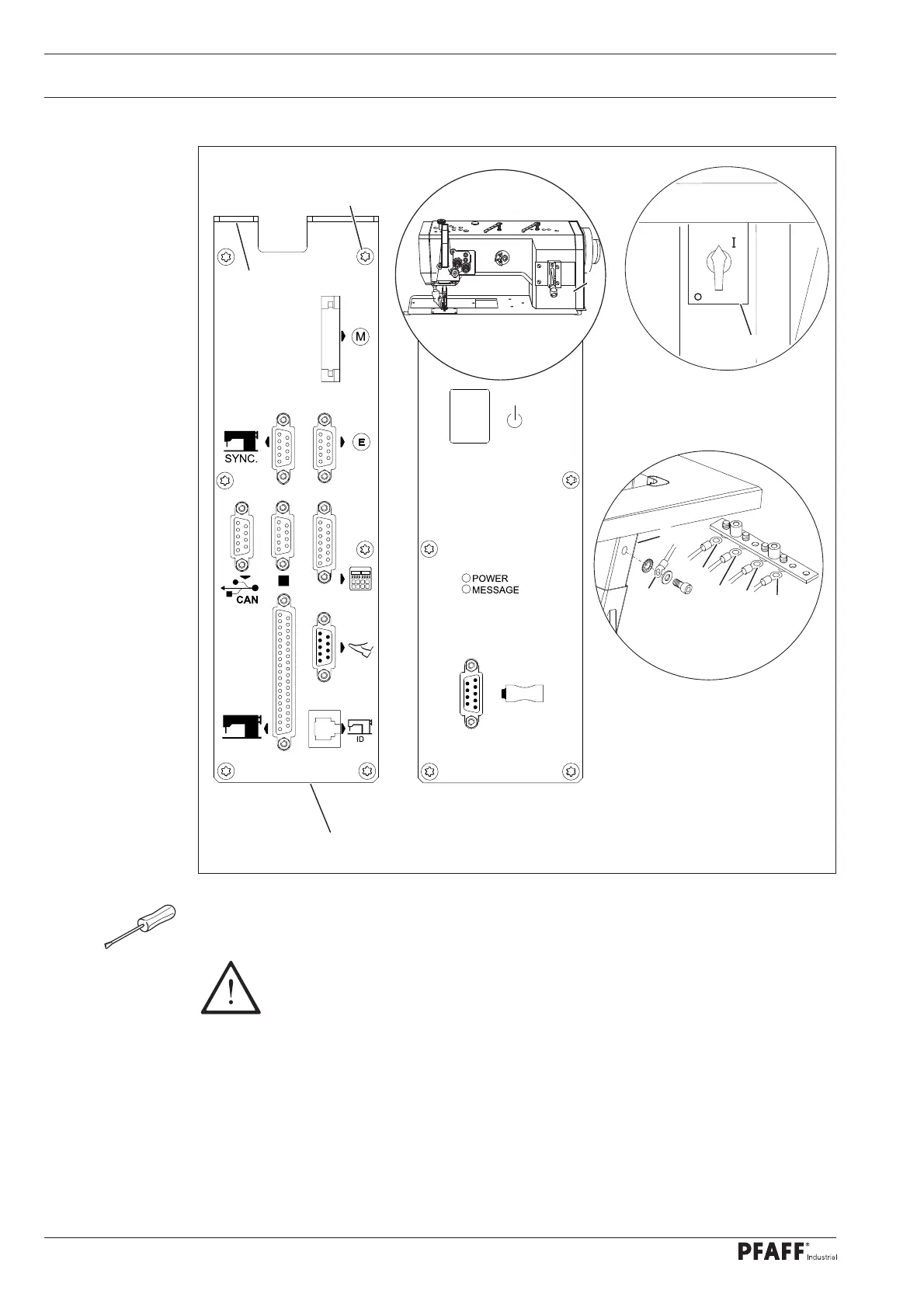

Fig. 8 - 09
8.02 Connecting the plug-in connections and ground cable
 Insert all plugs on the control box 2 in accordance with their designation.
 Insert the "motor" to the bushing E and the bushing M.
Caution
Inserting the plug incorrectly can damage the control unit!
 Attach the following ground cables in order to discharge static electricity.
 Securely attach the ground cable from the sewing head 1 to ground point A.
 Securely attach the ground cable from control point B to ground point B.
 Securely attach the ground cable from the main switch 3 to ground point C.
 Securely attach the ground cable from the stand 4 to ground point D
 Securely attach the ground cable from the motor cable M to ground point E
B
2
1
2
3
0
1
0
3
A
B
C
D
4
D
E
