Set-up
27
9 Set-up
Observe and comply with all regulations and instructions in this instruction
manual. Pay particular attention to all safety regulations!
All set-up work may only be carried out by appropriately instructed personnel.
Disconnect the machine from the electricity mains for all set-up work by
operating the main switch or by removing the mains plug!
9.01 Inserting the needle

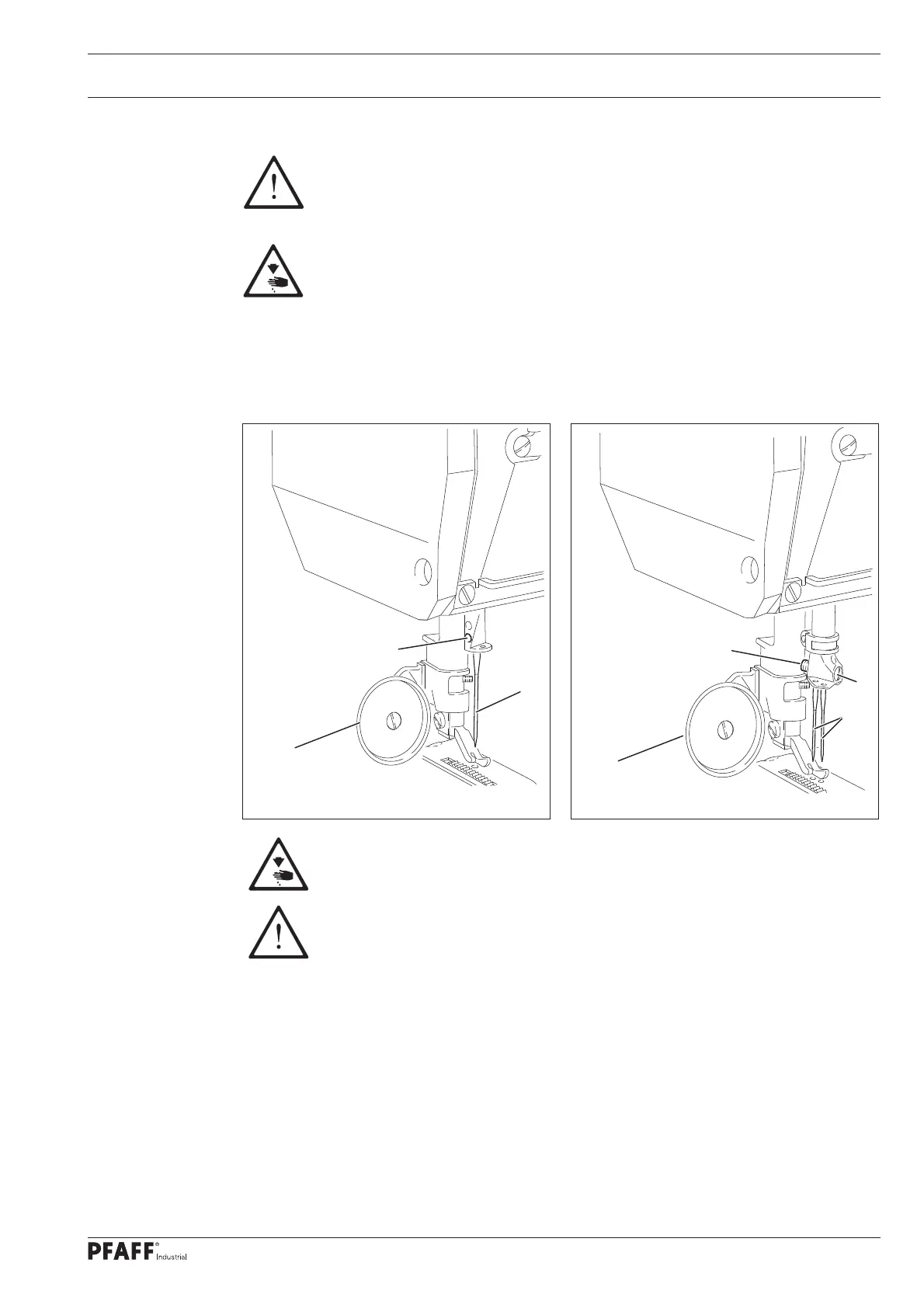

Fig. 9 - 01
2
1
Fig. 9 - 02
2
1
Switch off the machine!
Risk of injury due to accidental machine start-up!
Only use needles of the system intended for the machine, see Chapter 3
Technical Data!
PFAFF 1244
 Raise and fold out the roller presser 3.
 Bring the needle bar to the top position.
 Loosen the screws 1 and insert the
needles 2 until you feel them stop.
The long groove of the left needle must
point to the right and that of the right
needle must point to the left.
 Tighten the screws 1.
PFAFF 1243
 Raise and fold out the roller presser 3.
 Bring the needle bar to the top position.
 Loosen the screw 1 and insert the
needle 2 until you feel it stop.
The long groove must point to the left.
 Tighten the screw 1.
3
3
1
