8 - 2
Installation and commissioning

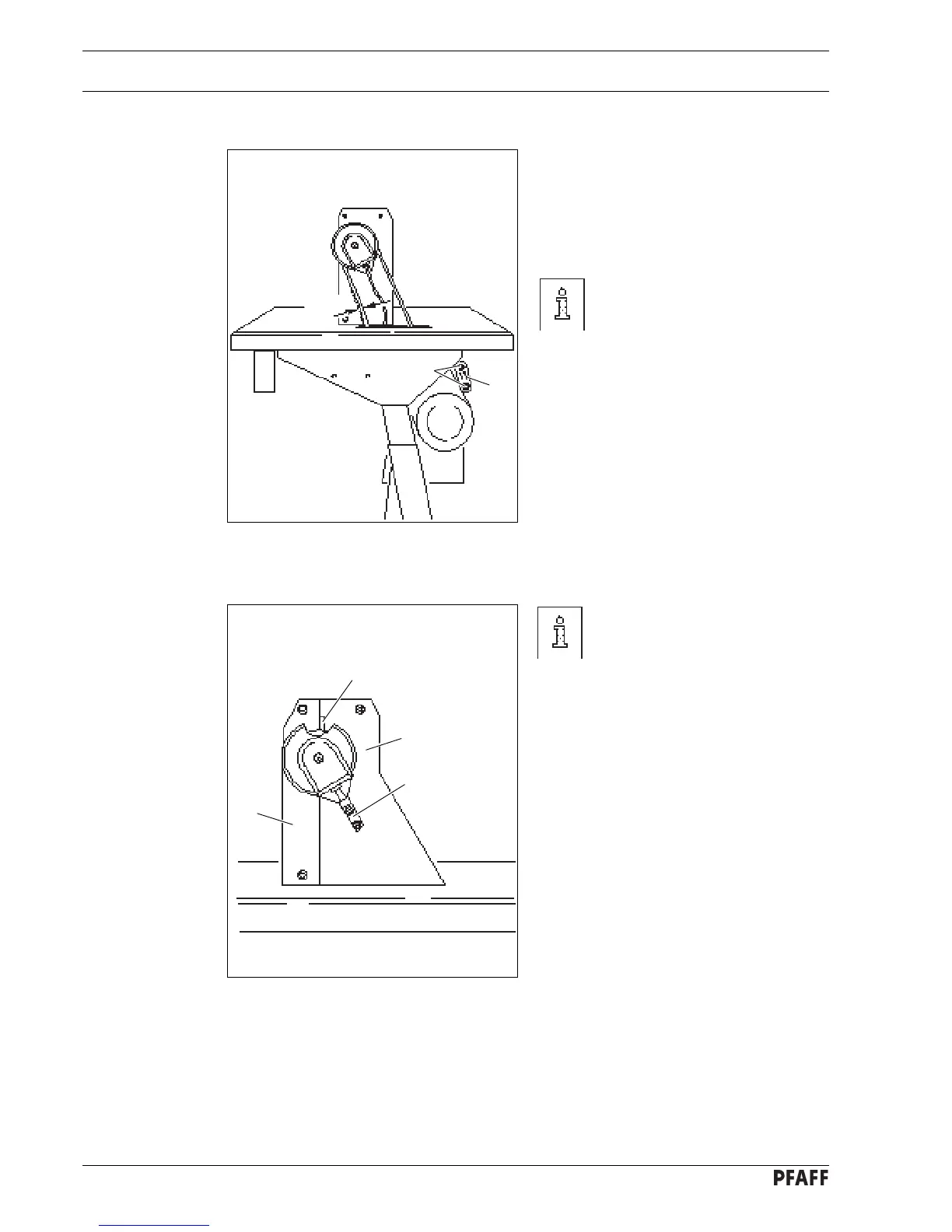

8.01.03 Mounting the upper V-belt guard
If a large balance wheel is used,
the corner 1 of the belt guard 3
must be broken out.
● Screw position stop 2 to the belt guard
section 3.
● Attach belt guard section 3.
● Attach belt guard section 4.
8.01.02 Adjusting the V-belt tension
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hangar 2.
● Tighten nuts 2.
Fig. 8-02 shows a Quick motor.
If another motor is used,
proceed as described in the
motor’s instruction manual.
Fig. 8 - 02
Fig. 8 - 03
1
2
2 cm
2
4
3
1
