11.04.04 Centering the needle in the needle hole (for the PFAFF 242 and 1242)
Requirement
With the stitch length set at „ 0“ , the needle must enter the needle hole exactly in the middle.

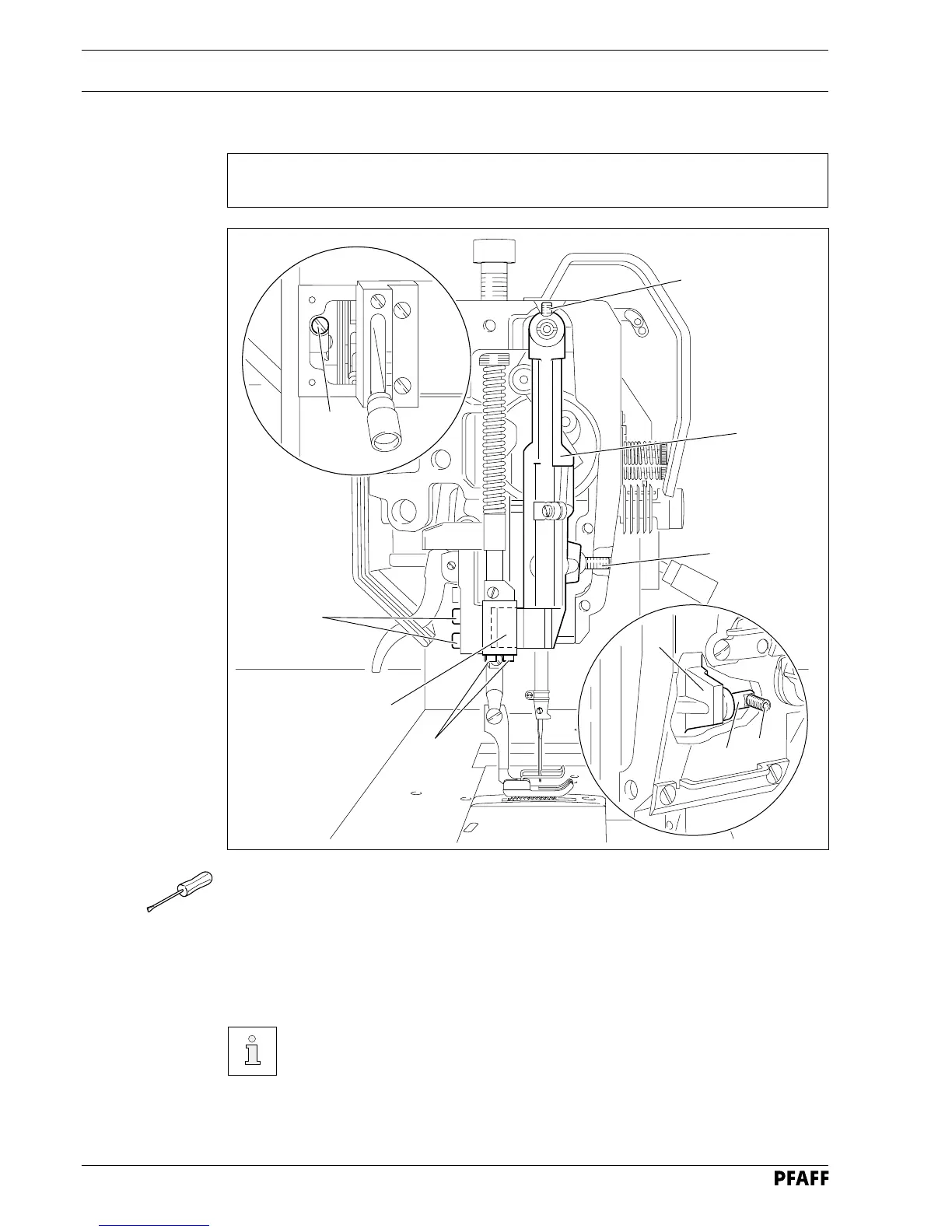

Fig. 11 - 04
● Set stitch length „ 0“ and bring the needle bar to its TDC.
● Loosen screws 1, 2, 3, 4.
● Position the needle directly above the feed dog by turning the balance wheel.
● Position needle bar frame
55
55
5 in accordance with the requirement.
● Tighten screws 1, 2, 3.
● Position stop 6 so that it is touching needle bar frame 5 and tighten screw 4.
The movement of the needle bar frame 5 in guide 7 must not bind. Any binding
should be removed after loosening the screws 8.
