This connection is required if you want to make recordings
from an external CD player with a digital coaxial output.
1 For external recording, connect the cord 3 between the
DIGITAL IN-jack on the set and the DIGITAL OUT-jack of an
external CD player.
Note: Your set is equipped with a digital coaxial output
(common output for CD recorder & CD changer deck).
This output can be used for digital playback. (e.g.
Philips receiver FR960 or FR970.)
This connection is required if you want to make recordings
from an external CD player with a digital optical output.
When connecting the Digital
Optical cord, make sure it
is fully inserted until
there is a click.
1 Remove the dust caps from the digital optical connection.
(We recommend you save the cap.)
2 For external recording, connect a fibre-optic cord 4
between the digital optical input of the set and the digital-
optical output of an external CD player.
Note: For playback, the digital coaxial outputs or analog
outputs of the CD Changer and CD recorder should be
connected to an amplifier.
DIGITAL
I
N
O
U
T
ANALOG
DIGITAL
IN
O
U
T
OPTICAL
IN
L
R
TAPE/CDR
I
N
O
U
T
I
N
O
U
T
OPTICAL
OUT
1
4
RECEIVER/AMPLIFIER
CD RECORDER
CD PLAYER
2

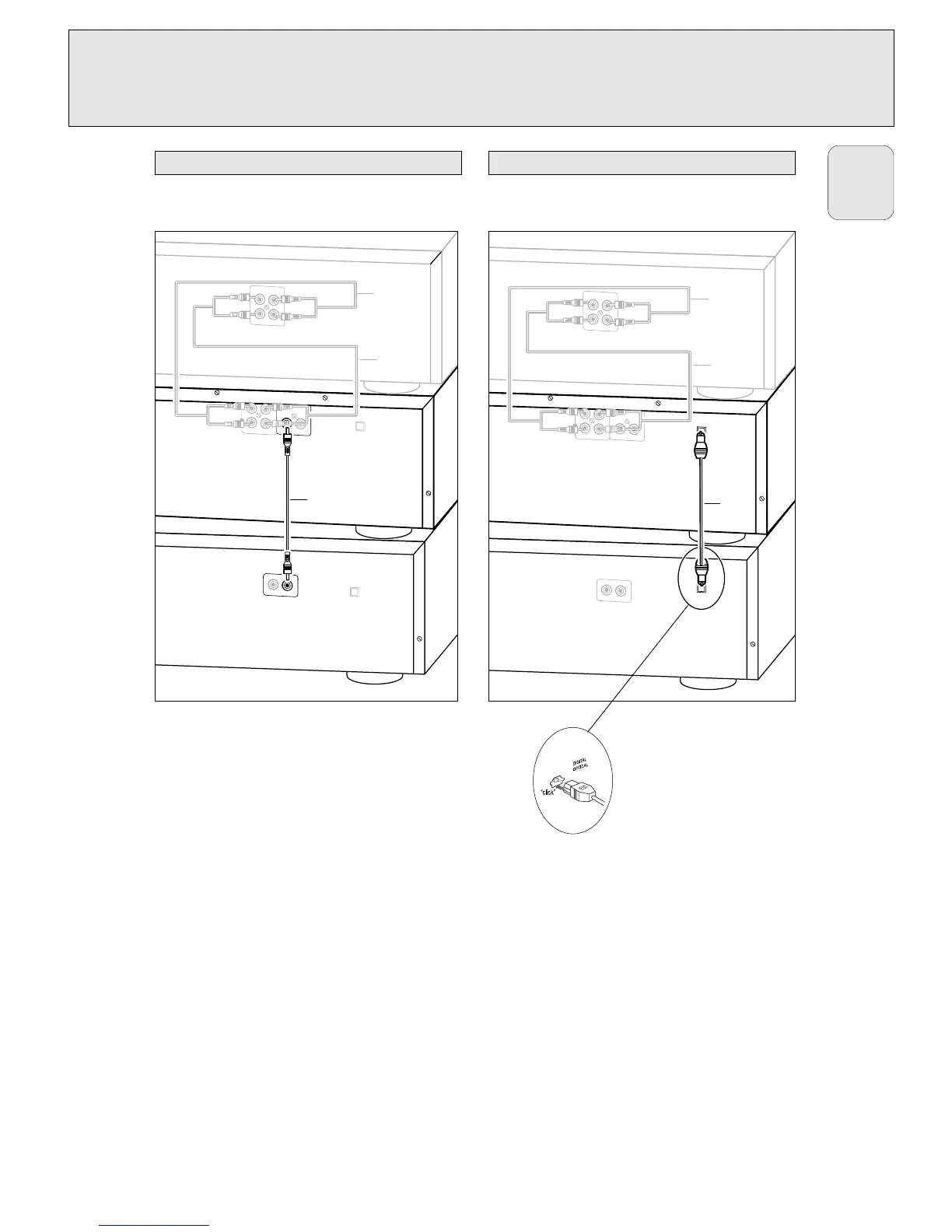

Digital optical connections
DIGITAL
I
N
O
U
T
ANALOG
DIGITAL
IN
O
U
T
OPTICAL
IN
L
R
TAPE/CDR
IN
O
U
T
I
N
O
U
T
OPTICAL
OUT
1
3
RECEIVER/AMPLIFIER
CD RECORDER
CD PLAYER
2
Digital coaxial connections
INSTALLATION
15
English
