Philips DVP5990 User Manual

English
13

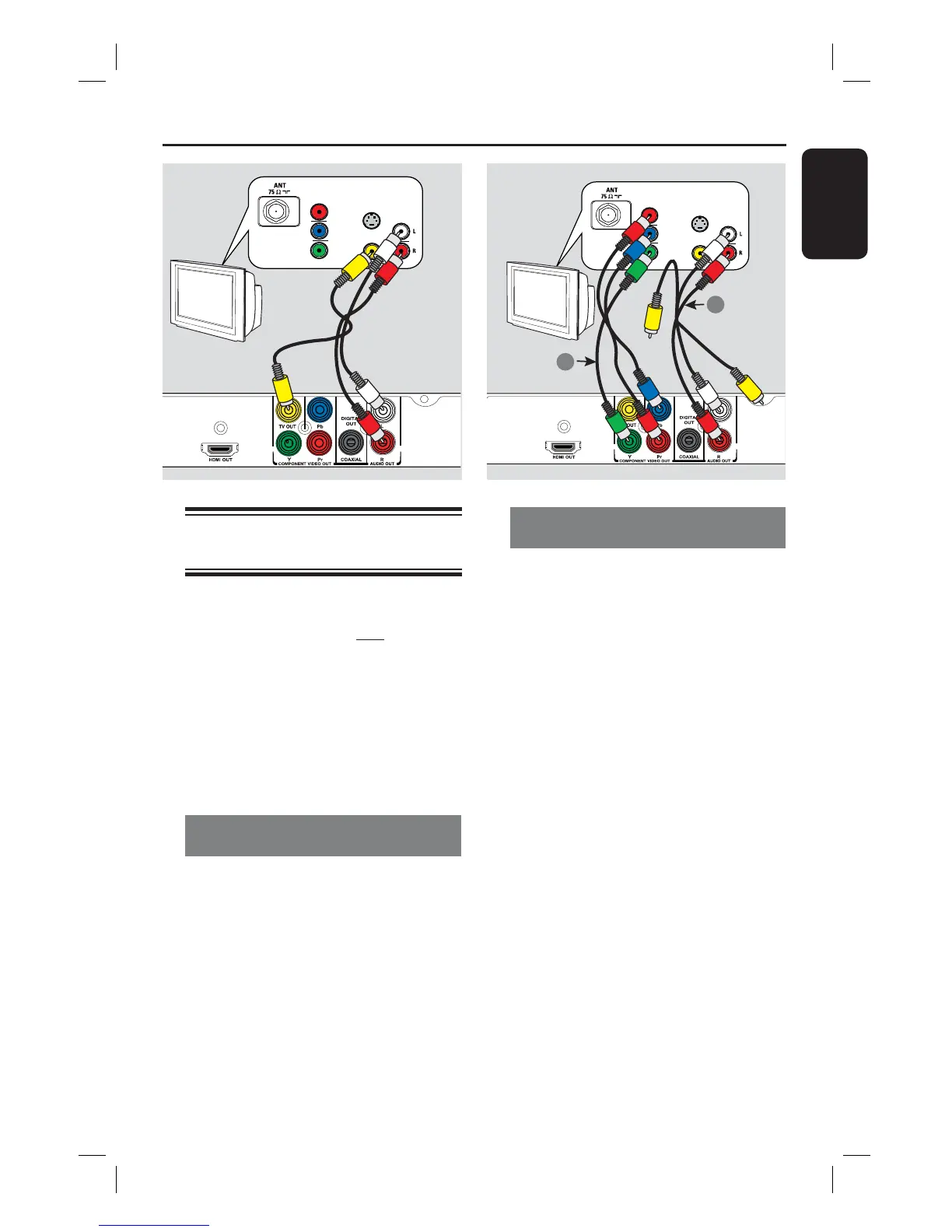

Option 2: Using Component Video
jacks (Y Pb Pr)
You can connect this unit to a TV
through the component video cables
which provides superior picture quality.
The progressive scan video quality is only
available when using Y Pb Pr connection
and a progressive scan TV is required.
A Connect the component video cables
(red/blue/green - not supplied) from the
Y Pb Pr jacks on this unit to the
corresponding component video input
jacks (or labeled as Y Pb/Cb Pr/Cr or
YUV) on your TV.
B Connect the audio/video cable (red/white
- supplied) from the AUDIO OUT L/R
jacks on this unit to the audio input jacks
(red/white) on your TV. Leave the yellow
video cable disconnected.
C Proceed to ‘Getting Started - Setting up
Progressive Scan feature’ for detailed
progressive feature setup.
Basic Connections
Step 1: Connecting to
television
This connection enables you to view the
video playback from this unit.
You only need to choose one of the
options below to make the video
connection.
– For a standard TV, follow option 1.
– For a progressive scan TV, follow
option 2.
– For a HDMI TV, follow option 3.
– For TV with only a single antenna
input jack, follow option 4.
Option 1: Using Composite Video
jacks (CVBS)
You can connect this unit to a TV
through the composite video cable which
provides good picture quality.

Connect the audio/video cables (supplied)
from the TV OUT and AUDIO OUT
L/R jacks on this unit to the video input
jack (yellow) and audio input jacks (red/
white) on your TV.
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
TV
Audio
(red/white cables)
Video
(yellow cable)
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
TV
2
1
Video
Audio
dvp5990_5992_37_Eng1.indd 13dvp5990_5992_37_Eng1.indd 13 2008-03-10 10:47:21 AM2008-03-10 10:47:21 AM

Philips DVP5990 Specifications

Power

power supply frequency	50Hz
power supply voltage	230V
power consumption	< 12 W
standby power consumption	< 1.0 W

Sound

D/A converter	24 bit, 192 kHz
signal to noise ratio	> 90
distortion and noise (1kHz)	> 65 dB
crosstalk (1kHz)	> 70 dB
dynamic range (1kHz)	> 80 dB
frequency response	30-20000 Hz

Picture and Display

D/A converter	12 bit, 108 MHz
picture enhancement	Progressive scan, High Def (720p, 1080i, 1080p), Video Upscaling (720p, 1080i/p)

Weight and Dimensions

set dimensions	435 x 38 x 210 mm
packaging dimensions	490 x 82 x 296 mm
set weight	1.4 kg
