4 5

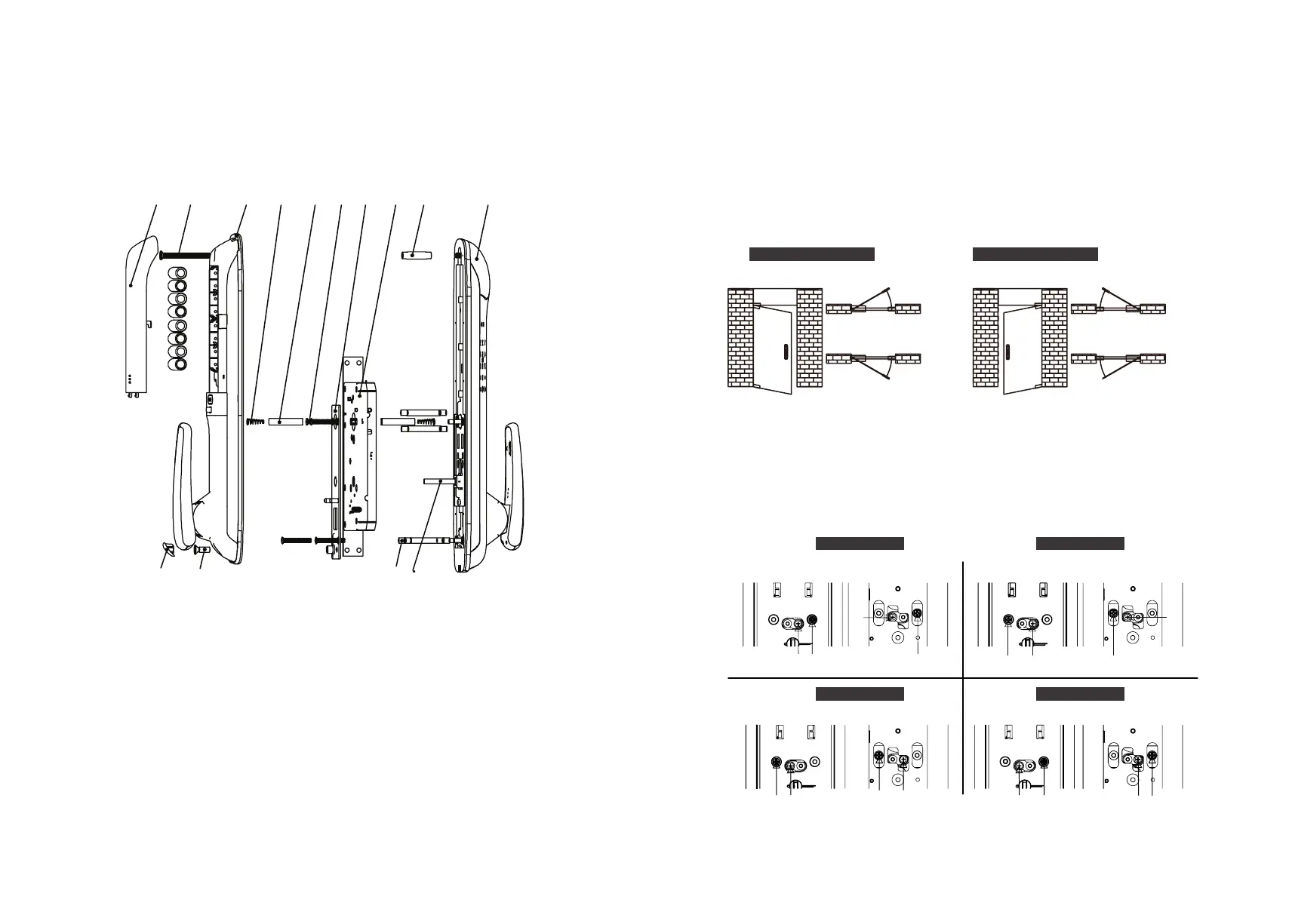

Exploded Views
1 2 3 4 5 6 7 8 9 10
11 12 13 14
1. Battery cover (x1)
2. M6 chamfer
head screw (x1)
3. Inside escutcheon
component (x1)
4. Compressed
spring (x2)
5. Square shaft (x2)
6. M5 chamfer
head screw (x4)
7. Mounting plate (x1)
8. Mortise (x1)
9.M6 screw tube (x1)
10. Outside
escutcheon
component (x1)
11. Rubber plug (x1)
12.M6 x 18 chamfer
head screw (x1)
13. M5 screw tube (x4)
14. Cylinder key
tailpiece (x1)
Pre-installation instructions
Step 1 | Check the door opening direction
This product can be installed on doors of 4 types of opening directions:
left-out pull, right-in push, right-out pull and left-in push.
Step 2 | How to switch between push and pull
Please x the screws in proper locations according to the door opening
direction.
Left-in
push
Right-
in push
Indoor Indoor
Indoor Indoor
Outdoor
Outdoor
Outdoor Outdoor
Left-
out pull
Right-
out pull
Outside escutcheon
Outside escutcheon
Outside escutcheon
Outside escutcheon
Inside escutcheon
Inside escutcheon
Inside escutcheon
Inside escutcheon
Left-handle open
Right-in push
Right-out pull
Left-in push
Left-out pull
Right-handle open
Screw
Screw Screw Screw Screw
Right pull
Left push
Right pull
Left push
Right push
Left pull
Right push
Left pull
Right pull
Left push
Right push
Left pull
Right pull
Left push
Right push
Left pull
Right pull
Left push
Right push
Left pull
Right push
Left pull
Right pull
Left push
Right push
Left pull
Right pull
Left push
Right push
Left pull
Screw Screw Screw
Screw
Screw
pull
pull
pull
pull
pull
pull
pull
pull
push
push
push
push
push
push
push
push
Right pull
Left push
