03_16
03_17
03_18

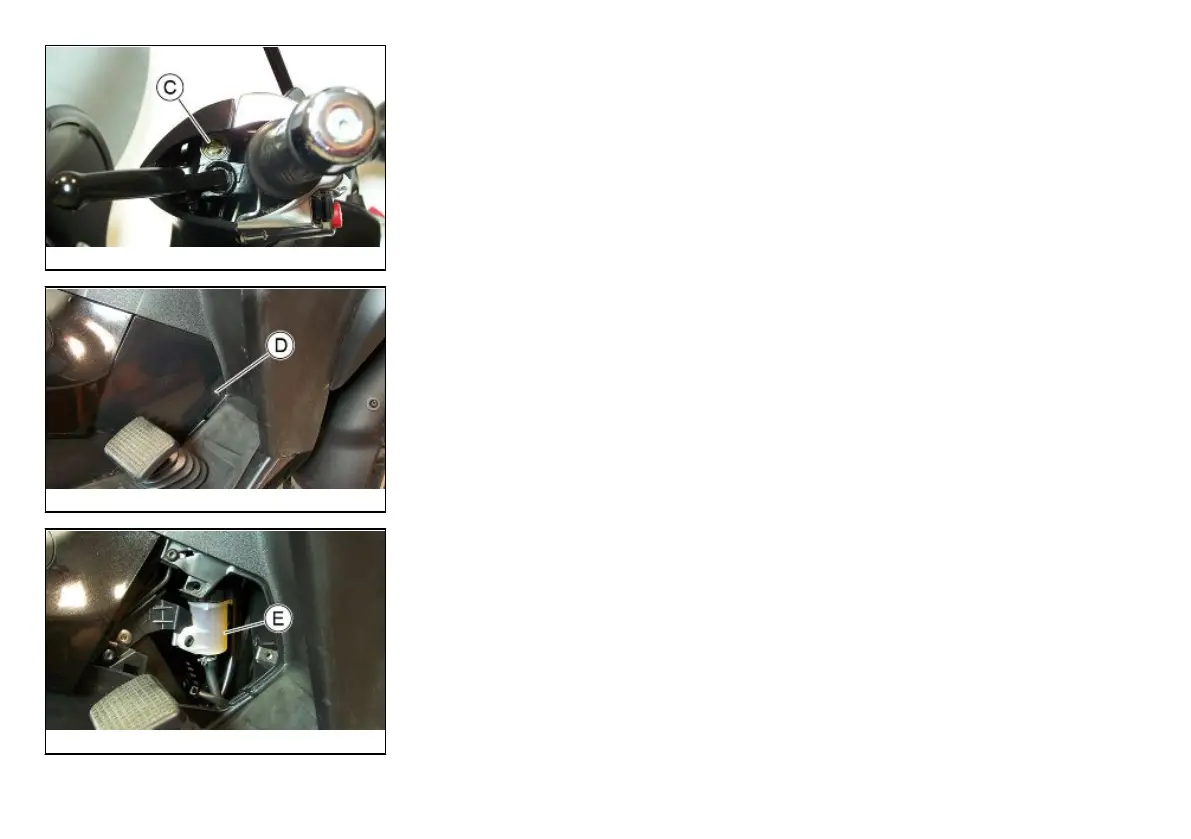

Checking the brake oil level (03_16, 03_17, 03_18)
The front and rear brake fluid reservoirs are both positioned on the handlebar. Proceed
as follows:
1. Rest the vehicle on its centre stand with the handlebars perfectly horizontal;
2. Check the liquid through the sight glass «C».
To check the integral braking system fluid level, remove the cover on the right hand
side of the footrest, undoing the screw «D» and check the brake fluid level in the
reservoir «E».
A certain lowering of the level is caused by wear on the brake pads. Should the level
appear to be below the minimum mark, please contact an Authorised Service Centre
or Dealer in order to have the braking system thoroughly checked.
79
