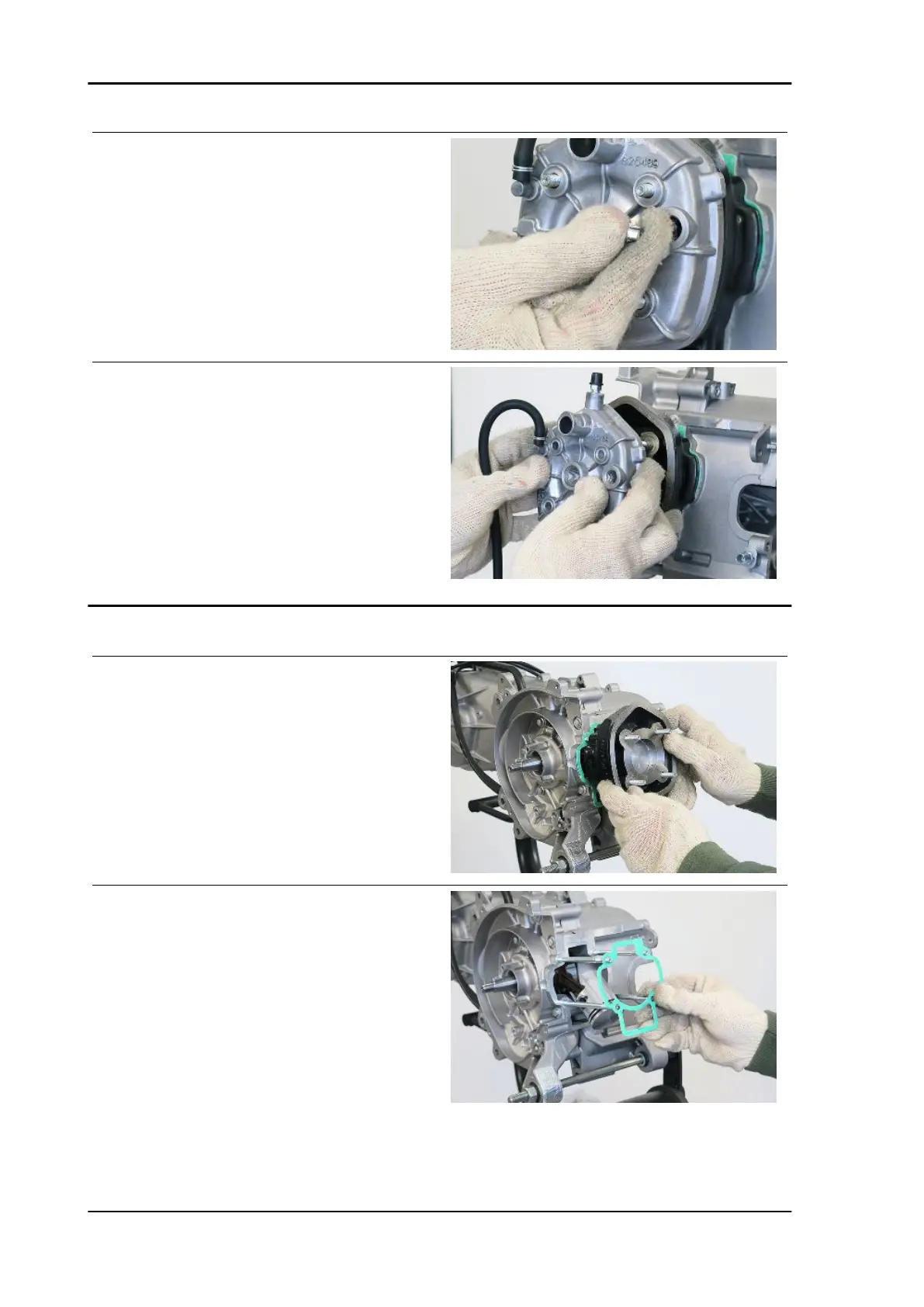

- Remove the head fixing nuts.
- Remove the cylinder head.
Removing the cylinder - piston assy.
- Remove the cylinder head.
- Remove the cylinder, taking care to support the
piston.
- Remove the cylinder base gasket.
Engine
NRG 50
ENG - 128
