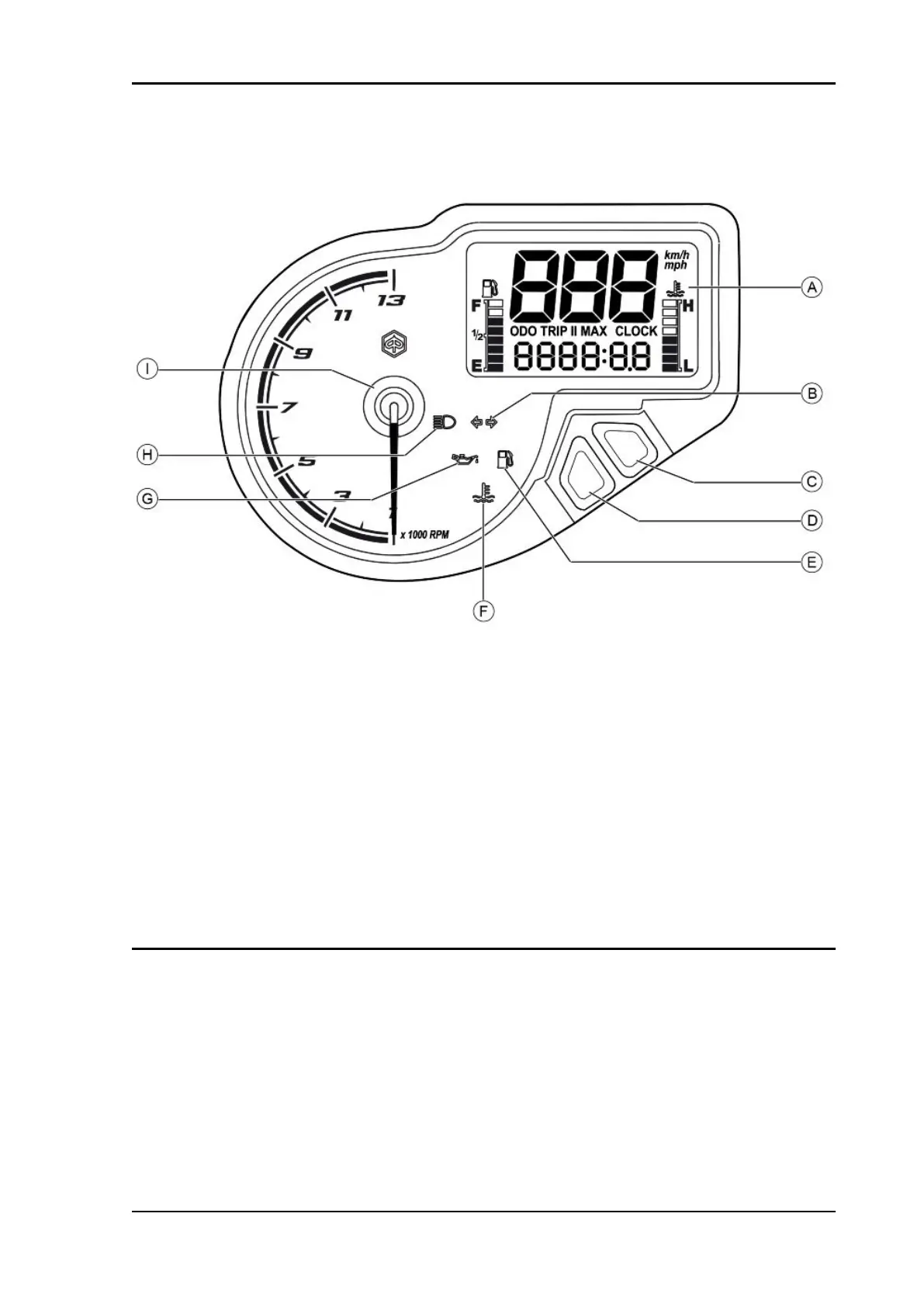

Instrument panel
Key:
A
= Digital display
B
= Turn signal indicator lamp
C
= SET button
D
= MODE button
E
= Low fuel warning light
F
= Maximum coolant temperature warning light
G
= Low mixer oil warning light
H
= High-beam warning lights on
I
= Rev counter
NRG 50
Electrical system
ELE SYS - 55
54
56
Table of Contents
Index of Topics
5
Functional Inspection
9
Safety Rules
11
Maintenance Rules
11
Vehicle Identification
12
Engine Identification Number
12
Engine Data
12
Engine Specifications
12
Dimensions and Mass
13
Engine Unit
14
Cylinder-Piston Fitting
16
Sealing Rings
16
Maintenance
30
Maintenance Chart
31
Scheduled Maintenance Table
31
Recommended Products
31
Spark Plug
33
Air Filter
36
Braking System
39
Level Check
39
Headlight Adjustment
40
Index of Topics
43
Troubleshooting
43
Electrical System
45
Instrument Panel
55
Front Side
56
Back Side
58
Checks and Inspections
58
Fuse Chart
59
Battery Installation
60
Index of Topics
76
Engine from Vehicle
76
Index of Topics
95
Automatic Transmission
96
Transmission Cover
96
Removing the Clutch
103
Removing the Driving Pulley
108
Flywheel Cover
121
Removing the Stator
121
Removing the Starter Motor
123
Removing the Intake Manifold
127
Removing the Cylinder Head
127
Removing the Piston
131
Crankcase - Crankshaft
136
Removing the Crankshaft
138
Oil Pump
145
Fuel Supply
146
Removing the Carburettor
147
Index of Topics
156
Front Suspension
157
Rear Suspension
157
Steering Assembly
157
Removing the Front Wheel
157
Refitting the Front Wheel
160
Front Fork
164
Steering Bearing
173
Removing the Rear Wheel
180
Refitting the Rear Wheel
181
Shock Absorbers
187
Centre-Stand
189
Index of Topics
191
Front Brake
192
Rear Brake Calliper
192
Front Brake Calliper
195
Rear Brake Disc
197
Disc Inspection
199
Front Brake Disc
200
Front Brake Pads
202
Rear Brake Pads
204
Front Brake Pump
209
Index of Topics
215
Cooling System
215
Radiator Removal
216
Water Pump - Overhaul
220
Front Handlebar Cover
230
License Plate Light
240
Side Fairings
245
Rear Mudguard
252
Front Mudguard
263
Expansion Tank
264
Radiator Cover
269
Lower Cover
272
