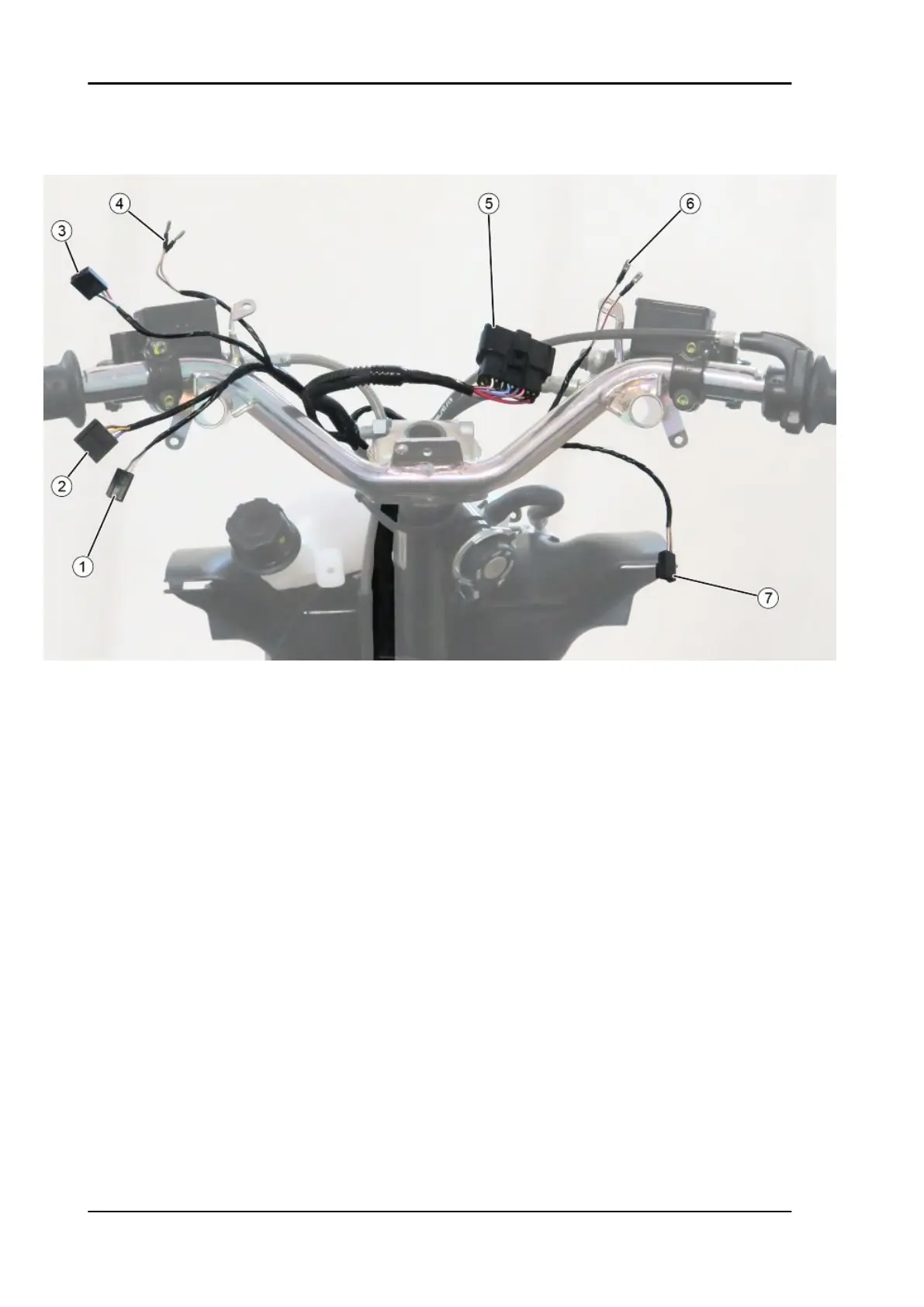

Front side
1. Horn connector.
2. Turn indicators switch connector.
3. Light switch connector
4. Rear brake stop switch connector.
5. Instrument panel connector.
6. Front brake stop switch connector.
7. Starter button connector.
Electrical system NRG 50
ELE SYS - 56
