Fuses (03_27)

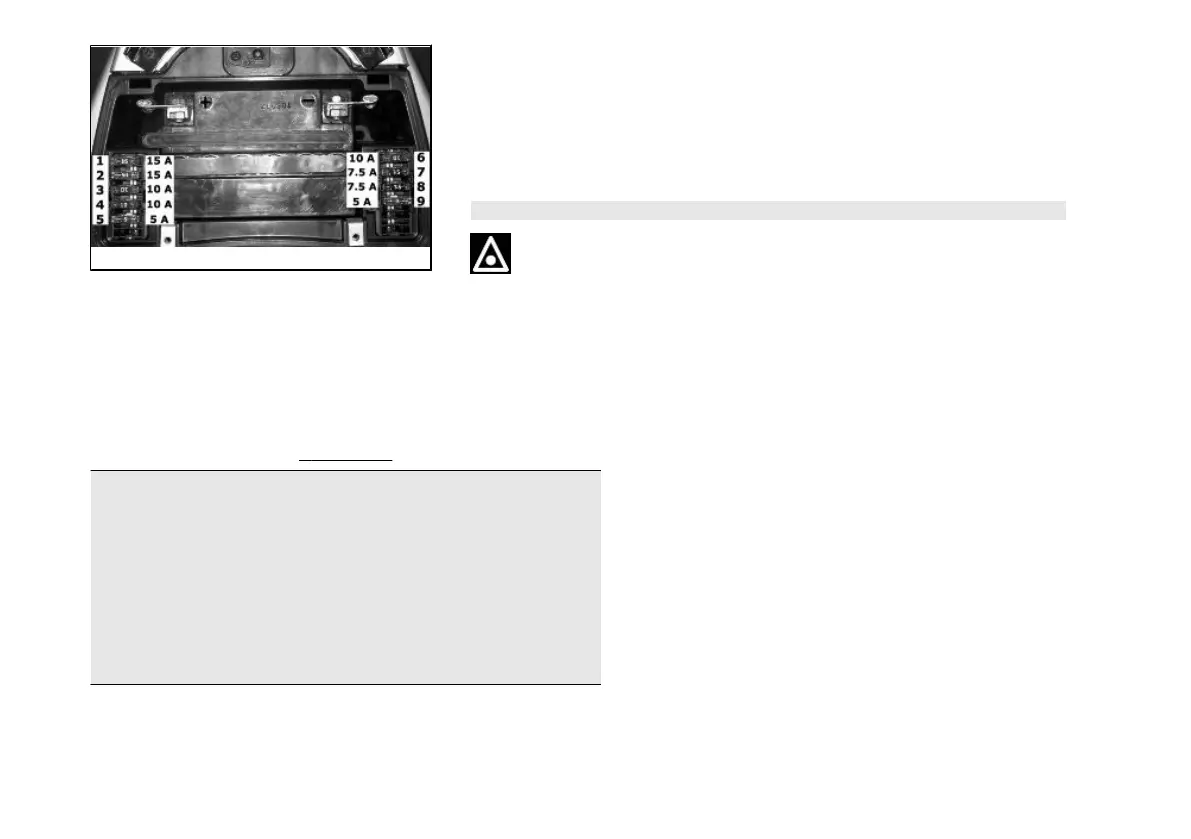

Protection of the various circuits comprising the electrical system is provided by a total
of nine fuses, distributed among two fuse-holders, both located inside the battery
compartment.
The table below shows the location and specifications of each of the fuses equipping
the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).
FUSE TABLE
Fuse No. 1 Position on fuse holder:1
Capacity: 15A
Protected circuits: Socket
12V-180W for users - Helmet
compartment light- Glove-box/seat
open light
Location:Battery compartment
(on LHS)
Fuse No. 2 Position on fuse holder: 2
Capacity: 15A
56
3 Maintenance
