Pioneer A-70-K User Manual

Controls and displays 03
9
En
English
DeutschFrançais
Nederlands
Italiano Español Русский

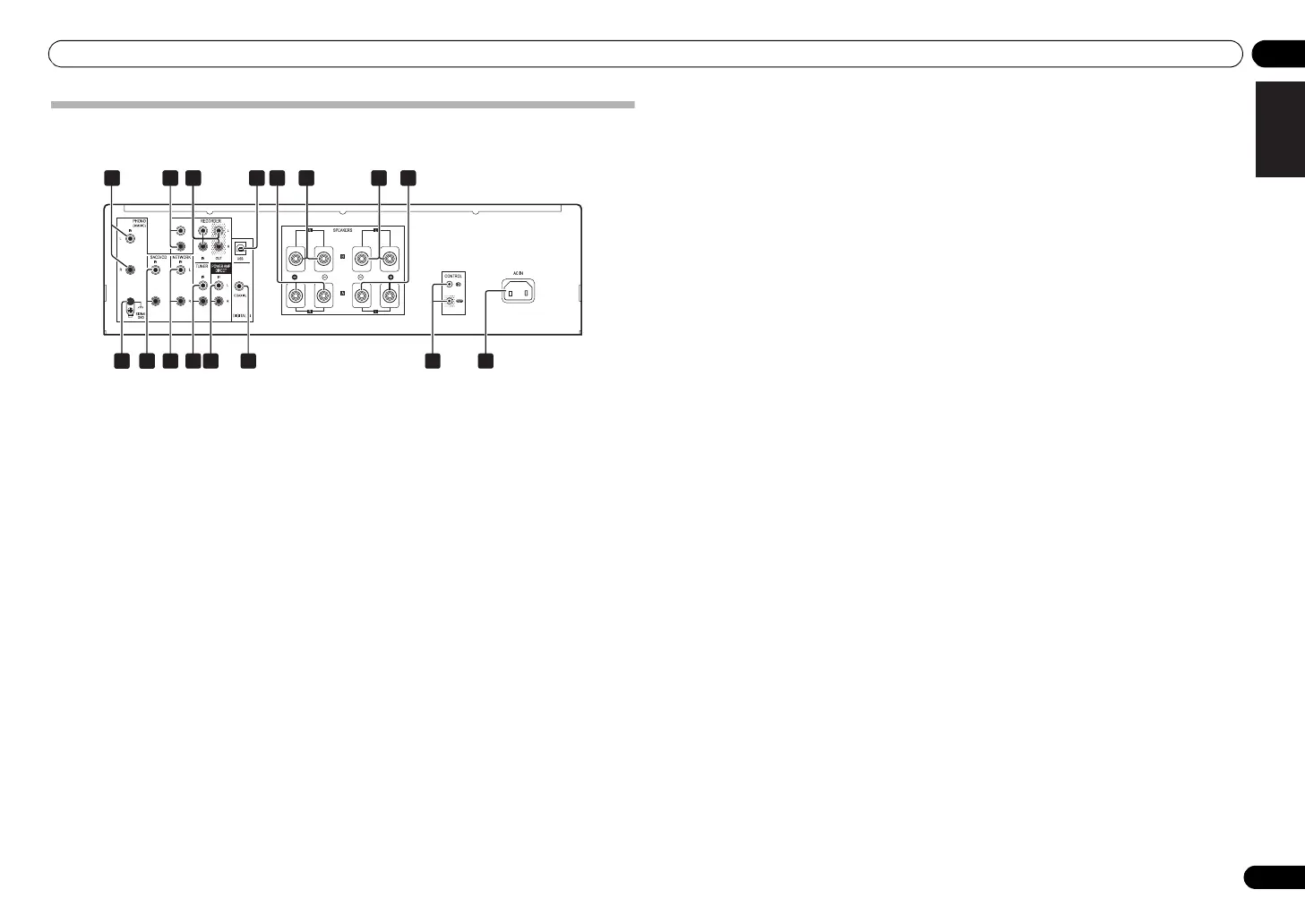

Rear panel
See pages 5-7 for details regarding connections.
1 PHONO IN (MM/MC) terminals (A-70)
PHONO IN (MM) terminals (A-50)
2 AUX IN terminals (A-50 only)
3
RECORDER IN/OUT terminals
4
DIGITAL IN USB terminal (A-70 only)
5
SPEAKERS A terminals (Right channel)
6
SPEAKERS B terminals (Right channel)
7
SPEAKERS B terminals (Left channel)
8
SPEAKERS A terminals (Left channel)
9 GND (Turntable ground) terminal
This ground terminal is designed to help reduce noise
when a turntable is connected. It is not a safety ground.
10 SACD/CD IN terminals
11
NETWORK IN terminals
12
TUNER IN terminals
13
POWER AMP DIRECT IN terminals
When using the unit as a power amplifier, connect the
pre-amplifier here (page 11).
14 DIGITAL IN COAXIAL terminal (A-70
only)
15 CONTROL IN/OUT jack
16 AC IN jack
Connect power cord to here and an AC wall socket.
AUX IN
52221 2623 27 2824
2 10 11 12 13 1514 16 29
A70_SYXE8.book 9 ページ ２０１２年７月２７日 金曜日 午後６時５３分

Pioneer A-70-K Specifications

General

Amplifier class	D
Output impedance	32 Ω
Audio output channels	2.0 channels
Peak power per channel	180 W
Subsonic filter frequency	20 - 20000 Hz
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	0.5 %
Pre out port	Yes
Speaker selector	A+B
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Digital
Connectivity technology	Wired
AC input voltage	220-230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	74 W

Weight and Dimensions

Depth	361.5 mm
Width	435 mm
Height	141.5 mm
Weight	17100 g
