Pioneer BDP-120 User Manual

Introduction to Connections
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing
connections.

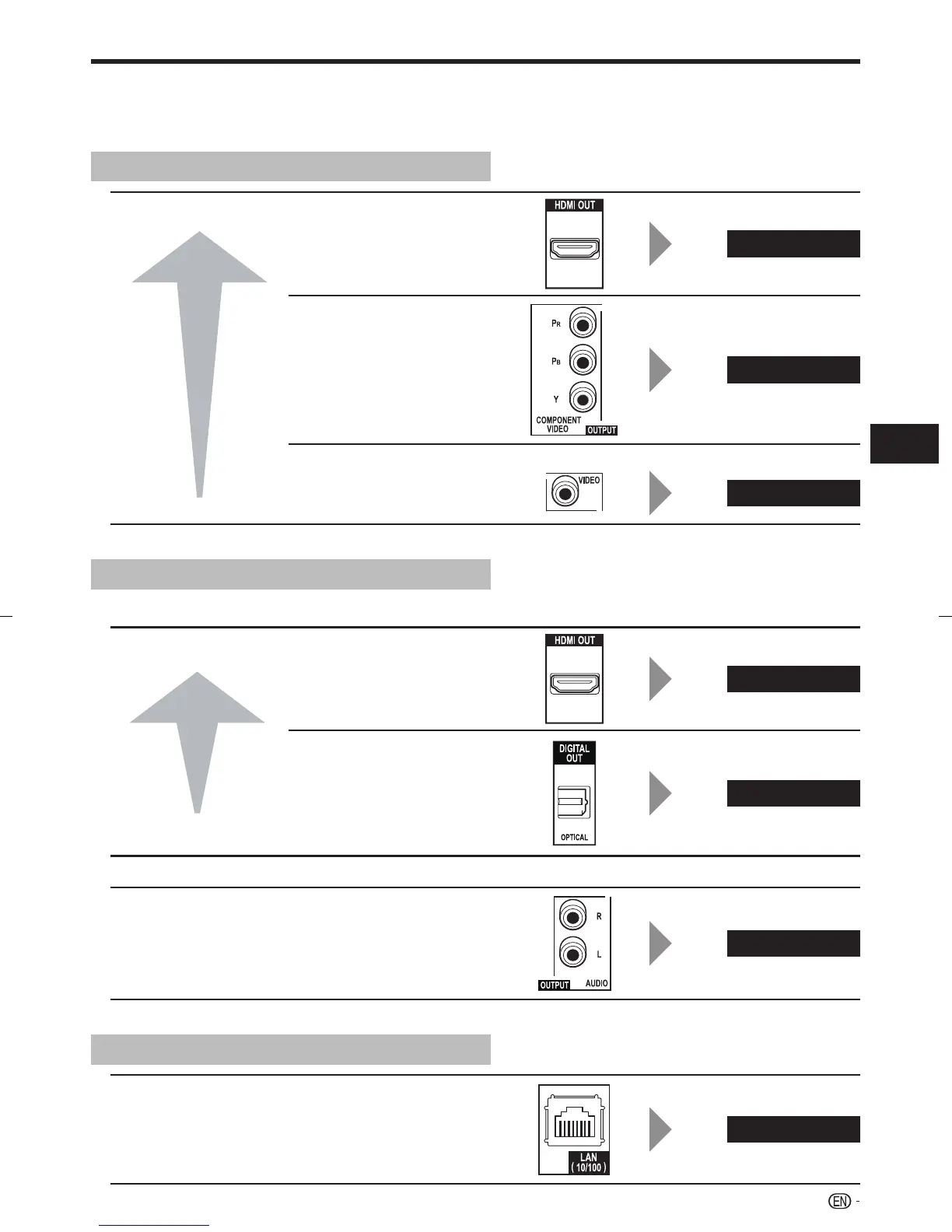

This Player is equipped with the terminals/jacks listed below. Find the corresponding terminal/jack on
your video equipment. Using the supplied cable or commercially available cables, connect the video first. Then
connect the audio.
Video terminals/jacks on this Player
Higher Quality
Standard Quality
HDMI OUT terminal1
Page 14
COMPONENT VIDEO
OUTPUT jacks
2
Page 15
VIDEO OUTPUT jack3
Page 16
Audio terminals/jacks on this Player
Digital audio connection
Higher Quality
Standard Quality
HDMI OUT terminal1
Page 14
DIGITAL OUT OPTICAL
terminal
2
Page 17
Analog audio connection
Standard Quality
AUDIO OUTPUT jacks
Page 17
Broadband Internet connection
LAN terminal
Page 18
Connection
13
Connection

Pioneer BDP-120 Specifications

Power

power requirements	120 V 60 Hz

Weight and Dimensions

product weight	6 lbs. 10 oz. (3 kg)
width	16-9/16 inches (420 mm)
height	2-15/16 inches (58 mm)
depth	10-9/16 inches (268 mm)
