Pioneer BDP-120 User Manual

Audio Connections

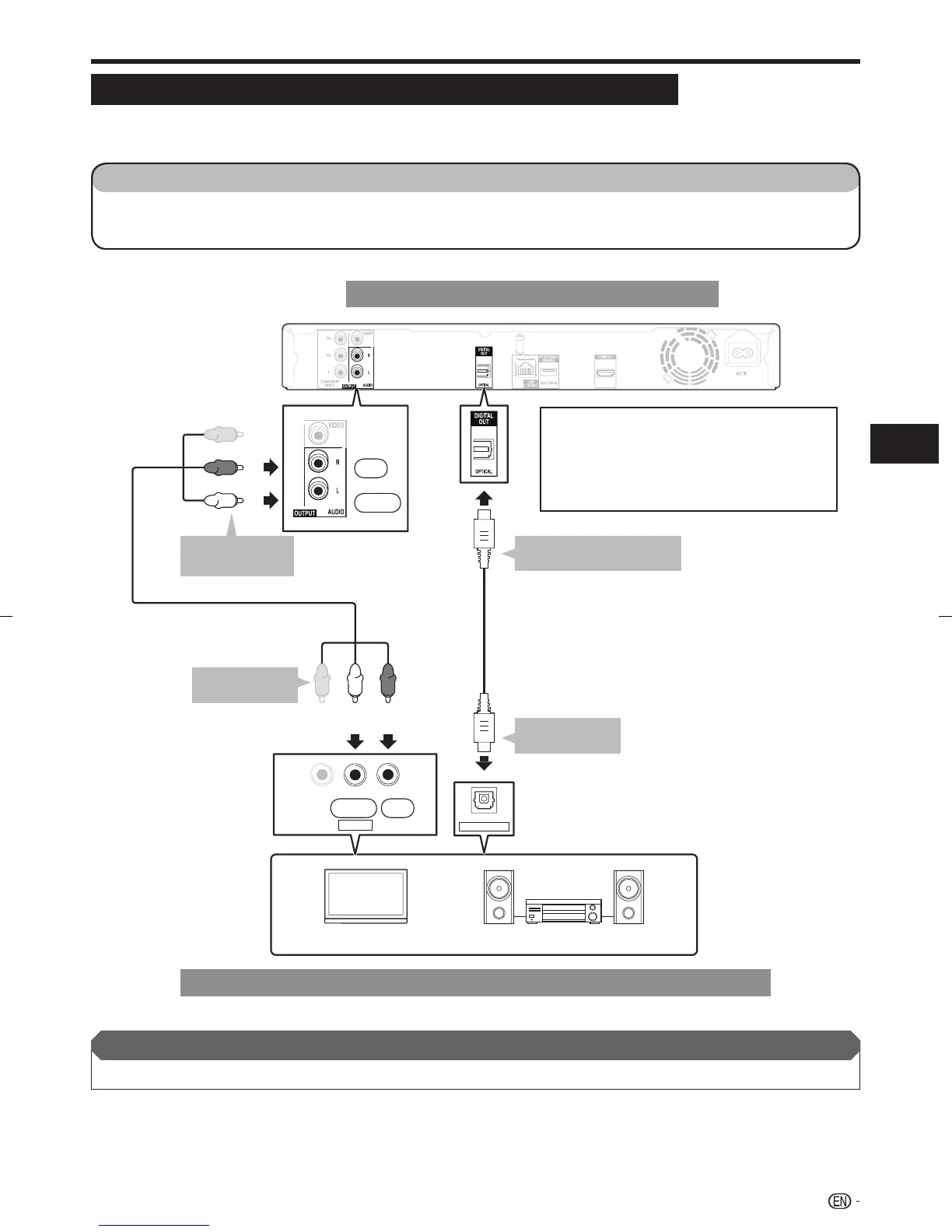

Connecting to the Digital Audio Terminal or Audio Jacks
You can connect audio equipment or the TV to the DIGITAL OUT OPTICAL terminal or AUDIO OUTPUT jacks.
See page 45 for information on the output of next generation audio formats.
•
•
OPTICAL
DIGITAL AUDIO IN
VIDEO L - AUDIO -R
AV INPUT
This Player
Audio equipment with a digital audio input terminal
17
Connection
STEPS
Be sure to turn off this Player and the equipment before making any connections.
Firmly connect an optical digital cable (commercially available) or AV cable (supplied) to the optical digital audio
terminals or audio jacks (1 and 2, or 3 and 4).
1
2
After connecting
Load a disc and start playback. (Pages 24–29)•
To DIGITAL OUT OPTICAL
terminal
Optical digital cable
(commercially available)
1
To OPTICAL
input terminal
2
Amplifier
When using OPTICAL output,
5.1 ch Digital Output is available.
7.1 ch Digital Output is not available.
NOTE:
7.1 ch Audio is available via the HDMI terminal.
•
TV
To AUDIO OUT
jacks
To AUDIO input
jacks
(White)
AV cable (supplied)
3
(Red)
4
(White) (Red)
Red
White
RedWhite

Pioneer BDP-120 Specifications

Power

power requirements	120 V 60 Hz

Weight and Dimensions

product weight	6 lbs. 10 oz. (3 kg)
width	16-9/16 inches (420 mm)
height	2-15/16 inches (58 mm)
depth	10-9/16 inches (268 mm)
